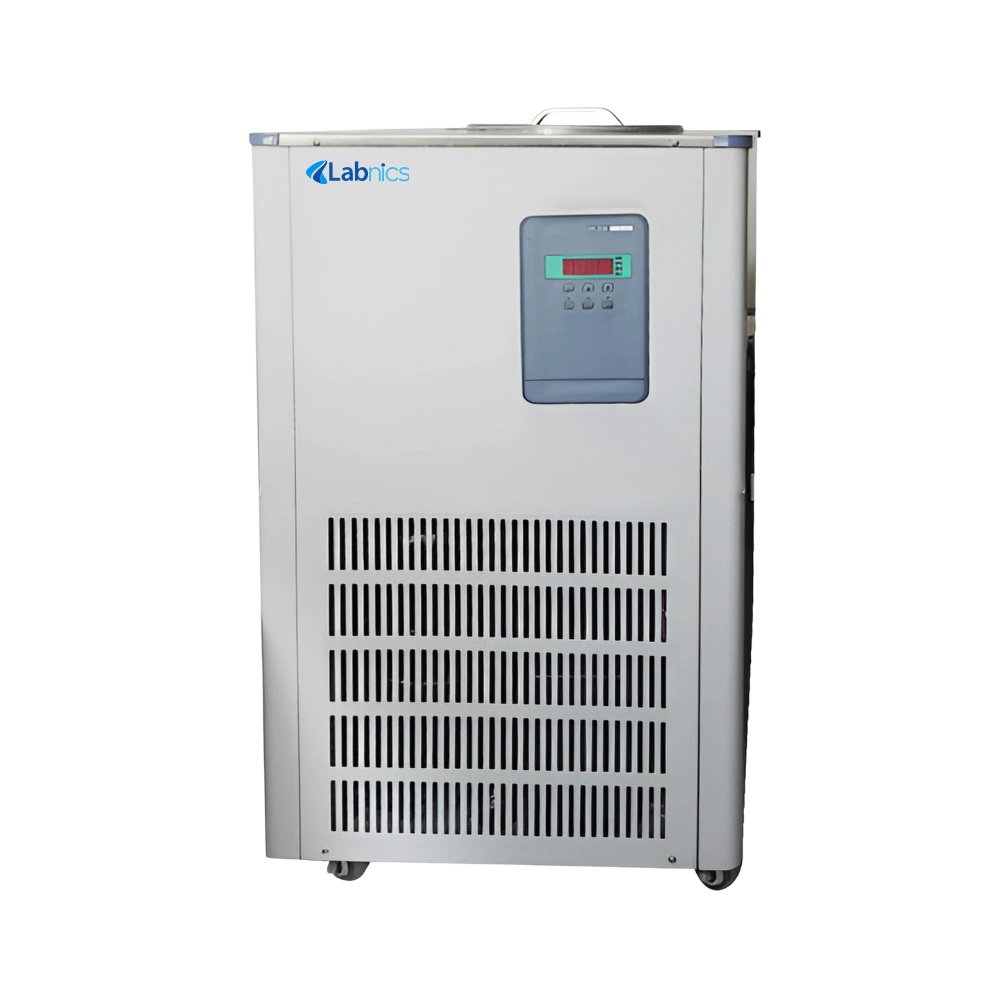

Recirculating Chiller NRC-302 maintains temperatures in the range of -80°C to RT, ensuring precise thermal control. It holds approximately 98 liters of coolant, enabling long-duration operation. This unit displays temperature digitally through a microcomputer-controlled LCD screen for easy monitoring. It uses a PT100 temperature sensor to ensure accurate readings. Our chiller includes an outer loop interface for efficient connection with external systems.
$16,238.00
Specifications
| Tank capacity | About 98L |
| Temperature range | -80°C to RT |
| Room Temperature | 5 to 35°C |
| Temperature accuracy | ±0.1°C |
| Temperature sensor | PT100 |
| Room humidity | ≤70% ventilation |
| Flow | 30 to 50L/min |
| Lifting head | 10 to 12M |
| Pressure | ≤0.4MPa |
| Heat exchange area | 39㎡ |
| Air volume | 6800m³/h |
| Refrigerant | R22 |
| Condensing coil | Φ19 Copper tube nickel plated |
| Material | Cold plate spray anticorrosion |
| Compressor type | 10P |
| Compressor quantity | 2 |
| Screen display | LCD screen, key operation |
| Safety protection | Delay, overcurrent, overheating, phase sequence, phase loss protection |
| Compressor power | 14700W |
| Cooling capacity | 23240W |
| Total power consumption | 15340W |
| Power supply | 380V 50Hz 3phase |
| Outer loop interface | Φ19mm |
| Tank dimension | Φ500×500 mm |
| Product dimension | 960×1500×1410 mm |
| Packaging dimension | 1600×9900×1590 mm |
| Weight | 424 kg |
| Packaging weight | 500 kg |
Features
Applications
Ask Expert
FAQ for Recirculating Chiller NRC-302
1: Is the Recirculating Chiller NRC-302 suitable for high-demand environments?
Our Recirculating Chiller is built with dual compressors and a corrosion-resistant cold plate body, making it highly durable and reliable even in intensive industrial or research environments.
2: Does the Recirculating Chiller NRC-302 offer safety features for protection?
The Recirculating Chiller includes multiple safety protections such as delay start, overcurrent, overheat, phase loss, and phase sequence protection. These features help ensure long-term, safe operation of both the chiller and connected instruments.
3: What kind of cooling efficiency does the Recirculating Chiller NRC-302 provide?
The Recirculating Chiller delivers high cooling capacity with rapid cooling speeds, which significantly enhances overall work efficiency. This makes it reliable for time-sensitive laboratory and industrial processes.
4: What cleaning steps are necessary for the tank?
It is advisable to clean the tank periodically using non-corrosive cleaning agents. Ensure the unit is powered off and completely drained before cleaning to avoid damage or safety hazards.
5: How do I maintain the outer loop interface?
It is important to inspect the outer loop interface for clogs or leaks. Cleaning the connectors and ensuring tight seals will help maintain smooth external circulation.
Labnics Recirculating Chiller features automated water level detection, to maintain optimal water levels. They feature a compact design with a user-friendly touchscreen for easy monitoring. These units are equipped with a microprocessor PID controller for precise temperature control. Our recirculating chillers are built with durable steel construction for long-lasting performance. They come with high-efficiency pumps that ensure steady flow rates.
