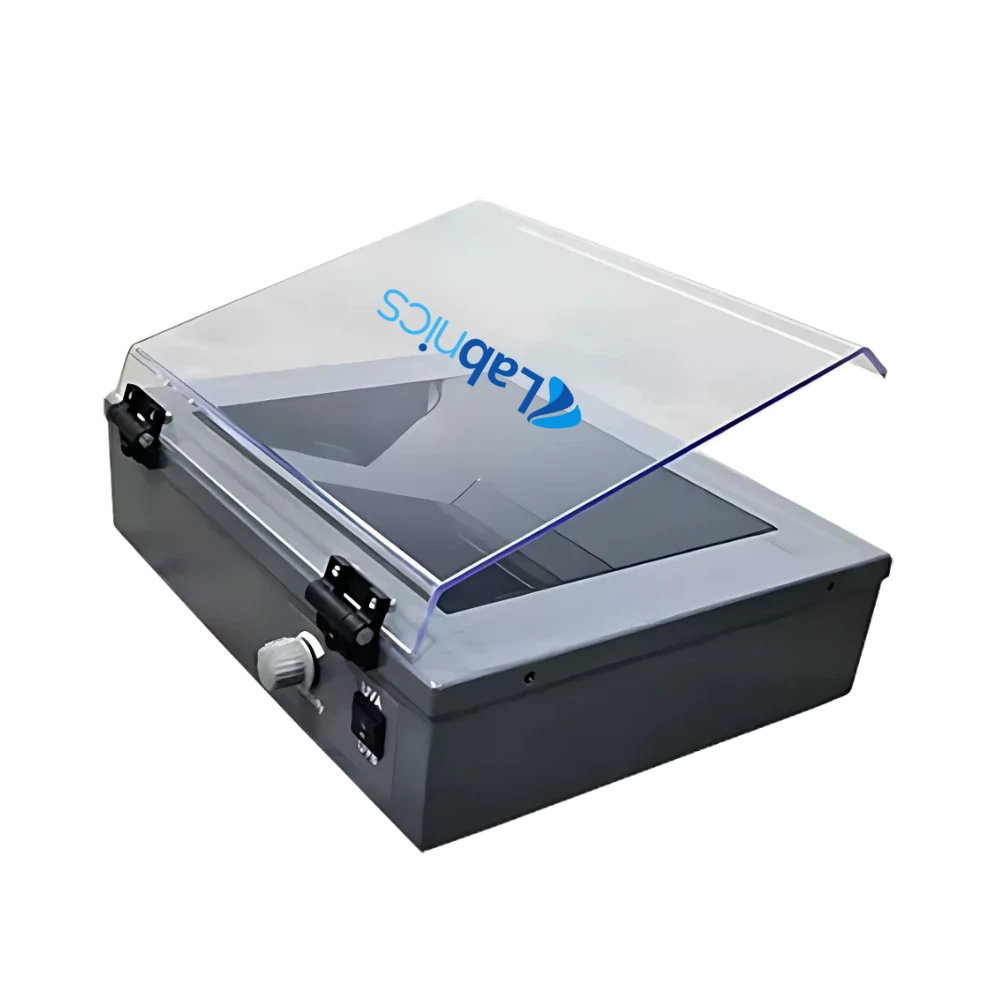

UV Transilluminator NUVT-102 features wavelengths of 302 nm and 365 nm, ensuring versatile gel analysis. This illuminator offers adjustable light source brightness for precise control. Our unit includes variable intensity settings to help protect samples from excessive UV exposure. It enables clear visualization of biomolecules stained with various dyes. It delivers reliable performance and easy operation in the laboratory environment.
$2,150.00
Specifications
| Wavelength | 302nm, 365nm optional-254nm |
| Transmission area | 210×260 mm |
| Light source brightness | 5 to 100% (Adjustable) |
| Intensity | Variable |
| Dimension (L×W×H) | 360×290×90 mm |
| Net weight | 7kg |
Features
Applications
Ask Expert
FAQ for UV Transilluminator NUVT-102
1: What is the advantage of having both 302 nm and 365 nm wavelengths?
UV Transilluminator NUVT-102 offers dual-wavelength illumination (302 nm and 365 nm), allowing flexibility in visualizing a wide range of nucleic acid and protein stains. The 365 nm setting is gentler on samples and ideal for gel excision without causing DNA damage.
2: Does the NUVT-102 support an optional 254 nm UV wavelength?
Yes, in addition to the standard 302 nm and 365 nm wavelengths, an optional 254 nm UV source is available. This wavelength is effective for specialized applications like nucleic acid degradation studies or sterilization.
3: How does variable intensity help protect samples?
The NUVT-102 includes variable intensity settings to reduce UV exposure when full brightness is not required. This minimizes DNA degradation and allows safer handling during gel imaging and cutting.
4: What’s the benefit of the transparent lid design?
The user-friendly transparent lid provides UV protection while allowing clear observation of gels during illumination. It enhances safety and convenience during quick visual checks or gel excision.
5: What should I do if the unit doesn't turn on?
First, verify that the power cord is securely connected and the outlet is functional. Ensure the power switch is ON. If issues persist, check the internal fuse or contact technical support.
