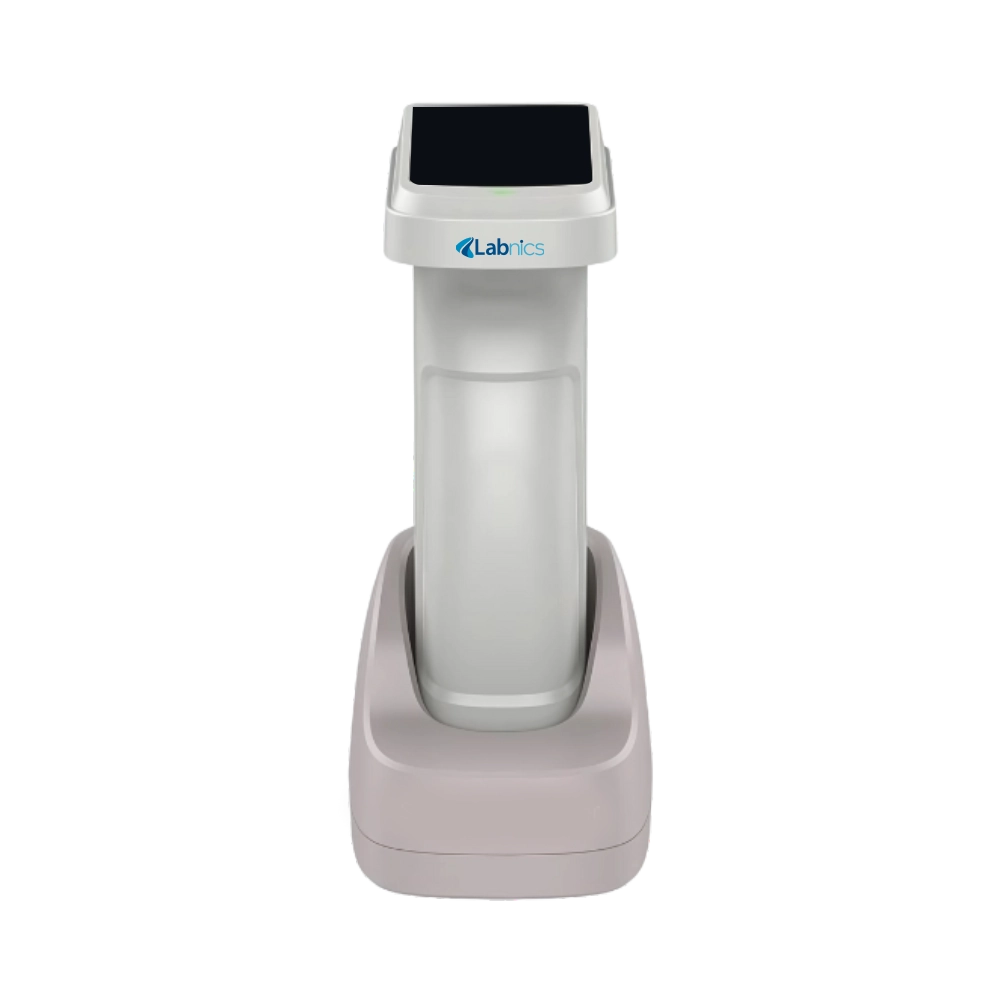

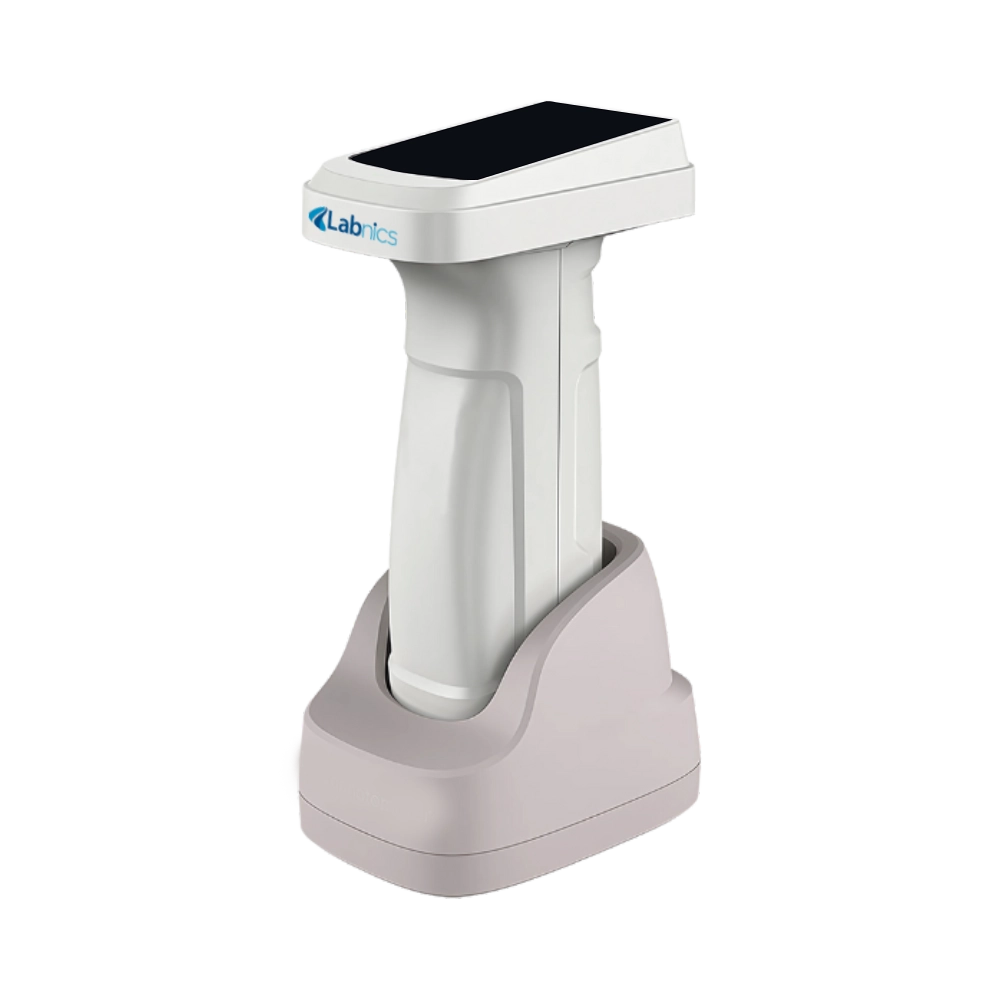

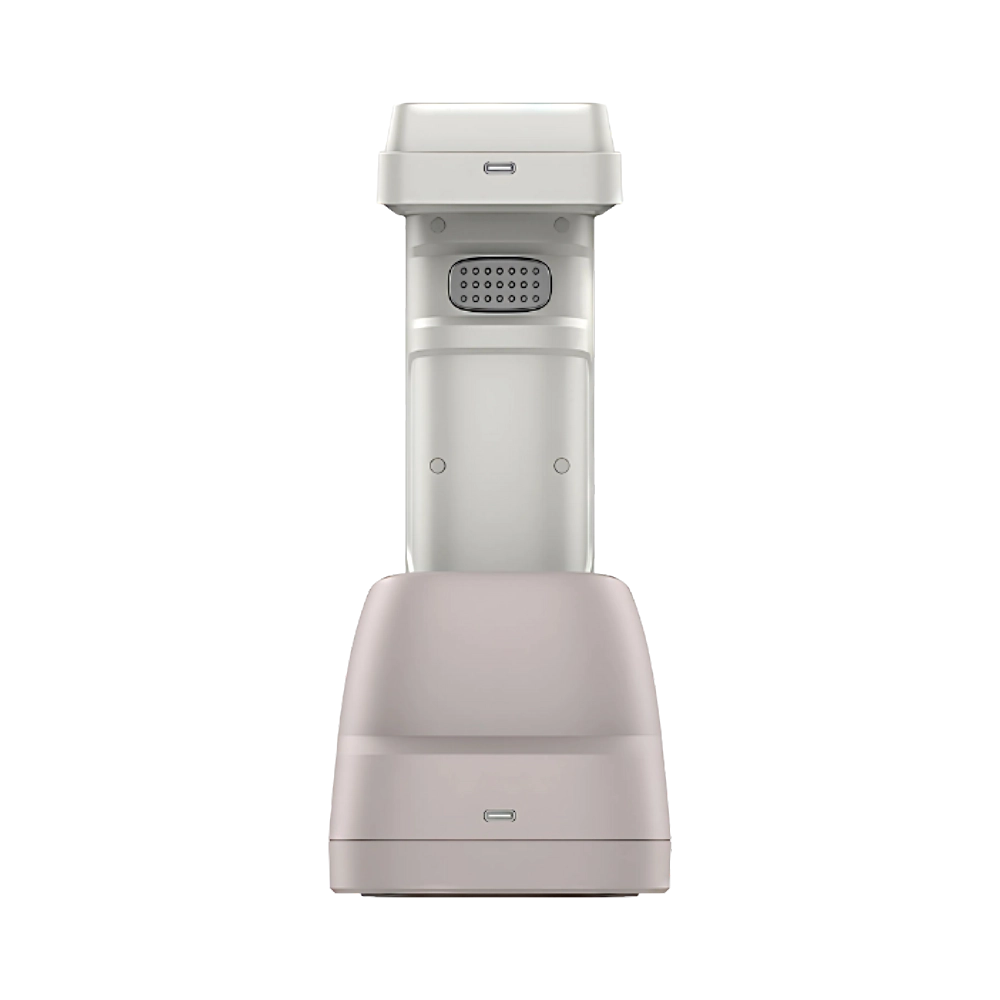

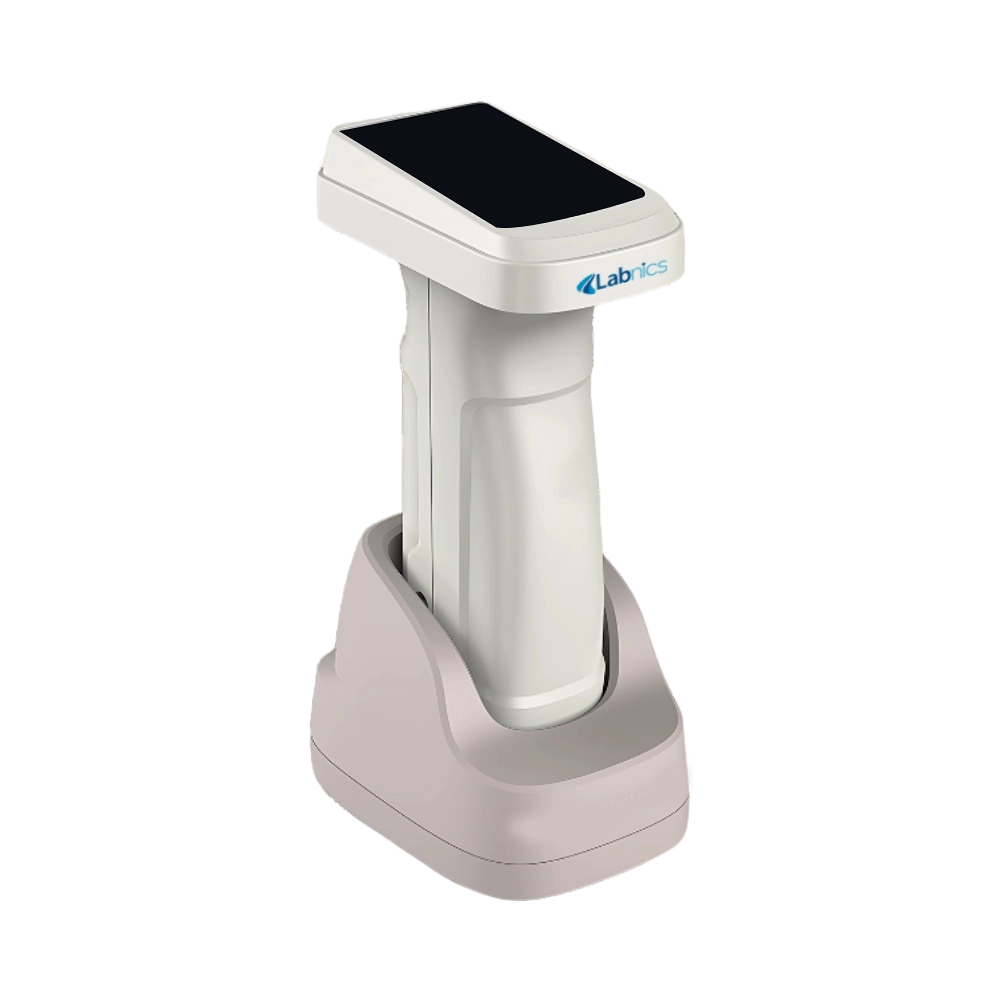

Portable Spectrophotometer NPS-101

Portable Spectrophotometer NPS-101 features four measuring apertures, providing flexibility for various sample sizes. It comes with a dual optical path combined with a high-precision CMOS array sensor. This spectrophotometer simplifies calibration using a ZrO₂ white tile with over 90% reflectance. It offers USB and Bluetooth interfaces for easy connectivity and data transfer. Our unit supports more than 30 color indices and 37 illuminants for versatile analysis.

---

$3,213.00

Buy Now Catalog

Specifications

Measuring aperture	Four: Φ11mm, Φ6mm, Φ3mm, 1×3mm
Measuring geometry	D/8, SCI/SCE
Light source	Full-band balanced LED light source + UV
Sensor	Dual-row high-precision CMOS array sensor
Repeatability	ΔE × ab ≤ 0.02
Inter-instrument agreement	ΔE × ab ≤0.25
Display resolution	0.01
Measurement time	Less than 2 seconds
Accuracy	Metrology level 1
Observer angles	2°, 10°
Sphere size	40mm
Spectroscopic method	Grating
Wavelength interval	10nm
Wavelength range	400 to 700nm
Reflectance range	0 to 200%
Reflectivity resolution	0.0001
Measurement index	Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy, RGB, Color difference (ΔE×ab, ΔE×cmc, ΔE×94, ΔE ×100), WI (ASTM E313-00, ASTM E313-73, CIE, ISO2470/R457, AATCC, Hunter, TaubeBergerStensby), YI (ASTM D1925, ASTM E313-00, ASTM E313-73), Blackness (My, dM), Color Fastness, Tint, (ASTM E313-00), Colour Density CMYK (A, T, E, M), Milm, Munsell, Opacity, Color strength
Illuminants	A, B, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CWF, U30, U35, DLF, NBF, TL83, TL84, ID50, ID65, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2
Measurement and observation mode	Camera
Calibration	Intelligent automatic calibration
Software	Android, iOS, Windows, WeChat app
Standards	CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
Interface	USB, Bluetooth
Screen	IPS Full-Color Screen of 3.5 inches
Battery capacity	Rechargeable, 8000 times continuous tests 7.2V/3000mAh
Light source lifetime	10 years, 1 million tests
Storage	Instrument: 100 standard samples and 10000 samples; APP: mass storage

Features

• Rechargeable battery
• Supports Android, iOS, Windows
• High-quality construction materials
• Built-in camera for alignment
• 10nm resolution grating spectroscopy
• Easy navigation and data visualization
• Intelligent auto calibration technology

Applications

• Portable Spectrophotometer NPS-101 is used for accurate and reliable color measurement across various materials and environments. It is commonly used in industries such as textiles, coatings, plastics, packaging, printing, and food to ensure consistent quality and compliance with industry standards.
