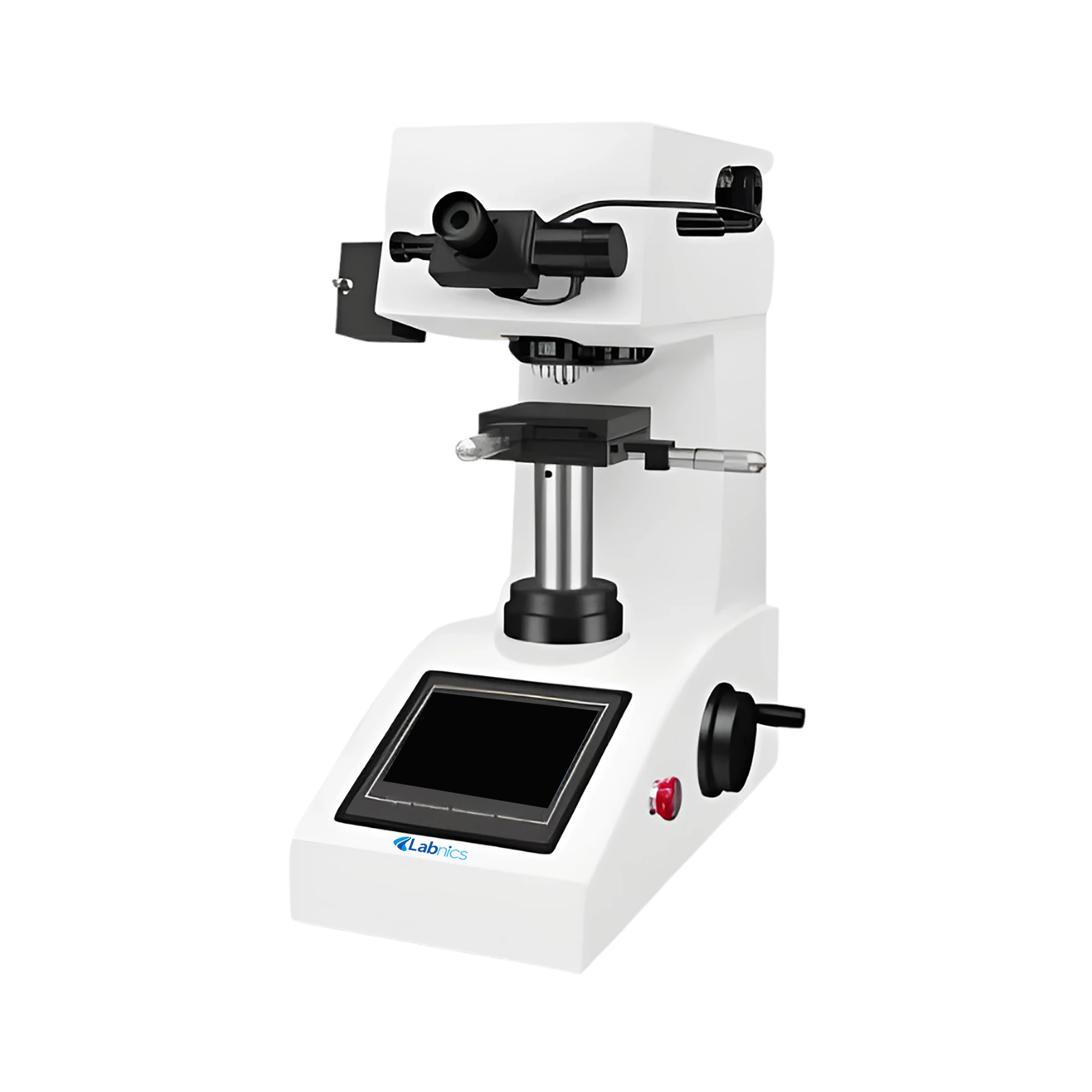

Digital Micro Vickers Hardness Tester NDMVT-102 offers a test range of 1 HV to 2967 HV with multiple test forces. It features a digital display interface that provides easy readability. This multi-scale conversion enhances its versatility for different hardness standards. Our fine resolution ensures accurate micro hardness evaluation. This combination of precision optics makes it ideal for advanced material analysis across multiple industries.
$4,225.00
Specifications
| Test Forces | 0.098 N (10 gf), 0.246 N (25 gf), 0.49 N (50 gf), 0.98 N (100 gf), 1.96 N (200 gf), 2.94 N (300 gf), 4.90 N (500 gf), 9.80 N (1000 gf) |
| Test Range | 1 HV to 2967 HV |
| Test Mode | HV / HK |
| Loading Method | Automatic (Loading / Dwell / Unloading) |
| Conversion Scales | HK, HRA, HRBW, HRC, HRD, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HBW |
| Shifting (Objective / Indenter) | Automatic |
| Total Magnification | 100×, 400× |
| Resolution | 0.0625 μm |
| Dwell Time | 0 to 60 s |
| Light Source | Halogen Lamp |
| X-Y Test Table | Size: 100 × 100 mm; Travel: 25 × 25 mm; Resolution: 0.01 mm |
| Maximum Height of Specimen | 90 mm |
| Throat Depth | 95 mm |
| Standards Executed | ISO 6507, ASTM E384, JIS Z2244, GB/T 4340.2 |
| Power Supply | AC 220 V, 50 Hz |
| Dimensions (L × W × H) | 500 × 250 × 560 mm |
| Packing Dimensions (L × W × H) | 595 × 415 × 810 mm |
| Net Weight | 40 kg |
| Gross Weight | 50 kg |
Features
Applications
Standard Accessories
Weights -6 Pcs
Diamond Micro Vickers Indenter -1 Pc
Weight Axis -1 Pc
10× Reading Microscope -1 Pc
10×, 40× Objective -1 Pc
Hardness Block – 2 Pcs
Fuse 2A -2 Pcs
Power Cable -1 Pc
Horizontal Regulating Screw -4 Pcs
Screw Driver -2 Pcs
Cross Test Table -1 Pc
Level -1 Pc
Flat Clamping Test Table -1 Pc
Anti-dust Cover -1 Pc
Thin Specimen Test Table -1 Pc
Halogen Lamp- 1 Pc
Filament Clamping Test Table -1 Pc
Ask Expert
FAQ for Digital Micro Vickers Hardness Tester NDMVT-102
1: What is the test force capacity of Digital Micro Vickers Hardness Tester NDMVT-102?
The Digital Micro Vickers Hardness Tester NDMVT-102 can apply forces from 0.098 N (10 gf) to 9.80 N (1000 gf), providing flexibility to test a wide range of materials and coatings with consistent accuracy, making it suitable for industrial and research environments.
2: Does this Digital Micro Vickers Hardness Tester NDMVT-102 allow both Vickers and Knoop hardness testing?
Yes, Digital Micro Vickers Hardness Tester NDMVT-102 supports HV (Vickers) and HK (Knoop) test modes, allowing users to select the appropriate hardness testing method for thin sections, coatings, or micro-structured materials as required.
3: What type of magnification options does Digital Micro Vickers Hardness Tester NDMVT-102 provide?
The Digital Micro Vickers Hardness Tester NDMVT-102 is equipped with 100× and 400× magnifications, enabling users to inspect small indentations in detail and achieve highly accurate measurement of micro hardness in delicate samples.
4: Is the optical shifting between indenter and objective automatic?
Yes, Digital Micro Vickers Hardness Tester NDMVT-102 includes automatic shifting between the objective lens and indenter, enhancing testing speed, reducing manual handling errors, and improving user convenience during repetitive testing.
5: Which industries typically use this Digital Micro Vickers Hardness Tester NDMVT-102?
Digital Micro Vickers Hardness Tester NDMVT-102 is widely used in metallurgy, aerospace, electronics, automotive, precision engineering, and academic research, wherever micro hardness evaluation of metals, alloys, thin coatings, and advanced materials is essential for quality control and development.
6: What is a Digital Micro Vickers Hardness Tester used for?
It is used to measure the hardness of micro-scale components, coatings, and thin materials. These testers provide accurate readings ideal for metallurgical, electronic, and research applications.
7: What test forces are available in Digital Micro Vickers Hardness Testers?
They typically support test forces ranging from 10 gf to 1000 gf, allowing users to perform detailed hardness testing across various sample types and thicknesses.
8: Does it include automatic loading and unloading?
Yes, modern models feature fully automatic loading, dwell, and unloading mechanisms, improving efficiency, consistency, and reducing operator fatigue.
9: Can the Digital Micro Vickers Hardness Tester convert between hardness scales?
Yes, these testers usually provide multi-scale conversion, including HV, HK, and several Rockwell and Brinell scales, simplifying data comparison and reporting.
10: Where are Digital Micro Vickers Hardness Testers commonly used?
They are widely used in research laboratories, production quality control, educational institutions, and industries such as automotive, aerospace, electronics, and materials science.
Labnics Digital Micro Vickers Hardness Testers offer accurate hardness measurements for small and delicate components. They are equipped with automatic loading to ensure repeatable test results. Our fine resolution readings enhance precision for microstructure analysis. These provide fine resolution readings to capture even minor indentation differences. They have multiple conversion scales that allow easy translation of results.
