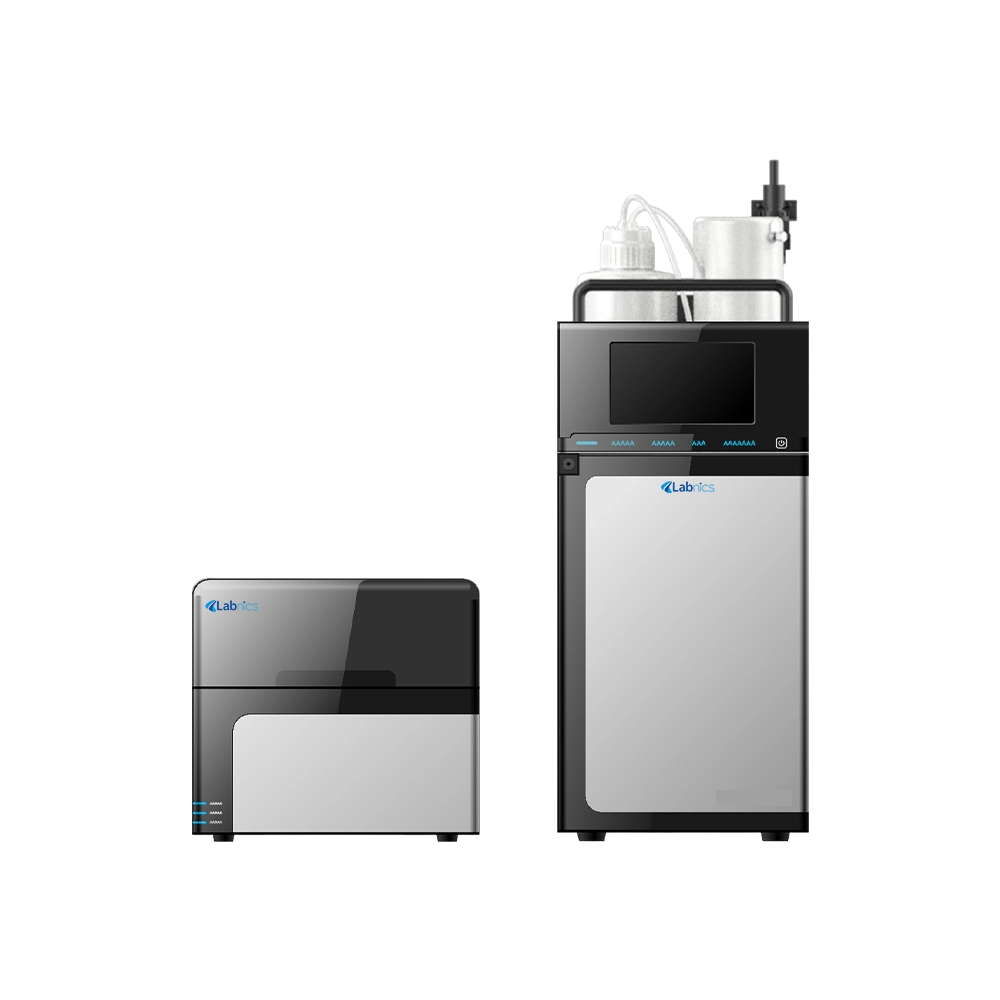

Ion Chromatography NIC-101 offers a pump flow rate range of 0.001 to 12.000 mL/min, providing reliable performance. The column temperature chamber has a temperature range from room temperature +5°C to 70°C. It includes flow paths made from PEEK and PTFE materials for enhanced durability. This unit is equipped with a digital conductivity detector with auto-ranging capabilities for accurate measurements. It features automatic data acquisition for rapid collection and processing of analytical data.
$85,800.00
Specifications
| Qualitative Repeatability | ≤0.05% |
| Quantitative Repeatability | ≤0.3% |
| Chromatography Pump System | High-performance/low-pulse dual-plunger pump with inert full-PEEK pump head |
| Pump Flow Rate | 0.001 to 12.000 mL/min |
| Pump Head Pressure Resistance | 0 to 42 MPa |
| Flow Rate Setting Error | ≤±0.1% |
| Flow Rate Stability | ≤±0.1% |
| Pressure Display Accuracy | 0.01 Mpa |
| Pressure Pulsation | <0.25% |
| Conductivity Detector | Digital conductivity detector |
| Baseline Noise | ≤0.0003 μS/cm |
| Baseline Drift | ≤0.001 μS-cm⁻¹ /30min |
| Minimum Detectable Concentration (Cl⁻) | ≤0.0001 μg/mL |
| Minimum Detectable Concentration (Li⁺) | ≤0.00005 μg/mL |
| Minimum Detectable Concentration (NO₃⁻) | ≤0.001 μg/mL |
| Minimum Detectable Concentration (Na⁺) | ≤0.001 μg/mL |
| Minimum Detectable Concentration (Ca²⁺) | ≤0.005 μg/mL |
| Conductivity Cell Volume | ≤0.4 μL |
| Conductivity Detection Range | 0 to 45000 μS/cm |
| Detector Resolution | 0.00238 nS/cm |
| Temperature Compensation Range | 0 to 3.0% |
| Conductivity Cell Temperature Control Range | Detector temperature zone +5℃ - 65℃ |
| Conductivity Cell Temperature Control Stability | 0.05℃/h |
| Conductivity Cell Withstanding Pressure | 15 MPa |
| Ampere Detectors Type | Thin-layer construction |
| Driving Voltage Range | -2.048V to +2.048V |
| Driving Voltage Resolution | 0.001 V |
| Output Signal Range (Integral Mode) | 50 pC to 200 μC |
| Noise (Integral Mode) | ≤ 30 pC |
| Reference Electrode | Saturated potassium chloride Ag/AgCl |
| Pool volume | <0.2uL |
| Minimum Detection Concentration | I-: 0.001μg/mL Fructose: 0.01μg/mL CN-: 0.0005μg/mL |
| Suppressors | Electrolytic auto-regenerating membrane suppressor |
| Constant current source range | 0-500mA, increment 1mA |
| Suppressor Dead Volume | 50 μL |
| Suppressor Capacity | 170 μeq/min |
| Pressure Resistance of Suppressor | 3 MPa |
| Column Temperature Chamber | Air-bath thermal circulation heating column |
| Temperature Range of chamber | Room temperature +5℃ to 70℃ |
| Control Temperature Stability | ≤ 0.1℃ |
| Temperature setting value error | 0.05℃ |
| Compatible Column Lengths | 250 mm and 150 mm |
| Ion Chromatography Columns | Anion and cation chromatography columns for detecting conventional anions and cations |
| Autosampler Repeatability of Quantification | 0.9995 |
| Autosampler Number of Sample Bits | 48 bits |
| Autosampler Working Temperature Range | 10°C to 40°C |
| Autosampler Cleaning Positions | 2 positions (fine and coarse) |
| Autosampler Inlet Bottle Types | 5 mL and 100 mL |
| Autosampler Injection Volume Range | 10 µL to 4000 µL |
| Autosampler Single Injection Cycle Time | Approximately 20 seconds (varies based on cleaning time and injection volume) |
| Autosampler Injection Mode | Full loop injection |
| Nitrogen Pressurization Unit | Protects against airborne CO₂ absorption |
| Eluent Generator Flow Rate Range | 0.001 to 3.000 mL/min |
| Concentration Range of Elution Solution | KOH, MSA: 0.01 to 100.00 mM |
| Concentration accuracy | 0.1mM |
| Original concentration of electrolyte | 25% KOH/MSA |
| Electrolyte volume | 1000mL |
| Maximum working pressure | 21MPa (3000psi) |
| Maximum concentration of compatible organic solvent | 25% methanol |
| Software Features | Graphical interface, real-time analysis, intelligent inhibitor protection, multi-channel acquisition |
| Power | 230V, 50Hz |
| Dimensions | 710 × 430 × 890 mm |
| Weight | 100 kg |
