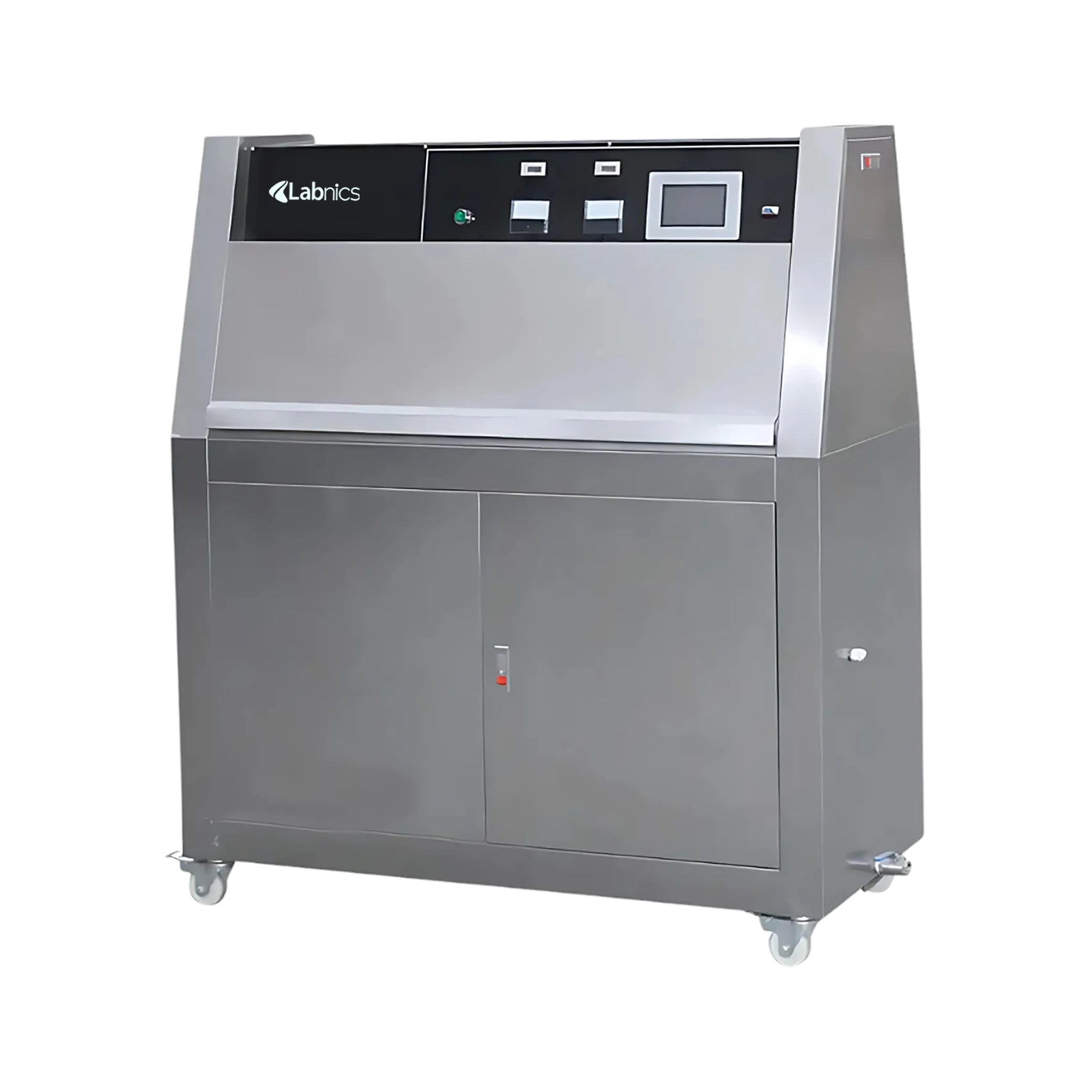

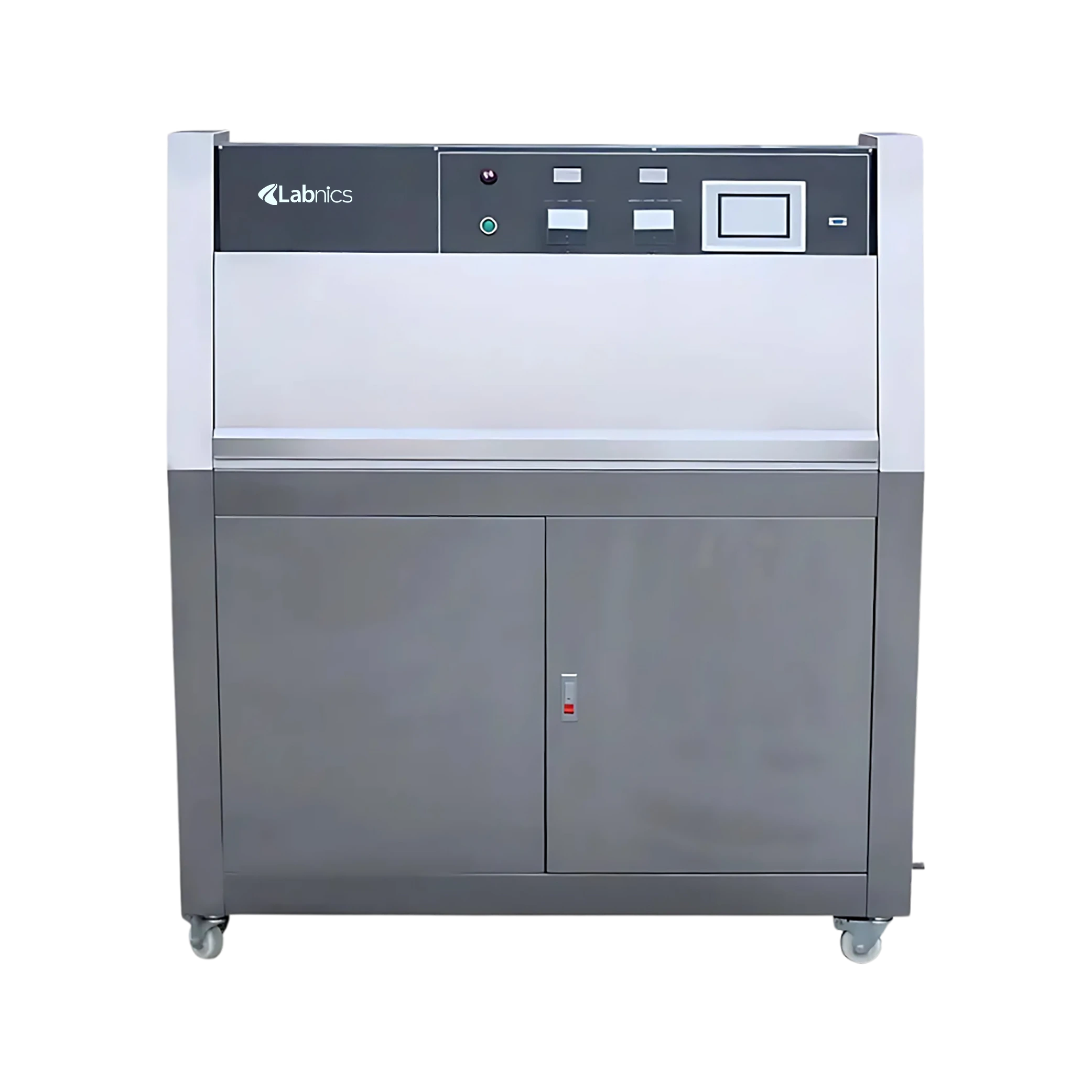

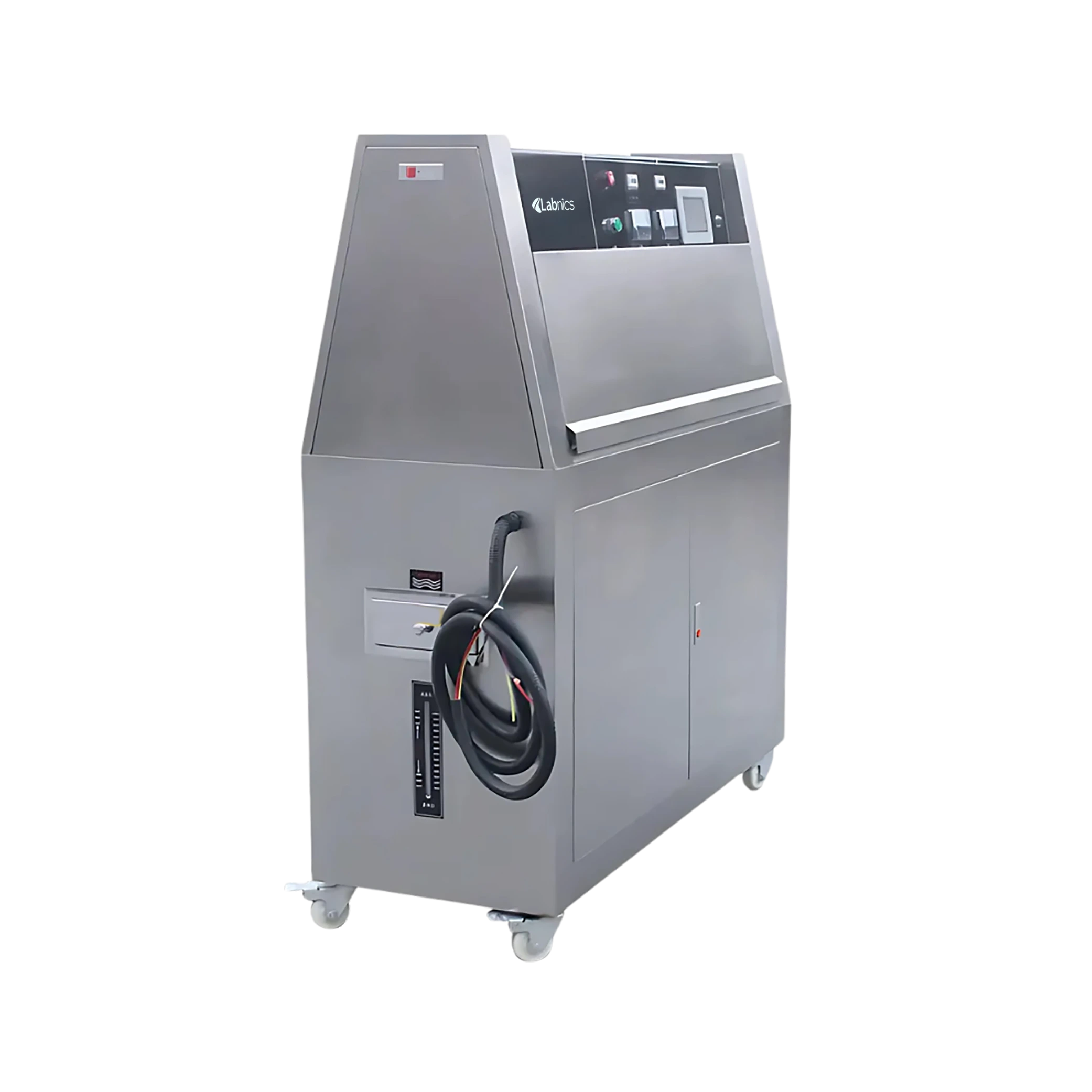

UV Test Chamber NUTC-100 maintains consistent performance with a temperature range from RT+10℃ to 70℃ and a uniformity of ±1℃. It features stainless steel construction for enhanced durability and corrosion resistance. This unit uses single-circulation airflow for improved temperature uniformity. It is equipped with PU wheels for smooth and easy mobility. Our UV Test Chamber includes overtemperature protection to ensure safe operation.
$4,800.00
Specifications
| Temperature range | RT+10℃ to 70℃ |
| Humidity range | ≥90%RH |
| Irradiation blackboard temperature | 50℃ to 70℃ |
| Temperature uniformity | ±1℃ |
| Temperature fluctuation | ±0.5℃ |
| Ultraviolet wavelength range | UVA: 315 to 400 nm; UVB: 280 to 315 nm |
| Test time | 0 to 999 hour (adjustable) |
| Irradiance | Adjustable within 1.0 W/m² |
| Lamp | 1200/40W, 8 units (UVA/UVB, service life >1600 h) |
| Center distance inside the lamp | 70 mm |
| Distance between the test object and lamp center | 50 ±3 mm |
| Standard sample rack | 24 |
| Water channel depth | 25 mm |
| Standard specimen size | 75 × 290 mm |
| Irradiation area | 900 × 210 mm |
Features
Applications
Ask Expert
FAQ for UV Test Chamber NUTC-100
1: What is the role of the automatic water replenishment system in the UV Test Chamber?
The automatic water replenishment system in the UV Test Chamber keeps the inner tank filled to prevent damage to heating pipes from running dry, ensuring continuous moisture simulation during condensation cycles.
2: What materials are used for the sample racks in the UV Test Chamber, and why?
The UV Test Chamber uses stainless steel or aluminum alloy for sample racks. These materials resist corrosion from moisture and UV exposure while providing stable support for accurate testing conditions.
3: How does the UV Test Chamber NUTC-100 simulate moisture effects on test samples?
Our UV Test Chamber simulates moisture through a combination of condensation cycles and an automatic sprinkler system with adjustable water pressure, effectively replicating the effects of dew and rain on materials.
4: What type of UV lamps does the UV Test Chamber use, and how do they enhance testing accuracy?
The UV Test Chamber uses special ultraviolet fluorescent lamps, arranged in two rows of eight, available as UVA or UVB types. These lamps provide consistent and controlled UV radiation that closely simulates natural sunlight for accurate aging tests.
5: What safety precautions should I follow while operating the UV Test Chamber NUTC-100?
Always ensure the chamber is properly grounded, never open the chamber lid during operation, verify all safety protections are active, and avoid overloading the sample racks to maintain safe operation.
Labnics UV Test Chambers utilizes single-circulation airflow for uniform UV exposure and consistent temperature. They include an automatic spray system for efficient and uniform sample wetting. These units are equipped with a touchscreen display for intuitive control and easy operation. They include water shortage protection to ensure safe and reliable performance. Our UV Test Chamber is built with stainless steel construction for enhanced durability and corrosion resistance.
