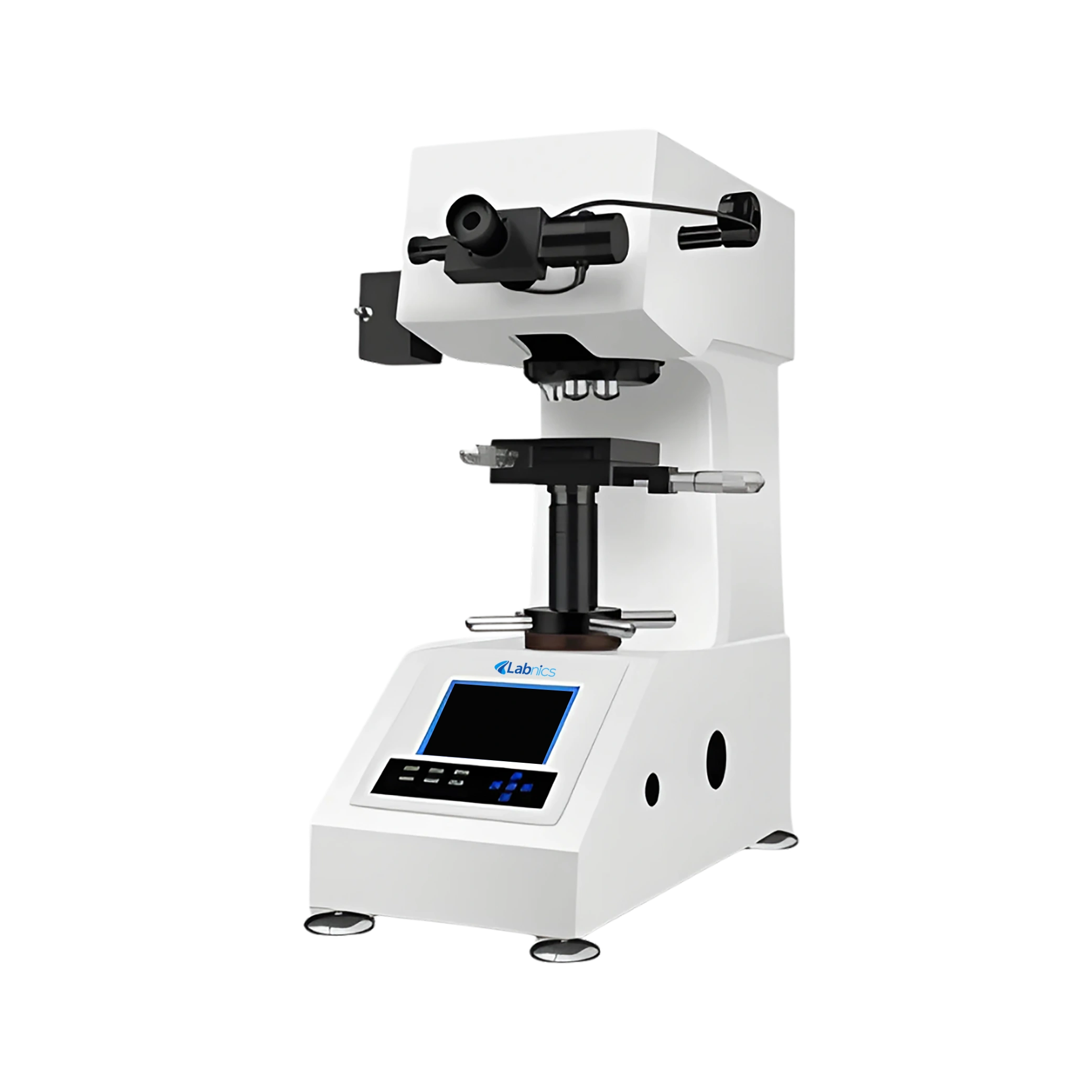

Digital Micro Vickers Hardness Tester NDMVT-103 offers a test force range of 0.098 N to 9.80 N, ensuring versatile testing capabilities. It features high-precision load application for accurate hardness testing. Our system provides fine resolution readings to capture even minor indentation differences. It has multiple conversion scales that allow easy translation of results. Our user-friendly digital interface, combined with a durable halogen lamp, ensures clear viewing and stable results.
$3,863.00
Specifications
| Test Forces | 0.098 N (10 gf), 0.246 N (25 gf), 0.49 N (50 gf), 0.98 N (100 gf), 1.96 N (200 gf), 2.94 N (300 gf), 4.90 N (500 gf), 9.80 N (1000 gf) |
| Test Range | 1 HV to 2967 HV |
| Test Mode | HV / HK |
| Loading Method | Automatic (Loading / Dwell / Unloading) |
| Conversion Scales | HK, HRA, HRBW, HRC, HRD, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HBW |
| Shifting (Objective / Indenter) | Manual |
| Total Magnification | 100×, 400× |
| Resolution | 0.0625 μm |
| Dwell Time | 0 to 60 s |
| Light Source | Halogen Lamp |
| X-Y Test Table | Size: 100 × 100 mm; Travel: 25 × 25 mm; Resolution: 0.01 mm |
| Maximum Height of Specimen | 90 mm |
| Throat Depth | 95 mm |
| Standards Executed | ISO 6507, ASTM E384, JIS Z2244, GB/T 4340.2 |
| Power Supply | AC 220 V, 50 Hz |
| Dimensions (L × W × H) | 500 × 250 × 560 mm |
| Packing Dimensions (L × W × H) | 595 × 415 × 810 mm |
| Net Weight | 40 kg |
| Gross Weight | 50 kg |
Features
Applications
Standard Accessories
Weights-6 Pcs
Diamond Micro Vickers Indenter-1 Pc
Weight Axis-1 Pc
10× Reading Microscope-1 Pc
10×, 40× Objective-1 Pc
Hardness Block-2 Pcs
Fuse 2A-2 Pcs
Power Cable-1 Pc
Horizontal Regulating Screw-4 Pcs
Screw Driver-2 Pcs
Cross Test Table-1 Pc
Level-1 Pc
Flat Clamping Test Table-1 Pc
Anti-dust Cover-1 Pc
Thin Specimen Test Table-1 Pc
Halogen Lamp- 1 Pc
Filament Clamping Test Table-1 Pc
Ask Expert
FAQ for Digital Micro Vickers Hardness Tester NDMVT-103
1: What is the test force range of the Digital Micro Vickers Hardness Tester NDMVT-103?
The Digital Micro Vickers Hardness Tester NDMVT-103 supports eight selectable test forces ranging from 0.098 N (10 gf) to 9.80 N (1000 gf), making it suitable for both delicate and harder materials while maintaining excellent accuracy in each range.
2: Can the Digital Micro Vickers Hardness Tester NDMVT-103 convert hardness scales automatically?
Yes, Digital Micro Vickers Hardness Tester NDMVT-103 provides multiple hardness conversion scales such as HV, HK, HRA, HRBW, HRC, HRD, and others, helping users translate Vickers or Knoop results into widely recognized industrial hardness values.
3: How accurate is the measurement resolution in Digital Micro Vickers Hardness Tester NDMVT-103?
The Digital Micro Vickers Hardness Tester NDMVT-103 offers a fine resolution of 0.0625 ?m, ensuring that even minor indentation differences are captured accurately, which is crucial for micro-scale testing in research and precision manufacturing.
4: Does Digital Micro Vickers Hardness Tester NDMVT-103 support manual or automatic shifting between objective and indenter?
This Digital Micro Vickers Hardness Tester NDMVT-103 uses manual shifting, which gives the operator full control over focusing and measuring while keeping the design reliable and cost-effective for many laboratory setups.
5: What types of materials can be tested with this Digital Micro Vickers Hardness Tester NDMVT-103?
The Digital Micro Vickers Hardness Tester NDMVT-103 is ideal for metals, alloys, coatings, and other micro-fabricated components where precise hardness values are required. It’s often used in electronics, metallurgy, tool production, and academic research labs.
6: What is a Digital Micro Vickers Hardness Tester used for?
It is used to measure the hardness of micro-scale components, coatings, and thin materials. These testers provide accurate readings ideal for metallurgical, electronic, and research applications.
7: What test forces are available in Digital Micro Vickers Hardness Testers?
They typically support test forces ranging from 10 gf to 1000 gf, allowing users to perform detailed hardness testing across various sample types and thicknesses.
8: Does it include automatic loading and unloading?
Yes, modern models feature fully automatic loading, dwell, and unloading mechanisms, improving efficiency, consistency, and reducing operator fatigue.
9: Can the Digital Micro Vickers Hardness Tester convert between hardness scales?
Yes, these testers usually provide multi-scale conversion, including HV, HK, and several Rockwell and Brinell scales, simplifying data comparison and reporting.
10: Where are Digital Micro Vickers Hardness Testers commonly used?
They are widely used in research laboratories, production quality control, educational institutions, and industries such as automotive, aerospace, electronics, and materials science.
Labnics Digital Micro Vickers Hardness Testers offer accurate hardness measurements for small and delicate components. They are equipped with automatic loading to ensure repeatable test results. Our fine resolution readings enhance precision for microstructure analysis. These provide fine resolution readings to capture even minor indentation differences. They have multiple conversion scales that allow easy translation of results.
