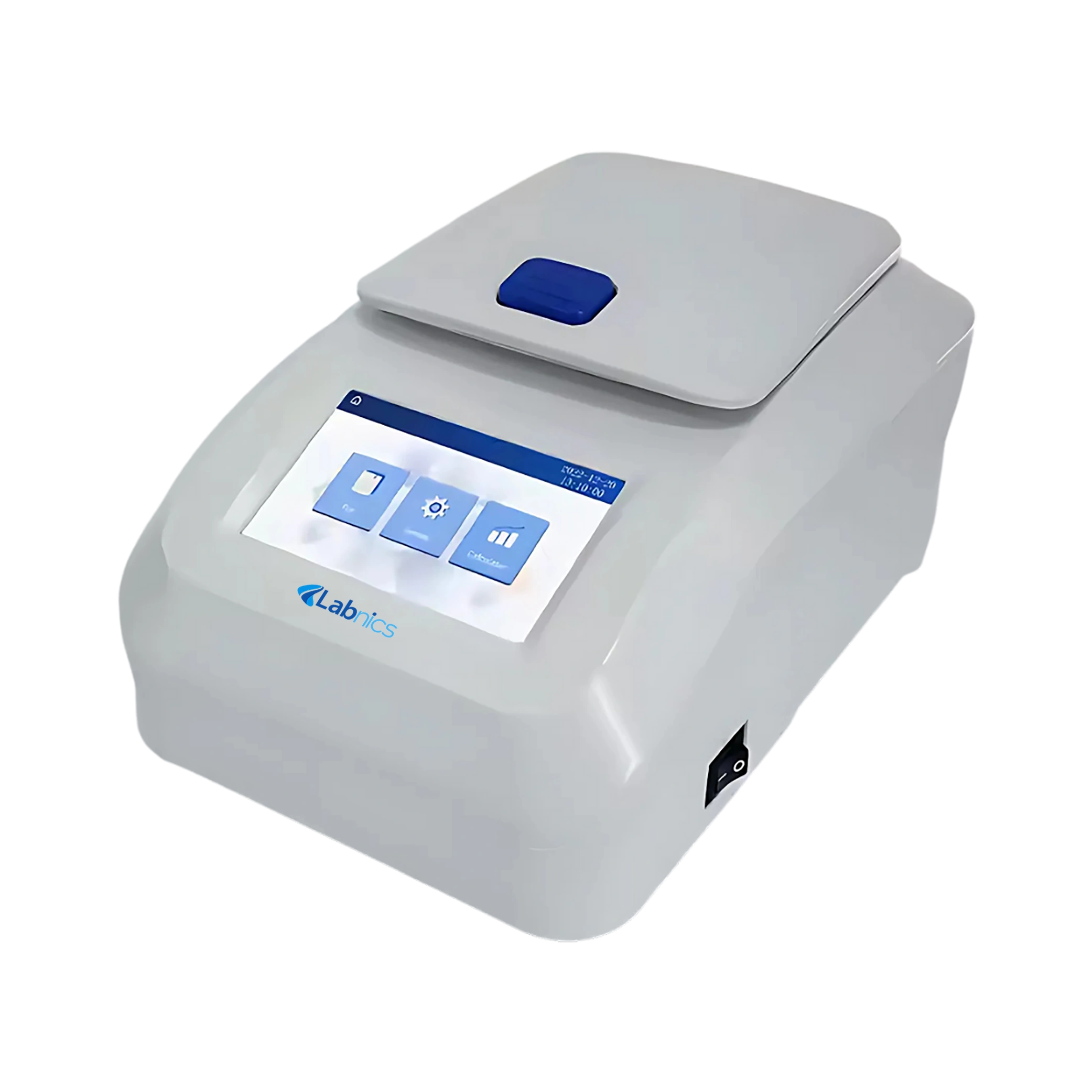

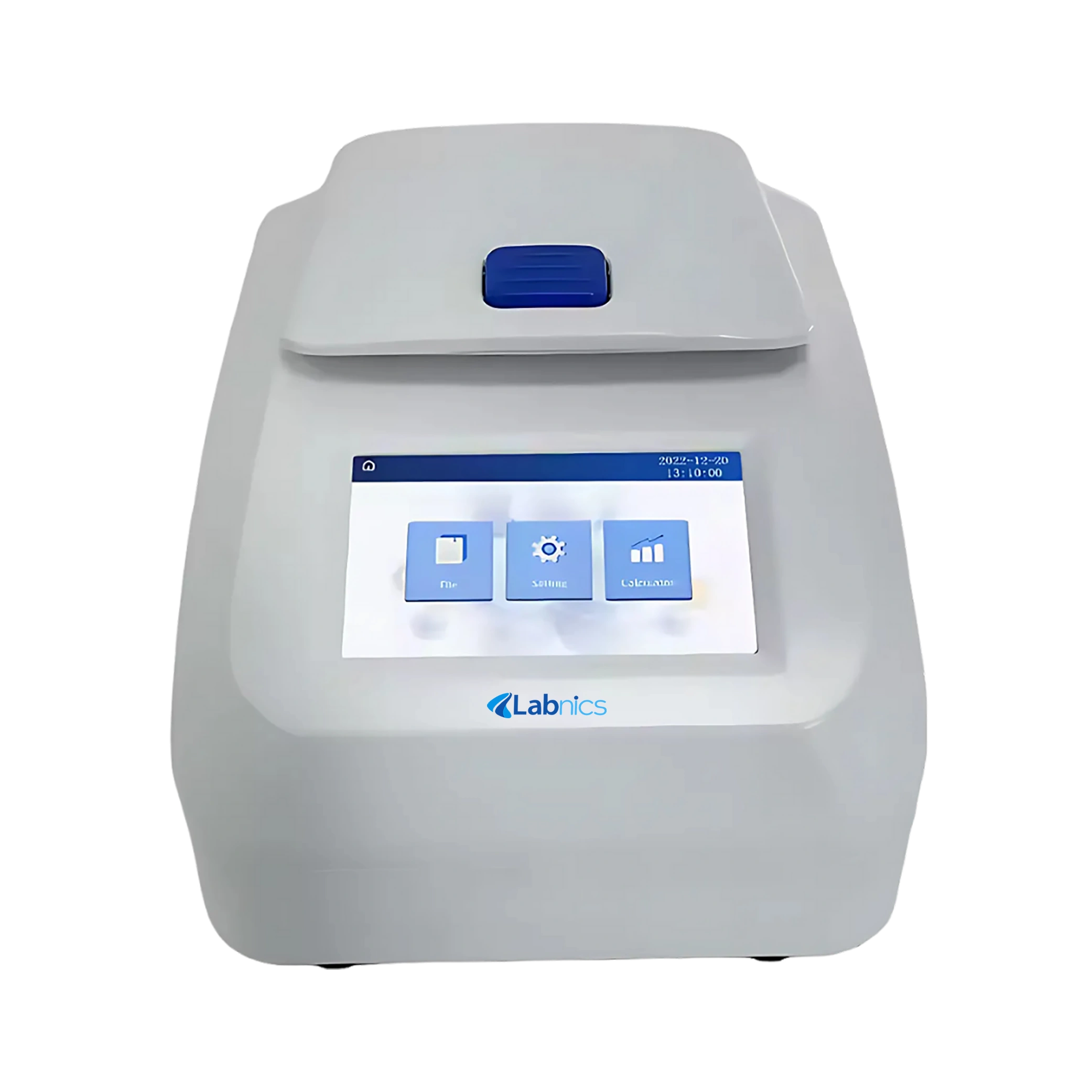

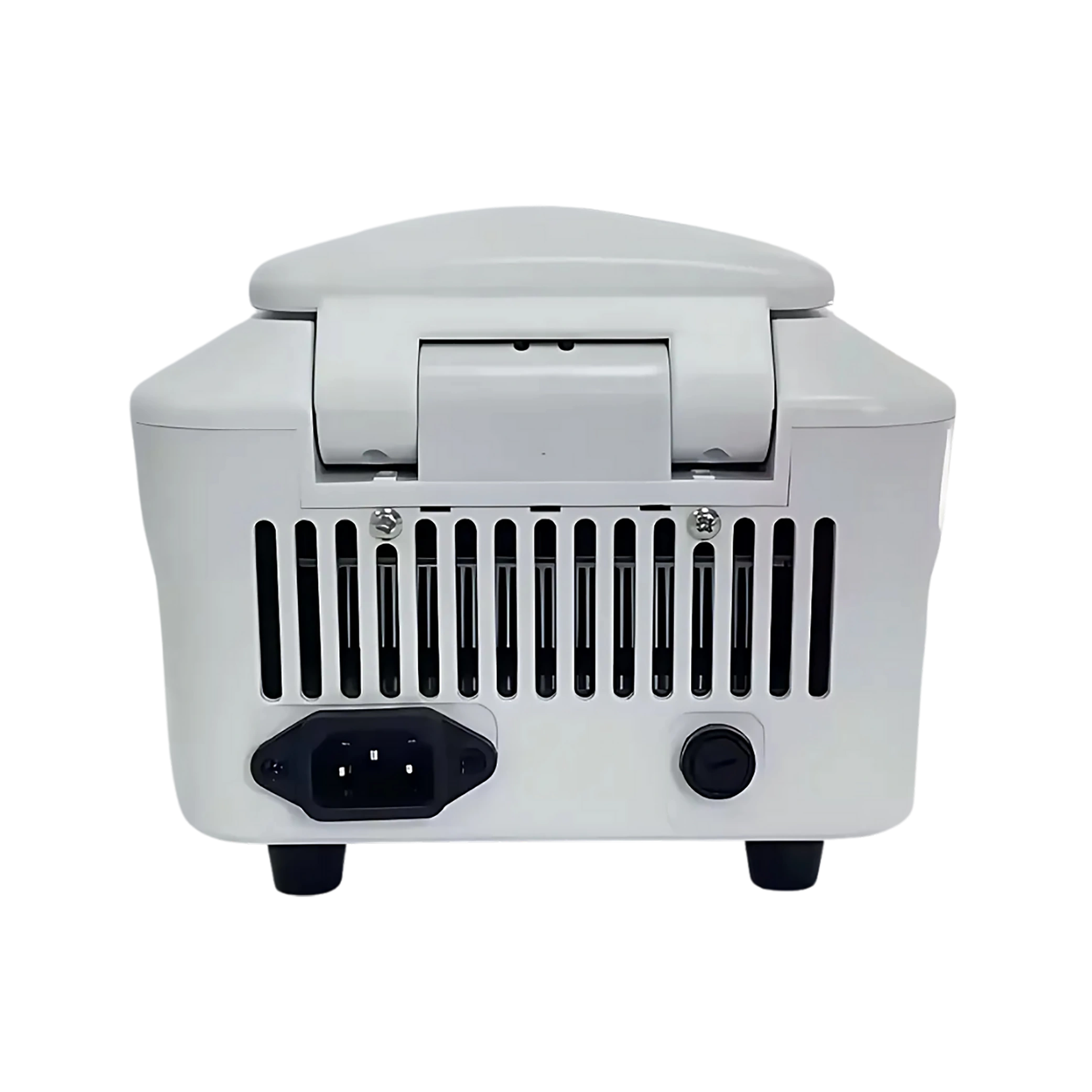

Gradient Thermal Cycler NGTC-500

Gradient Thermal Cycler NGTC-500 supports 32×0.2 ml capacity with a temperature range of 4 to 105°C for PCR compatibility. This cycler ensures precise thermal control to support a variety of DNA amplification protocols. Our unit includes a gradient function, allowing efficient optimization. It features a user-friendly 4.3-inch color touch screen for easy navigation. It enables fast cycling performance and supports high-throughput workflows with reliable results.

---

$2,575.00

Buy Now Catalog

Specifications

Capacity	32×0.2ml
Block Temperature Range	4 to 105℃
Temperature Display Accuracy	0.1℃
Block Temperature Uniformity	≤±0.25℃
Numbers of Peltier	2
Block Temperature Accuracy	±0.2℃
Timer	1s to 59min59sec/0 Infinite
Heating Lid Temperature Range	30 to110℃
Heating Up Rate	5℃/s
Cooling Down Rate	4℃ /S
Gradient Temperature Range	30 to 105℃
Gradient Set Span	Maximum 30℃
Gradient Temperature Accuracy	±0.3℃
Gradient Temperature Uniformity	±0.3℃
Temperature Control ways	Block or Tube
Timer Increasing / Decreasing	- 599 to 599 S for Long PCR
Temperature Increasing / Decreasing	-9.9 to 9.9℃ for Touchdown PCR
LCD display	Touch screen display
Programs stored	200
Maximum Cycles	99
Maximum Steps	30
Power Failure Recovery	Yes
Pause Function	Yes
16℃ Temperature Holding Function	Infinite
Real-time operation status	Image-text displayed
Power	225W
Voltage Range	AC110V to 220V 50 to 60Hz
Dimension (L×W×H)	172×243×145 mm
Net Weight	2.3 kg

Features

• High-performance axial flow fan
• Adaptive elastic heating lid
• Advanced Peltier-based technology
• Excellent temperature uniformity
• Real-time temperature monitoring

Applications

• Gradient Thermal Cycler NGTC-500 is used to amplify DNA through PCR, enabling rapid and precise genetic analysis. It is widely used in medical diagnostics, molecular biology, forensics, and environmental testing.
