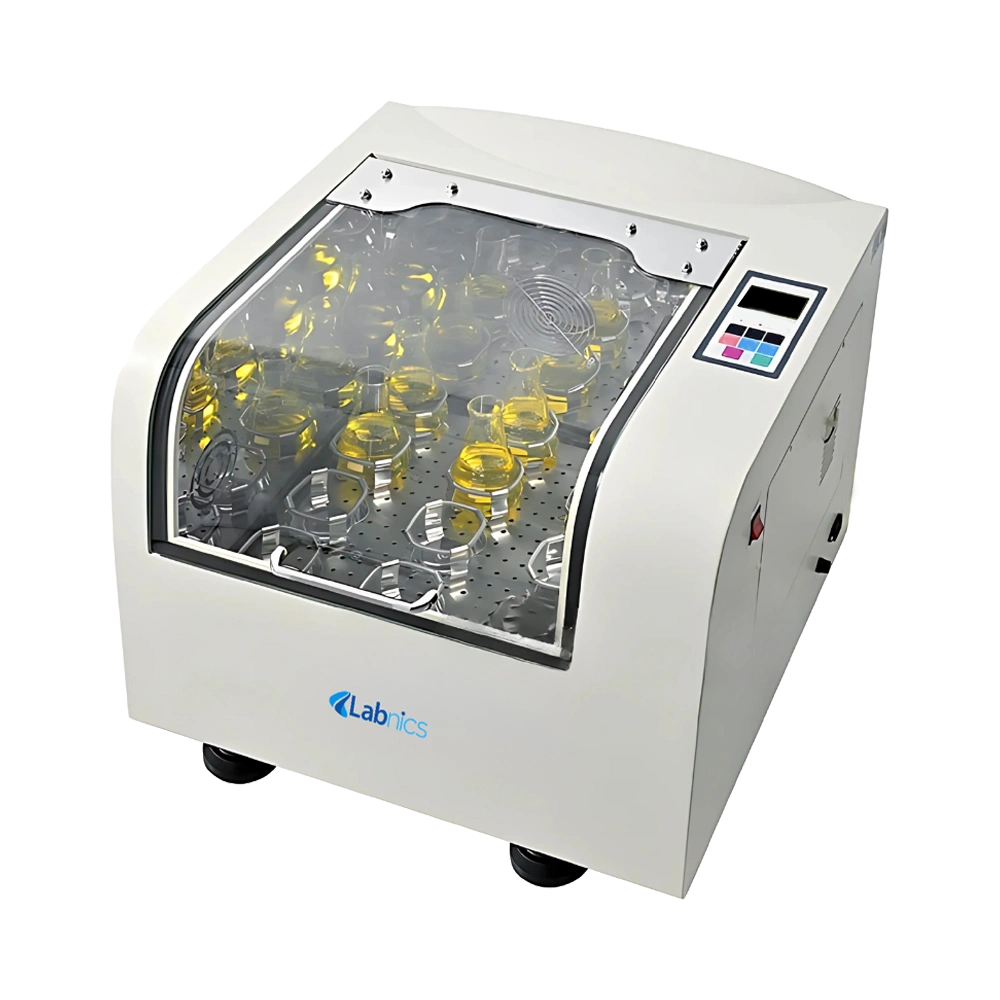

Benchtop Incubator Shaker NBIS-502 has a 65-liter capacity designed for efficient laboratory applications. It offers adjustable speeds from 30 to 300 rpm to suit diverse experimental needs. This unit delivers stable and reliable motion through a single-axis balanced drive. It ensures durability with an ABS special plastic housing that resists corrosion. Our shaker provides precise control of parameters using a P.I.D. microcomputer controller.
| Door opening method |
Door upward |
| Capacity |
65 liters |
| Internal usable height |
340 mm |
| Opening height |
920 mm |
| Maximum loading capacity |
1000ml×4
500ml×9
250ml×12
100ml×20
50ml×36 |
| Temperature range |
RT+5 to 60°C |
| Temperature accuracy |
±0.1°C |
| Temperature uniformity |
≤±1.0°C at 37°C |
| Ambient temperature range |
5 to 35°C |
| Temperature editing |
Repeat/Pace/8-segment curve editing |
| Rotation way |
Rotary/ reciprocating switchable |
| Rotation speed |
30 to 300 rpm (600 rpm) |
| Rotation accuracy |
±1 rpm |
| Throw |
0 to 50mm (stepless adjustable) |
| Timing range |
0 to 999.59H |
| Display |
LCD |
| Control |
P.I.D microcomputer |
| Circulation |
Forced circulation convection |
| Drive mode |
Single-axis balanced drive |
| Tray material/Flask clamp/Chamber material |
Stainless steel type 304 |
| Bearings |
Original imported double row bearings |
| Compressor |
Variable frequency compressor |
| Clamp types |
Stainless steel flask clamp, plastic clamp, spring, test tube rack, sticky plate, ELISA plate, etc |
| Heating power |
400W |
| Motor power |
80W |
| Whole machine power |
520W |
| Power supply |
220V±10%, 50/60Hz |
| Tray size |
370×330mm |
| Internal dimension |
410×450×350mm |
| External dimension |
618×585×585mm |
| Net weight |
65 kg |
FAQ for Benchtop Incubator Shaker NBIS-502
1: Can this Benchtop Incubator Shaker NBIS-502 support different types of clamps?
The Benchtop Incubator Shaker accommodates stainless steel flask clamps, plastic clamps, springs, test tube racks, sticky plates, and ELISA plates. It allows flexibility in handling different sample types and experimental requirements.
2: Does the Benchtop Incubator Shaker NBIS-502 come with certification options?
Our Benchtop Incubator Shaker offers optional 3Q certification for laboratories that require quality assurance and regulatory compliance. It adds confidence for facilities with strict operational standards.
3: What is the noise level during operation?
Our Benchtop Incubator Shaker runs with minimal mechanical friction loss, which reduces vibration and noise significantly. It creates a quieter lab environment while still delivering stable performance.
4: How should the Benchtop Incubator Shaker NBIS-502 be cleaned?
The Benchtop Incubator Shaker should be cleaned regularly using a soft cloth and mild detergent to remove dust and spills. It is recommended to avoid harsh chemicals that may damage the ABS plastic housing or stainless-steel interior.
5: What steps should be taken to maintain temperature accuracy?
It is important to keep the air circulation system and chamber free from obstructions for stable airflow. It also helps to calibrate the temperature controller periodically for consistent accuracy.
