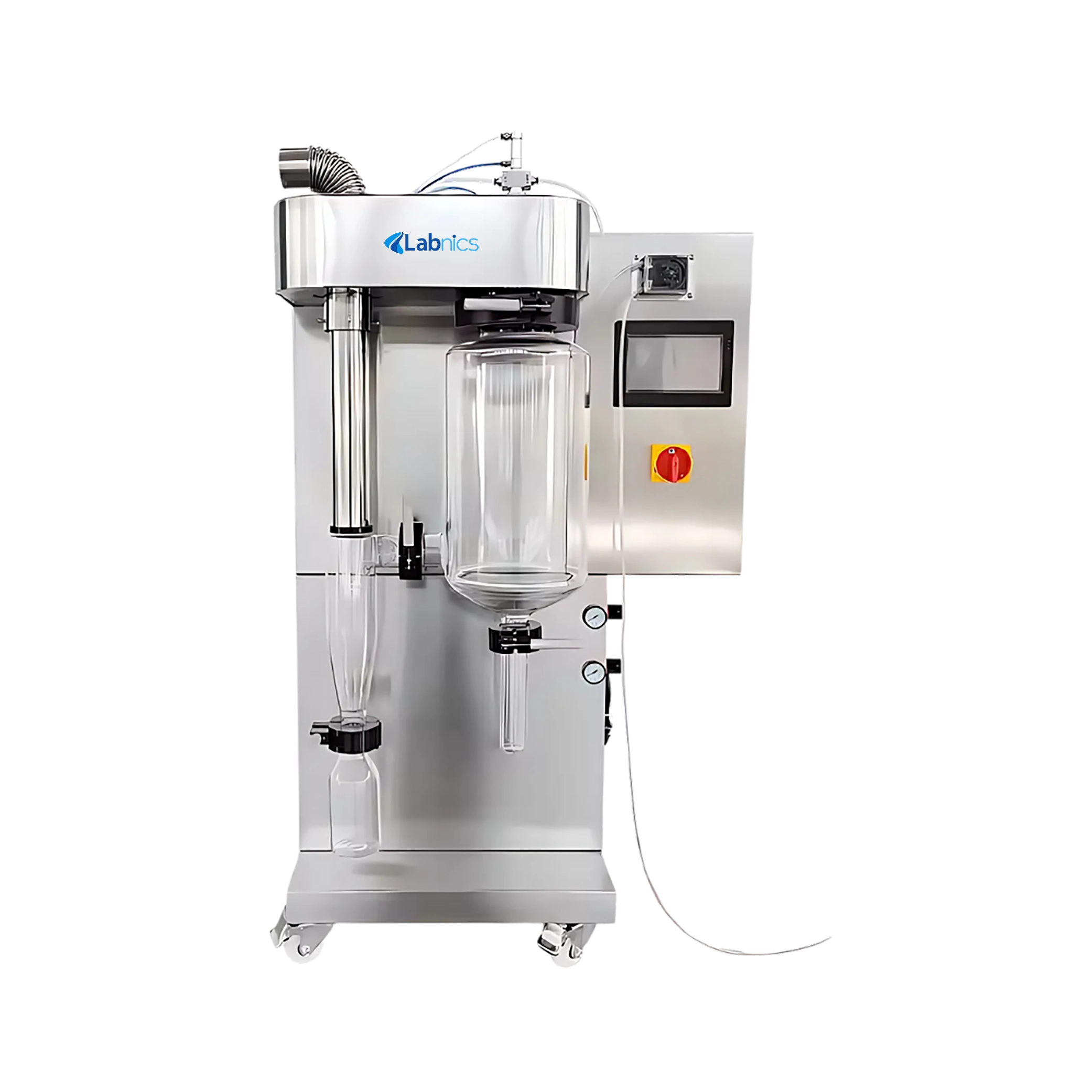

Spray Dryer NSPD-100 offers a maximum capacity ranging from 1500 to 2000ml per hour. It maintains temperature precision at ±1°C, ensuring highly accurate drying conditions. This unit has a high-tech nozzle that enhances efficiency by delivering uniform atomization of liquid materials. It comes with a stainless-steel shell and arc-corner design for durability and easy cleaning. Our spray dryer includes an LCD touch-screen display for real-time monitoring and control.
$4,800.00
Specifications
| Maximum capacity | 1500 to 2000ml/h |
| Temperature range of inlet air | 30°C to 280°C |
| Temperature range of outlet air | 40℃ to 120°C |
| Precision of temperature | ±1℃ |
| Drying time | 1 to 1.5 secs |
| Speed of squirmy pump | 30 to 2000ml/h |
| Dryer air consumption | 0 to 330m³/h, maximum pressure: 686Pa |
| Spray air consumption | 0 to 4.2m³/h, maximum pressure: 2 to 5 Pa |
| Spray system | 2 liquid nozzles with standard 1 mm jet options of 0.5/1.0/1.5/2.0/2.5mm |
| Spray direction | Downwards co-current |
| Power consumption | 3.5kW |
| Power supply | AC220V to 240V |
| Product dimension | 75×90×140cm |
| Packaging dimension | 75×90×140cm |
| Net weight | 102kg |
| Gross weight | 130kg |
Features
Applications
Standard Accessories
Drying chamber - 1pc
Cyclone - 1 pc
Fan - 1 pc
Peristaltic pump - 1 pc
Air compressor - 1 pc
Collection Bottle (500 ml) - 1 pc
Sample collection tube - 1 pc
Silicone tube (6 mm) - 1.5 mm
Nozzle - 1 pc
Black clamp - 1 pc
Nozzle cleaner - 1 pc
Power wire - 1 pc
Ask Expert
Labnics Spray Dryers produce fine and uniform powder, enhancing product quality and ease of handling. They ensure optimal drying with precise temperature control. They are designed with stainless steel, providing durability and resistance to corrosion. They include a digital display for real-time monitoring and control of key operational parameters. Our spray dryers are equipped with caster wheels for effortless mobility and flexible installation.
