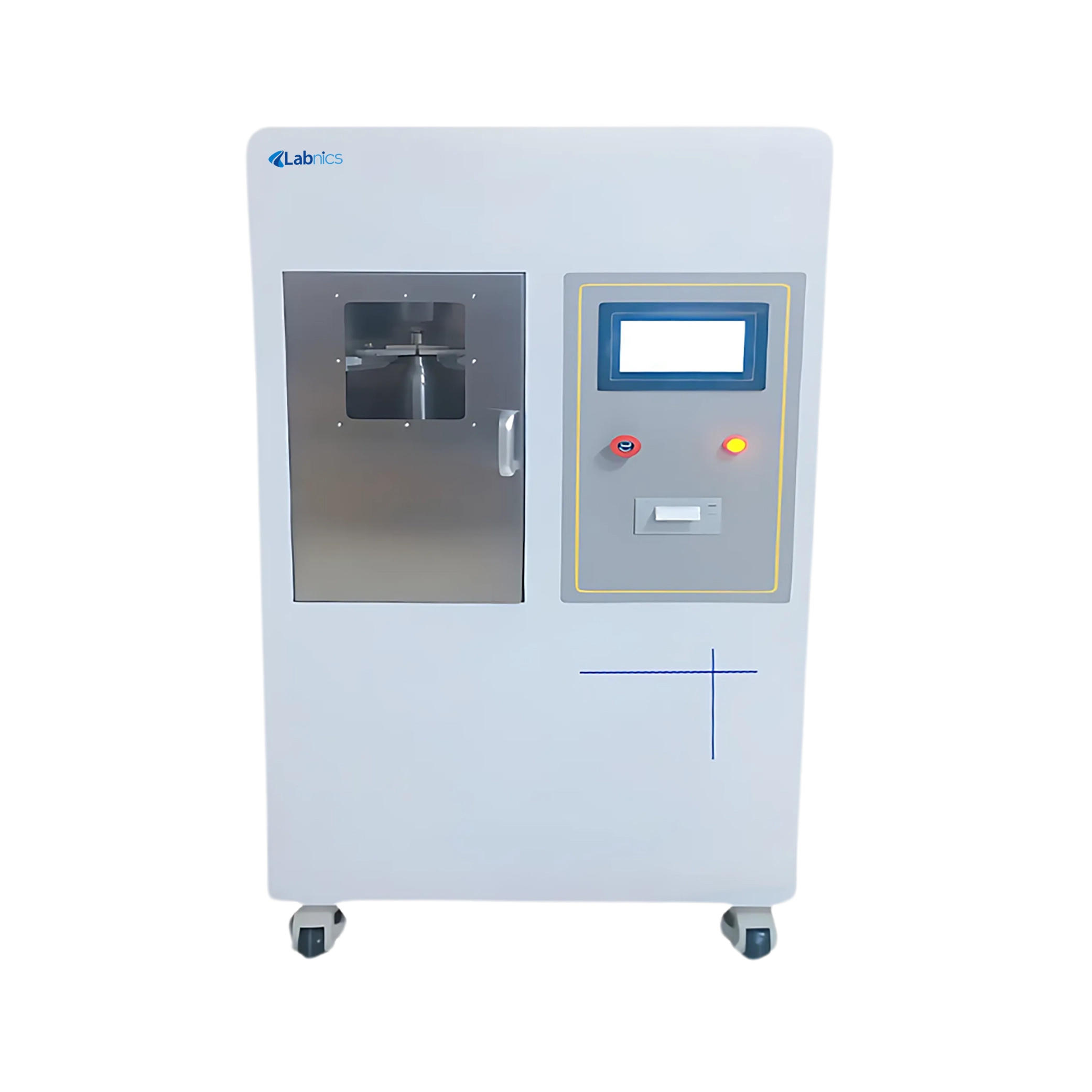

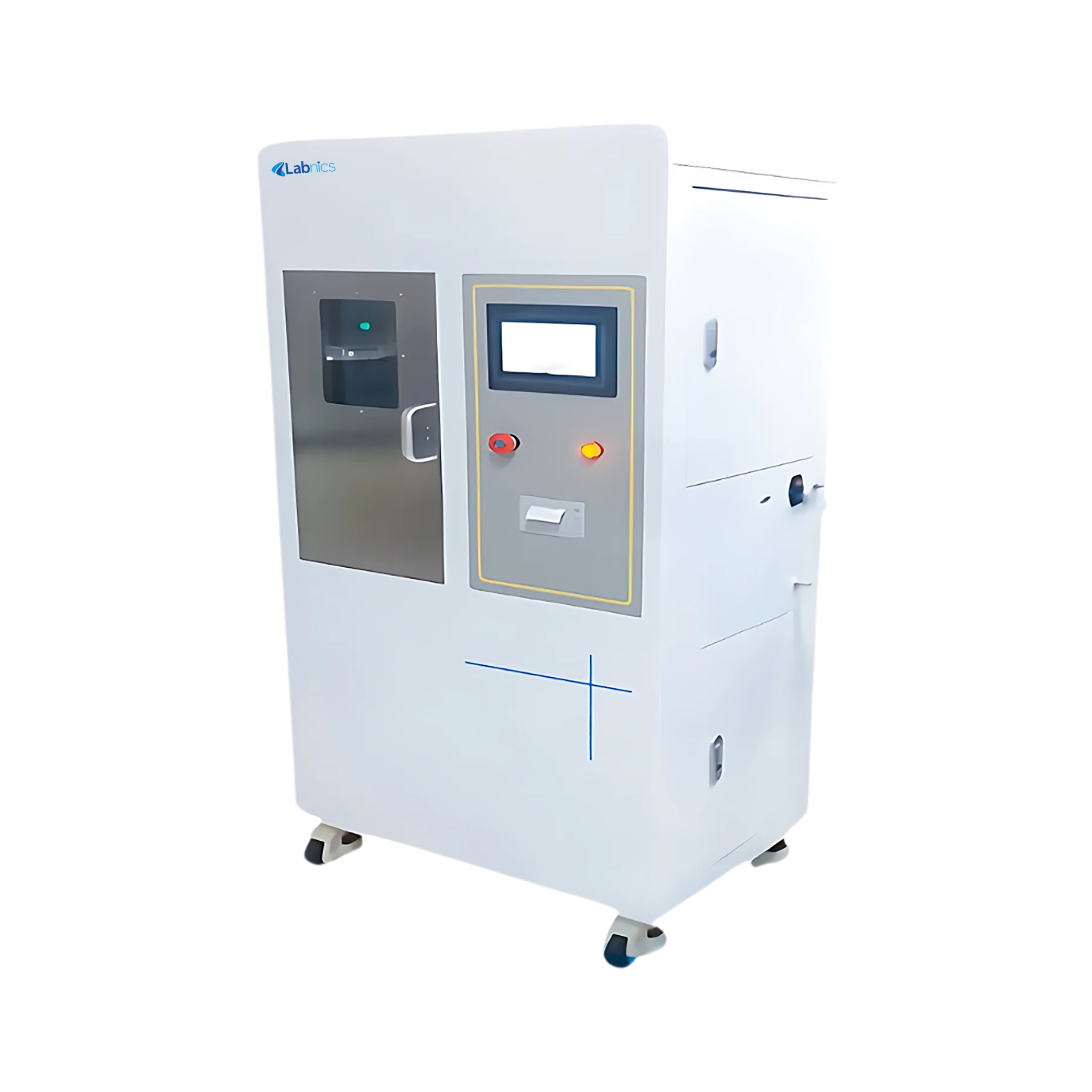

Bottle Burst Tester NBBT-100 sensor can accurately measure pressures from 0 to 6 MPa. It operates effectively within a temperature range of 5 to 50°C. It is equipped with a high-quality touch screen with one-button operation for improved functionality. This tester includes glass sheets and water collection boxes for enhanced flexibility. This unit is highly automated, ensuring efficient and operation for enhanced performance.
$7,425.00
Specifications
| Measuring sensor range | 0 to 6Mpa Safe overload 7.2Mpa |
| Comprehensive error | <0.5%FS |
| Display accuracy | 0.0001Mpa |
| Measurable bottlenecks | ∅ 26mm(Support customized fixtures according to bottles) |
| Operating temperature | 5 to 50℃ |
| Linear rate boost | 0.4-0.58±0.1Mpa/s (5.8±1bar/s), adjustable |
| Pressure medium | Water |
| Power consumption | 0.8KW（Built-in leakage protector) |
| Power supply | 220V/50HZ /Single phase |
| Dimensions | 600 × 400 × 1240 mm |
| Weight | 136kg |
Features
Applications
Standard Accessories
Fixture -φ26mm for the bottleAsk Expert
Bottle Burst Testers are designed to provide accurate pressure measurements, ensuring reliable testing results. They function effectively across a wide temperature range for versatility. Our units incorporate automated features that simplify processes for enhanced efficiency. They feature a high-quality touchscreen with simple one-button operation. These testers are equipped with a built-in micro printer for convenient printing of test results.
