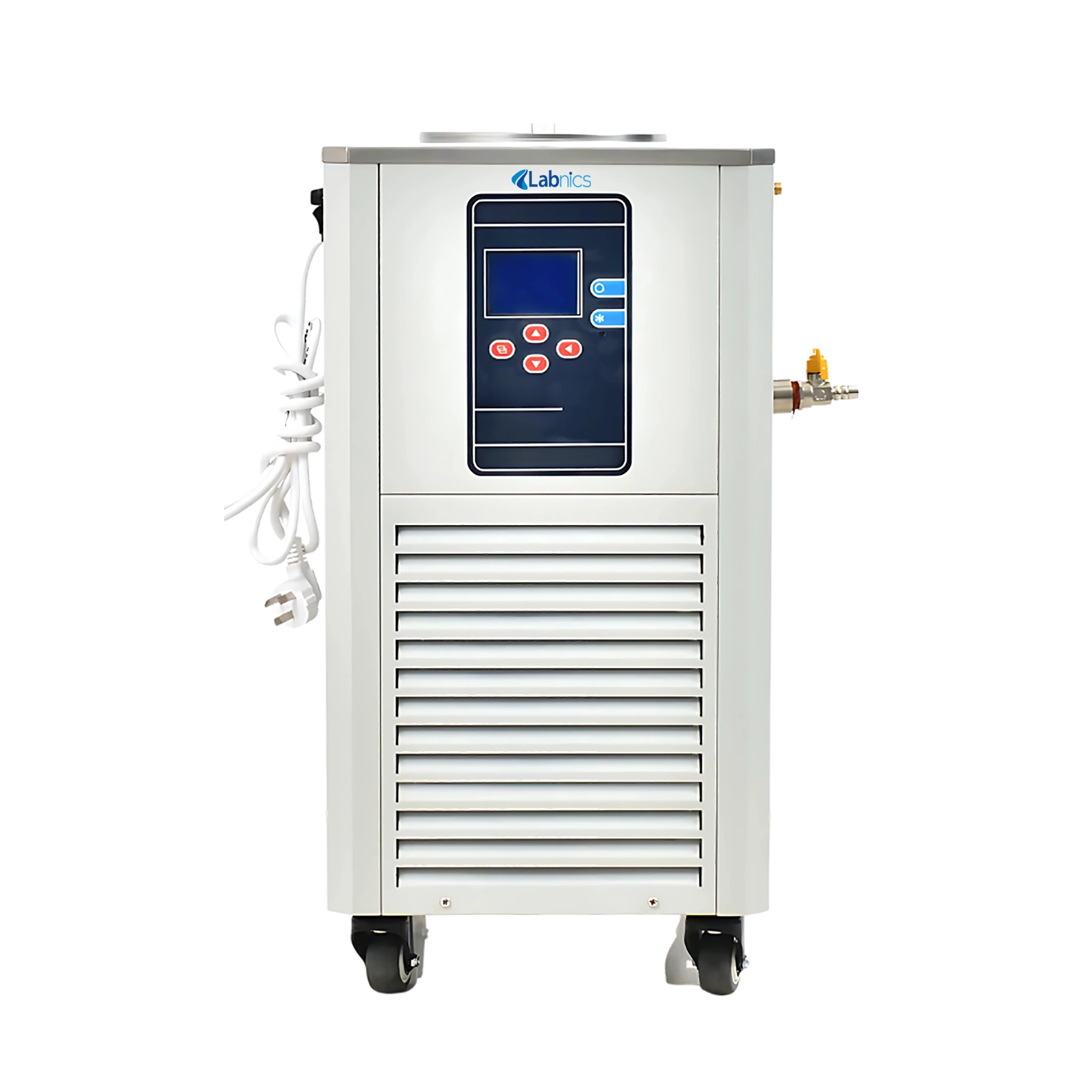

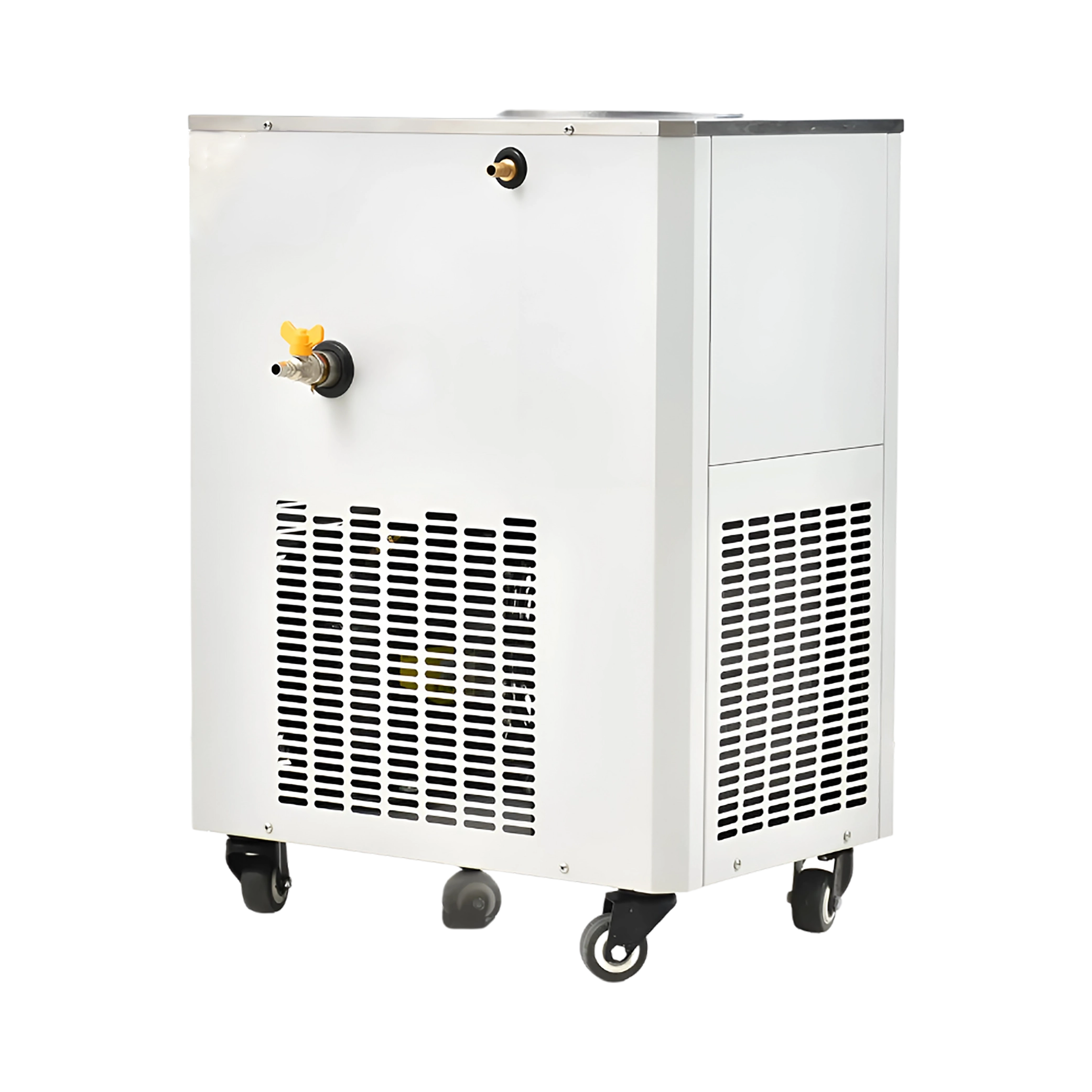

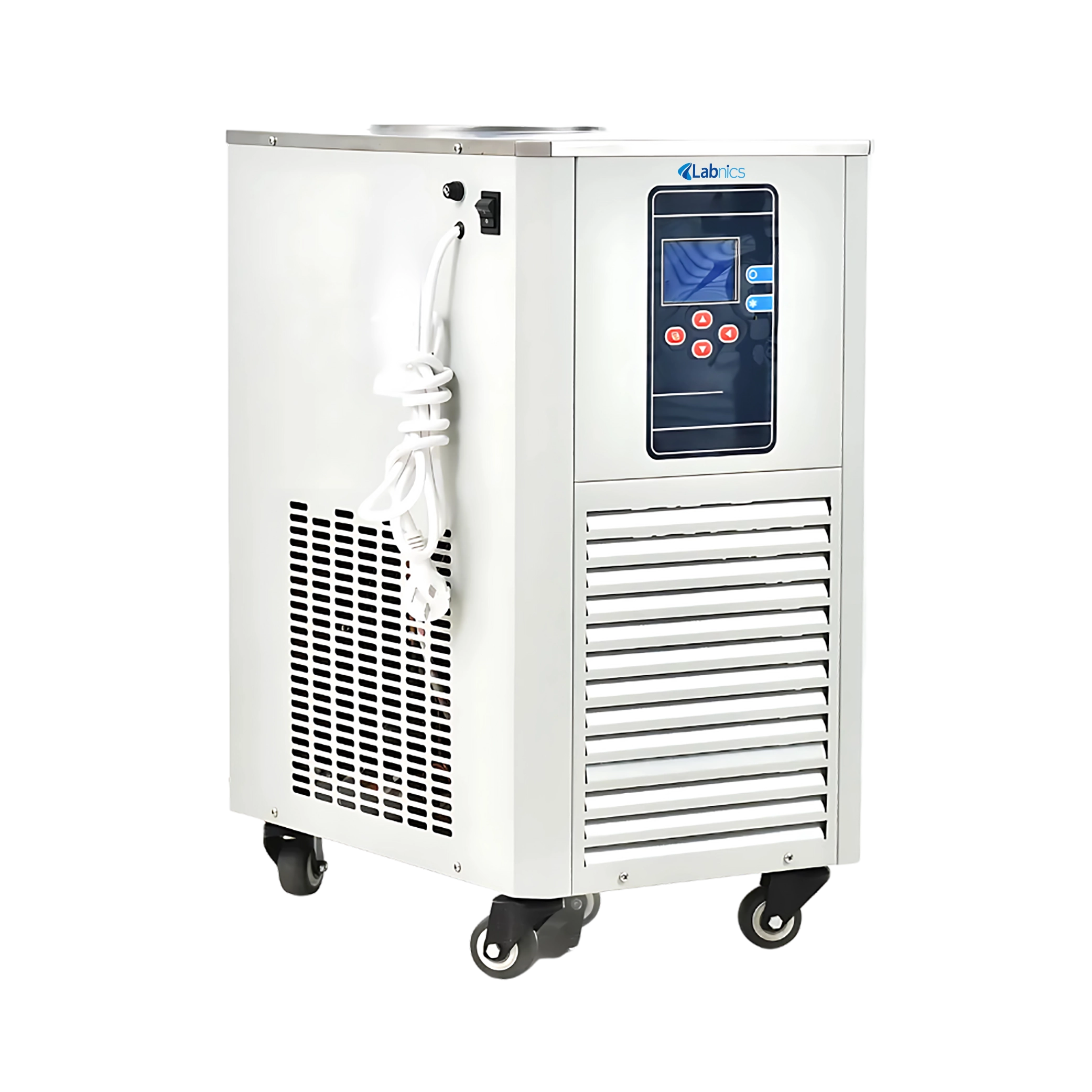

Recirculating Water Chiller Bath NRWC-400 offers a 10-litre capacity and a temperature range from -30°C to room temperature. It is equipped with a high-performance refrigeration compressor for reliable cooling. This unit has a digital display for easy monitoring and precise control. It also includes a pressure gauge at the refrigerant outlet for convenient tracking. Our recirculating chiller ensures stable performance with a corrosion-resistant design.
$2,600.00
Specifications
| Capacity | 10 L |
| Temperature Range | -30°C to RT |
| Temperature Accuracy | ±0.5°C |
| Cooling Capacity | 2010 W (25°C), 1650 W (0°C), 400 W (-30°C) |
| Temperature Sensor | PT100 |
| Refrigerant | R404A |
| Evaporator Type | Internally threaded copper pipe |
| Circulation Pipe Size | G1/2, OD11 mm |
| Fan Type | Outer Rotor Axial Fan |
| Cooling Type | Air-cooled |
| Lift Capacity | 6 m |
| Flow Rate | 25 L/min |
| Current | 3.4 A |
| Compressor Power | 0.75 kW |
| Power consumption | 1 kW |
| Power Supply | 220V, 50/60Hz |
| Dimensions | 540 × 420 × 800 mm |
| Weight | 57 kg |
Features
Applications
Ask Expert
FAQ for Recirculating Water Chiller Bath NRWC-400
1: Is the Recirculating Water Chiller Bath NRWC-400 environmentally friendly?
Yes, it uses fluorine-free refrigerants that minimize ecological impact while delivering effective and reliable cooling performance.
2: What materials are used in the construction of the Recirculating Water Chiller Bath?
The circulation tank and internal pipeline are made of 304 stainless steel, offering high corrosion resistance and durability under laboratory conditions.
3: What should I do if the Recirculating Water Chiller Bath does not reach the desired temperature?
Ensure the cooling load is within the unit’s capacity, check the refrigerant pressure gauge for abnormalities, and verify that the condenser is clean and well-ventilated.
4: What happens if there is a refrigerant leak or power surge?
The unit features multiple safety protections, including leakage detection and overcurrent control, to prevent damage and ensure safe operation.
5: Can I monitor refrigerant pressure in the Recirculating Water Chiller Bath NRWC-400?
Yes, the refrigerant outlet is equipped with a pressure gauge that provides real-time monitoring to detect any irregularities in flow or cooling performance.
Labnics Recirculating Chiller features automated water level detection, to maintain optimal water levels. They feature a compact design with a user-friendly touchscreen for easy monitoring. These units are equipped with a microprocessor PID controller for precise temperature control. Our recirculating chillers are built with durable steel construction for long-lasting performance. They come with high-efficiency pumps that ensure steady flow rates.
