Recirculating Chiller NRC-200 offers a tank capacity of approximately 14 liters, suitable for medium-scale applications. It operates within a range of -10°C to RT, enabling low-temperature processes. This unit features a closed-loop circulation design that ensures consistent performance and prevents coolant contamination. It connects to external devices through ϕ16 mm hose fittings. Our chiller includes a user-friendly LCD screen for easy monitoring and control.
$2,588.00
Specifications
| Tank capacity | About 14L |
| Temperature range | -10°C to RT |
| Room Temperature | 5 to 35°C |
| Temperature accuracy | ±0.1°C |
| Temperature sensor | PT100 |
| Room humidity | ≤70% ventilation |
| Flow | 20 to 40L/min |
| Lifting head | 4 to 6M |
| Pressure | ≤0.4MPa |
| Heat exchange area | 6.9㎡ |
| Air volume | 1030m³/h |
| Refrigerant | R22 |

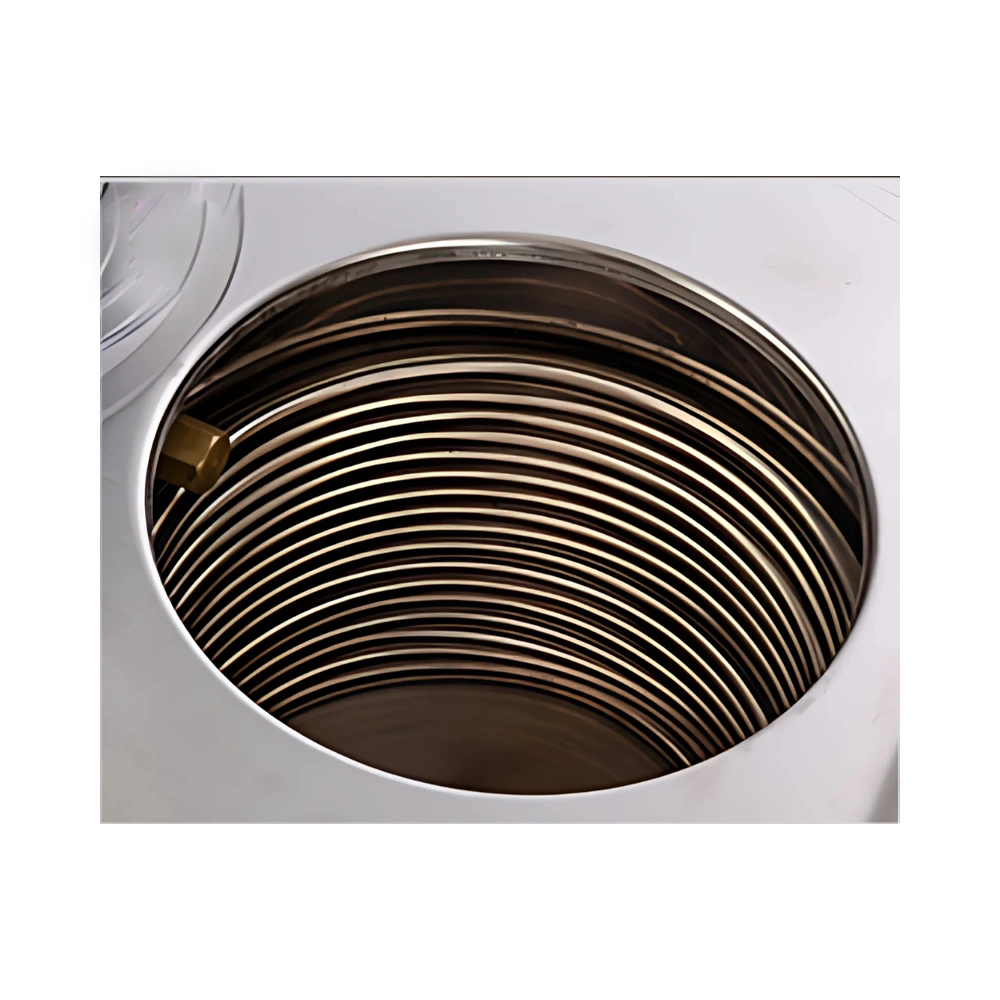

| Condensing coil | Φ10Copper tube nickel plated |
| Material | Cold plate spray anticorrosion |
| Compressor type | 1P |
| Compressor quantity | 1 |
| Screen display | LCD screen, key operation |
| Safety protection | Delay, overcurrent, overheating |
| Compressor power | 735W |
| Cooling capacity | 2324W |
| Total power consumption | 925W |
| Power supply | 220V 50Hz 1phase |
| Outer loop interface | Φ16mm |
| Tank dimension | Φ300×200 mm |
| Product dimension | 490×570×(730+500) mm |
| Packaging dimension | 620×500×930 mm |
| Weight | 58 kg |
| Packaging weight | 78 kg |
Features
Applications
Ask Expert
FAQ for Recirculating Chiller NRC-200
1: What type of cooling system does the Recirculating Chiller NRC-200 use?
The Recirculating Chiller uses a reliable compression refrigeration method combined with R22 refrigerant. This setup provides fast cooling and energy-efficient performance.
2: Does the Recirculating Chiller NRC-200 require a lot of maintenance?
Routine maintenance is minimal due to its closed-loop design and durable components. The structure is optimized for easy access when cleaning or checking parts.
3: Can the Recirculating Chiller be used continuously for long experiments?
Yes, our Recirculating Chiller is designed for continuous operation with stable performance, making it ideal for long-duration experiments and processes that require constant low-temperature conditions.
4: Is the Recirculating Chiller NRC-200 compatible with rotary evaporators?
Yes, our Recirculating Chiller can be paired with rotary evaporators to efficiently condense vapors, as well as other devices like vacuum freeze dryers and water vacuum pumps.
5: How often should I check the coolant level?
It is recommended to check the coolant level weekly during regular use. Refill when the level drops to avoid reduced cooling performance or pump damage.
Labnics Recirculating Chiller features automated water level detection, to maintain optimal water levels. They feature a compact design with a user-friendly touchscreen for easy monitoring. These units are equipped with a microprocessor PID controller for precise temperature control. Our recirculating chillers are built with durable steel construction for long-lasting performance. They come with high-efficiency pumps that ensure steady flow rates.
