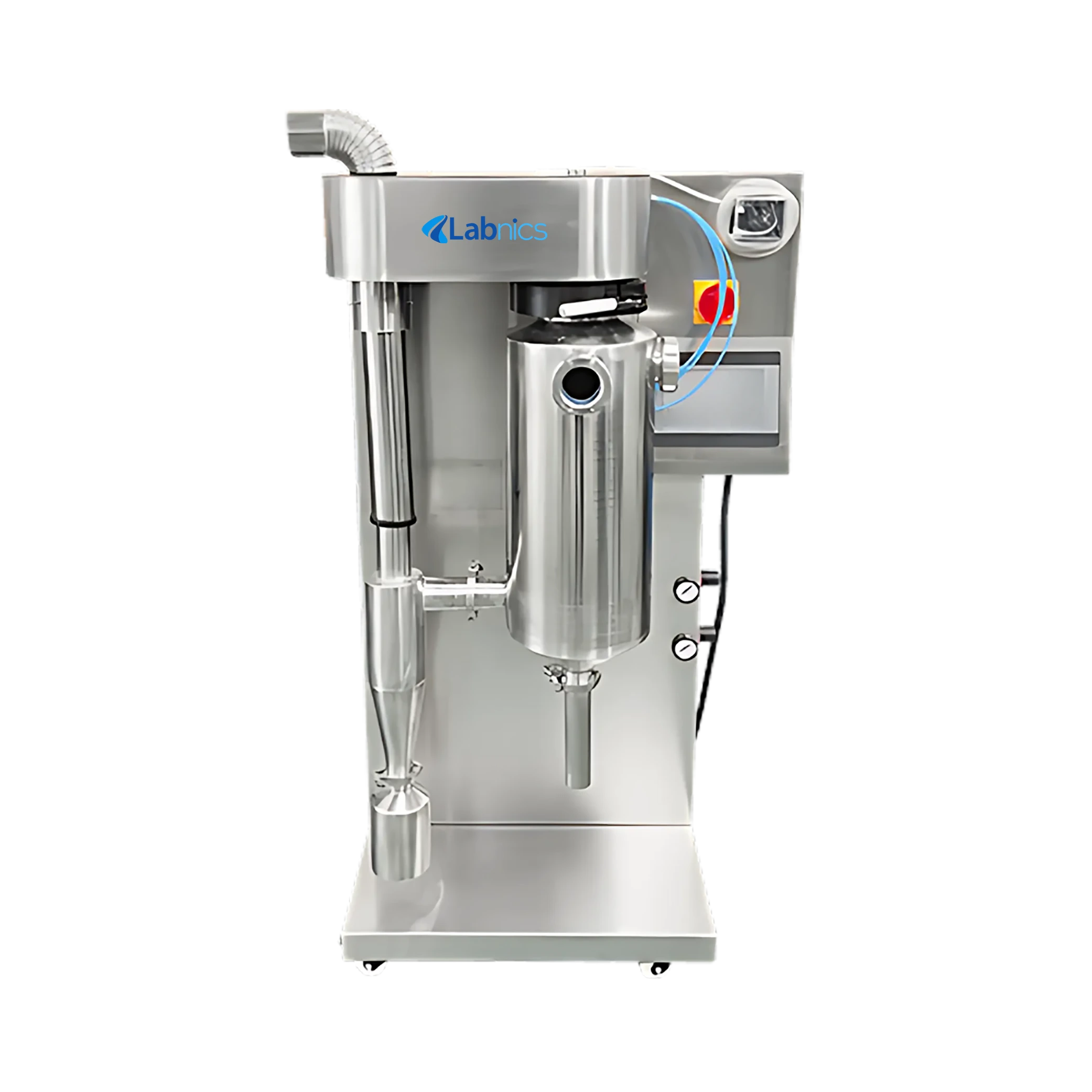

Spray Dryer NSPD-102 provides up to 2000ml/h of liquid for efficient drying performance. This dryer features a nozzle and delivers steady airflow at 5.6m³/min. It supports precise thermal control with inlet temperatures up to 300°C. It includes an integrated air compressor and fan for consistent performance. Our unit offers a compact and space-saving design, ensuring efficient drying in lab.
$3,800.00
Specifications
| Air Inlet temperature control | 30 to 300℃ |
| Air outlet temperature control | 30 to 150℃ |
| Evaporation | 2000ml/H |
| Maximum feeding capacity | 2000ml/H |
| Maximum air volume | 5.6m³/min |
| Maximum air Pressure | 1020Pa |
| Nozzle diameter | 1.00mm |
| Operating Temperature | 10 to 40°C |
| Air compressor power | 0.2KW |
| Electric heater power | 3KW AC220V |
| Fan power | 0.55kw |
| Dimension (L×W×H) | 800×650×1300 mm |
| Weight | 125KG |
Features
Applications
Ask Expert
Labnics Spray Dryers produce fine and uniform powder, enhancing product quality and ease of handling. They ensure optimal drying with precise temperature control. They are designed with stainless steel, providing durability and resistance to corrosion. They include a digital display for real-time monitoring and control of key operational parameters. Our spray dryers are equipped with caster wheels for effortless mobility and flexible installation.
