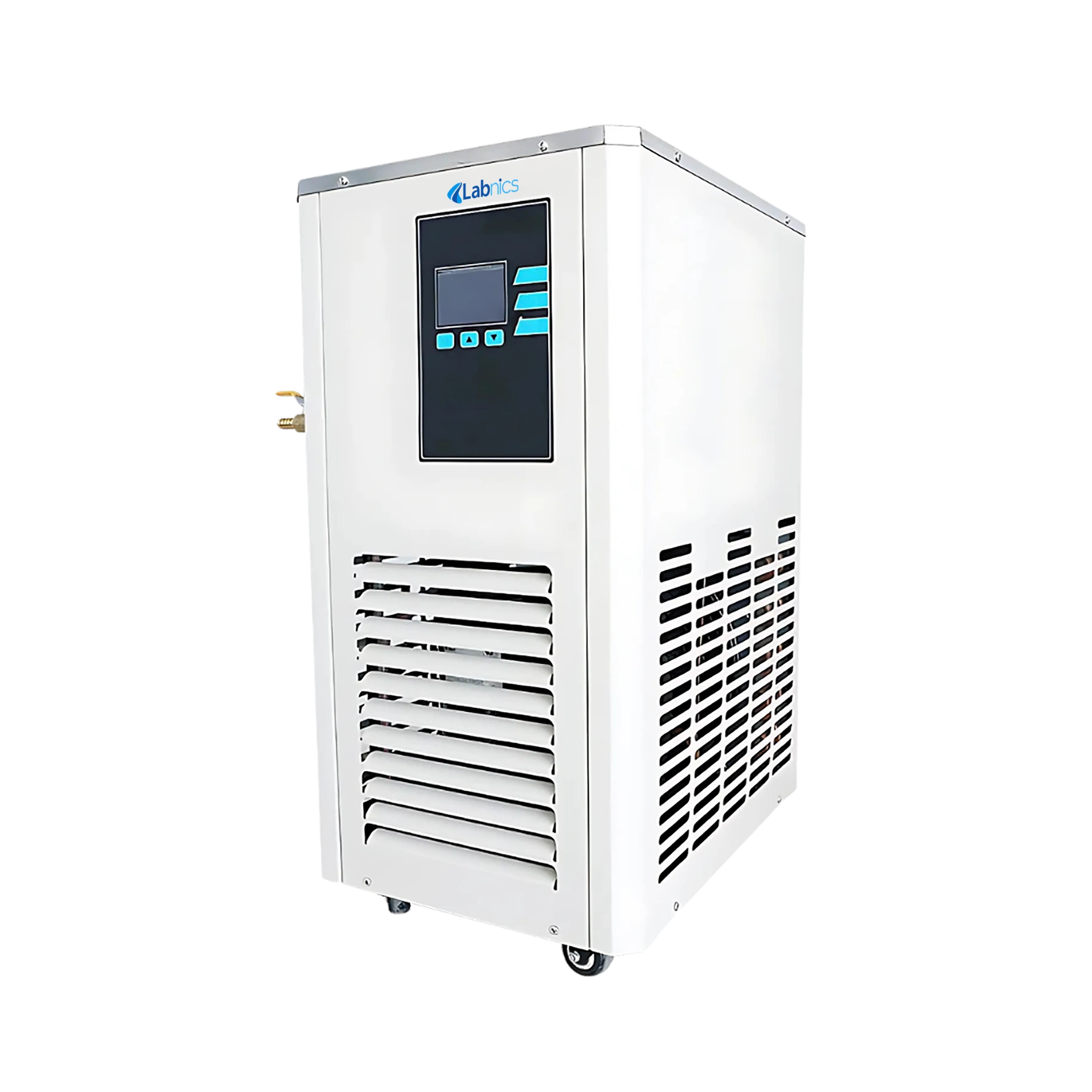

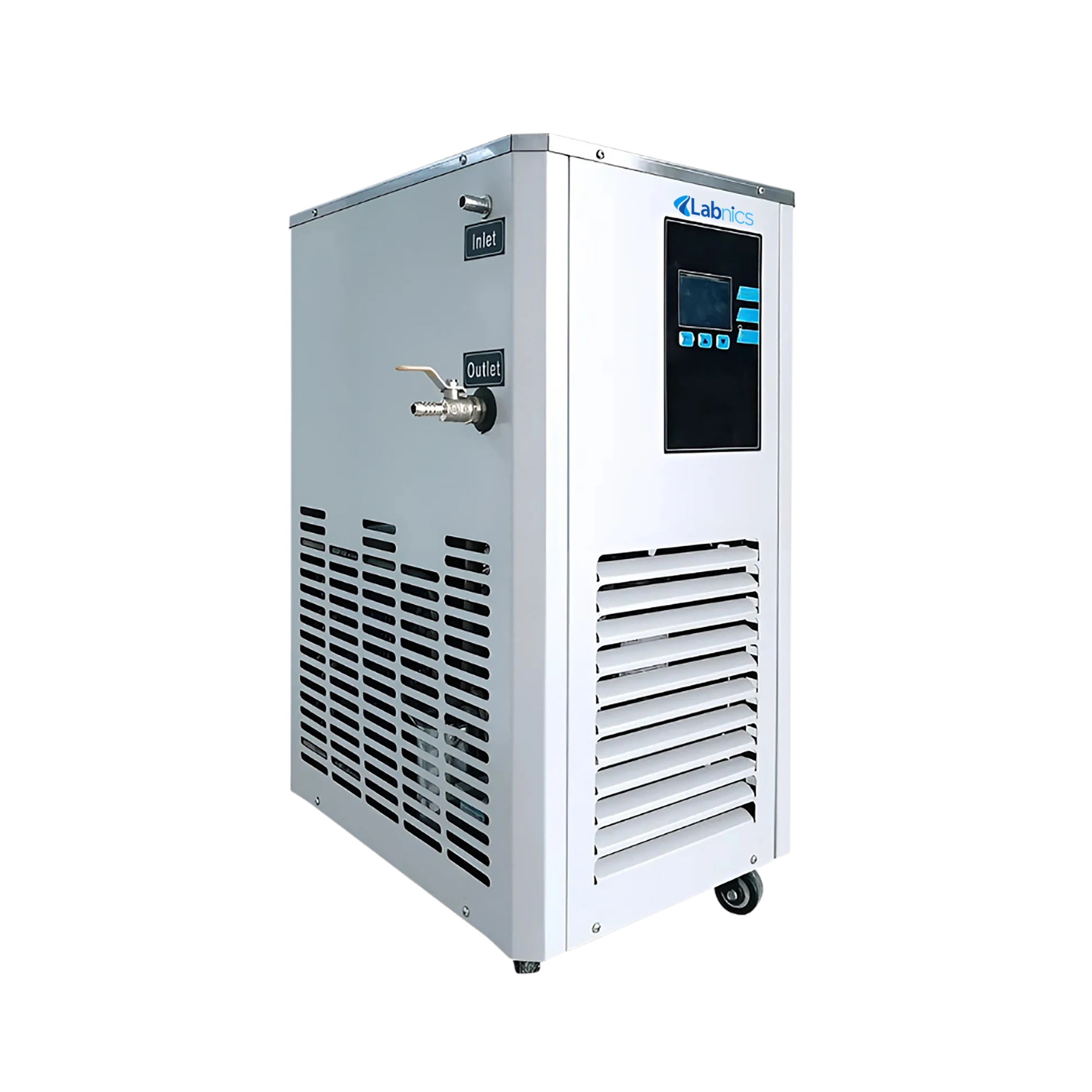

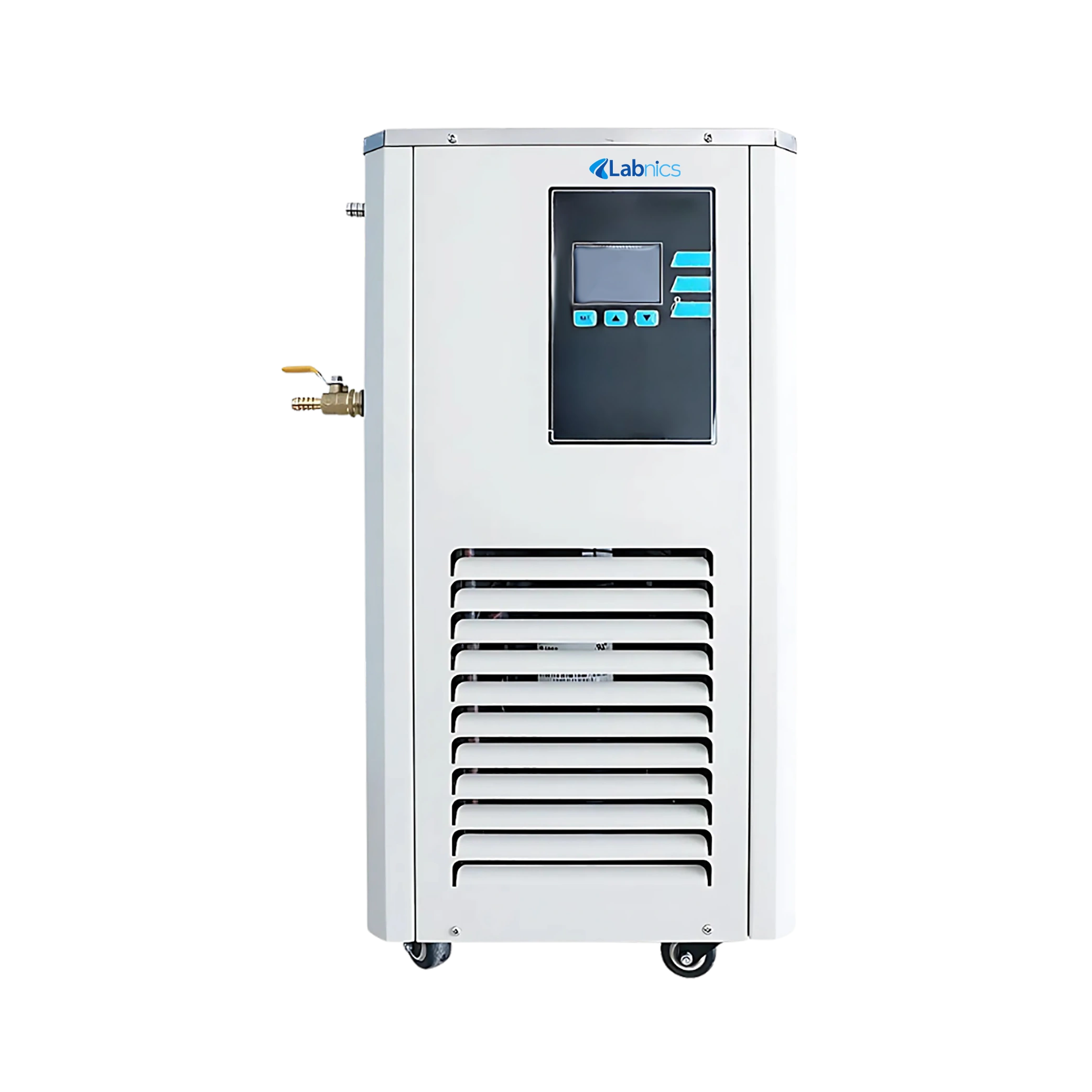

Recirculating Chiller NRC-105 operates within a broad temperature range from -120°C to room temperature. It maintains a high air volume of 1790m³/h for efficient heat exchange. This unit features a microcomputer control system for accurate temperature regulation. It is constructed using cold-rolled plate material with anti-corrosion coating for enhanced durability. Our chiller ensures safety through multiple protection mechanisms for secure operation.
$7,063.00
Specifications
| Tank capacity | About 6.8L |
| Temperature range | -120°C to RT |
| Room Temperature | 5 to 35°C |
| Temperature accuracy | ±0.1°C |
| Temperature sensor | PT100 |
| Room humidity | ≤70% ventilation |
| Flow | 20 to 40L/min |
| Lifting head | 4 to 6M |
| Pressure | ≤0.4MPa |
| Heat exchange area | 11.1㎡ |
| Air volume | 1790m³/h |
| Refrigerant | R404A |

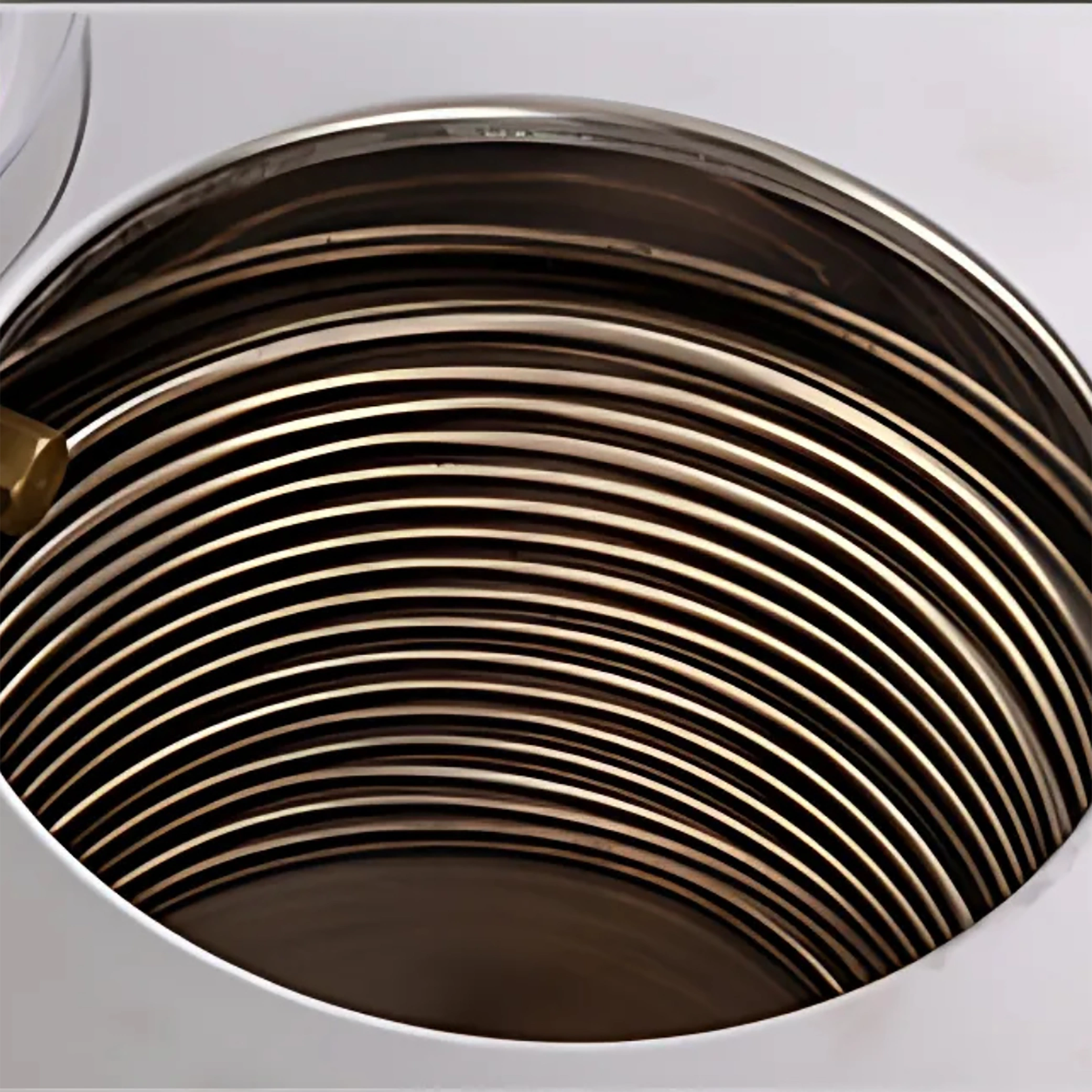

| Condensing coil | Φ8Copper tube nickel plated |
| Material | Cold plate spray anticorrosion |
| Compressor type | 1P |
| Compressor quantity | 3 |
| Screen display | LCD screen, key operation |
| Safety protection | Delay, overcurrent, overheating |
| Compressor power | 2205W |
| Cooling capacity | 6972W |
| Total power consumption | 2447W |
| Power supply | 220V 50Hz 1phase |
| Outer loop interface | Φ12mm |
| Tank dimension | Φ200×185 mm |
| Packaging dimension | 690×590×1250 mm |
Features
Applications
Ask Expert
FAQ for Recirculating Chiller NRC-105
1: What is the construction material of the Recirculating Chiller NRC-105?
The Recirculating Chiller is constructed from cold-rolled plate material with an anti-corrosion spray coating. This provides durability and resistance against harsh chemicals and moisture.
2: Can the Recirculating Chiller NRC-105 support external equipment?
Yes, our Recirculating Chiller features an external circulation interface and adjustable flow pump, making it compatible with rotary evaporators, vacuum pumps, and other laboratory setups.
3: What kind of compressor does the Recirculating Chiller use?
The Recirculating Chiller uses a high-quality, imported air-cooled closed compressor system. This ensures long-term reliability and stable cooling under continuous use.
4: How do I clean or flush the internal tank?
Drain the coolant completely and rinse the tank with clean water or a mild detergent solution. Avoid using harsh chemicals that may damage internal surfaces.
5: How do I ensure the long-term reliability of the Recirculating Chiller NRC-105?
Perform regular inspections, keep it clean, monitor coolant levels, and avoid exceeding recommended load limits. Timely attention to minor issues can prevent major repairs.
Labnics Recirculating Chiller features automated water level detection, to maintain optimal water levels. They feature a compact design with a user-friendly touchscreen for easy monitoring. These units are equipped with a microprocessor PID controller for precise temperature control. Our recirculating chillers are built with durable steel construction for long-lasting performance. They come with high-efficiency pumps that ensure steady flow rates.
