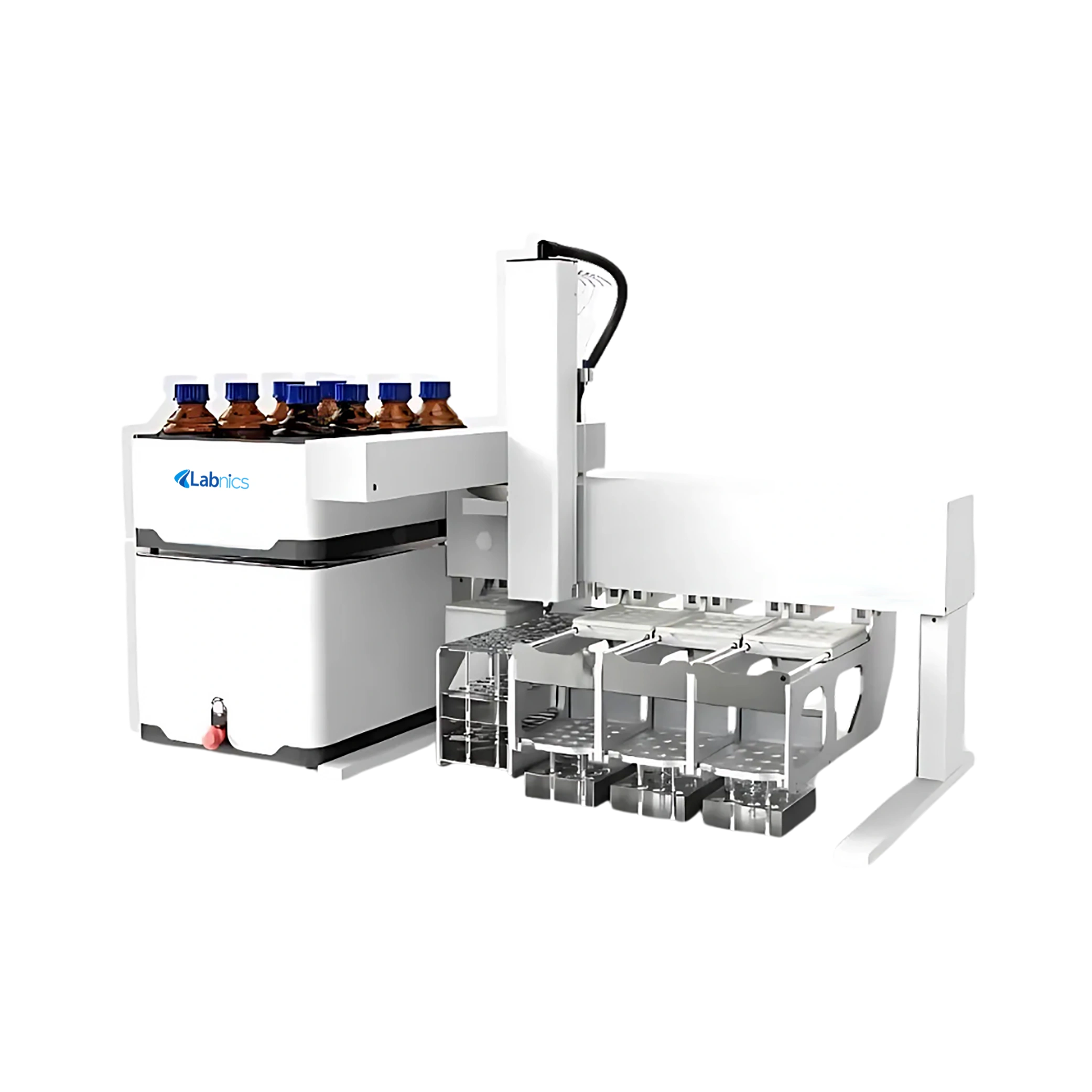

Automated Solid Phase Extractor NSPE-100 delivers single‑channel extraction at up to 120 mL/min with integrated nitrogen purge. This extractor includes integrated cleaning modes for optimal operation without manual effort. Our system features automated solvent tracking to ensure efficient resource use during extraction.It ensures secure sealing and supports flexible sample handling for diverse protocols. This system is easy to operate with an intuitive interface and built-in safety monitoring.
| Channels |
1 |
| Sample Volume |
0.1 mL to 20 mL |
| Sample Tube Volume |
10 to 20 mL, customizable |
| Column Pressure |
0 to 145 psi |
| Receiving Volume |
10 mL / 15 mL, other customized |
| Channel Independent Control |
Support |
| Pump Flow Rate |
0.1 to 120 mL/min |
| Sample Pump |
Precision Continuous Sample Pump |
| Types of Solvents |
8-seed, 500 mL Solvent Bottle |
| Puncture Sampling |
Supporting |
| Loading Mode |
X/Y/Z Three-Dimensional Manipulator |
| Accuracy of Manipulator |
0.01 mm |
| Sealing Technology |
Docking Seal & Pan-plug Seal |
| Extraction Mode |
Positive Pressure Extraction |
| Pressure Sensing |
Support, Overvoltage Alarm, Editable (5 to 145 psi) |
| Column Drying Method |
Nitrogen Purge |
| Waste Collection |
Branch collection, 3 channels |
| A/B in Series |
Support, A/B Pillar |
| Cleaning Mode |
Nitrogen, solvent, and stirring cleaning |
| Liquid Level Following |
Support |
| Solvent Residual Capacity |
Solvent deficiency hints |
| Working Temperature |
0 to 40°C |
| Working Humidity |
10 to 85% |
| Power Consumption |
60W |
| Power Supply |
220/110V, 50/60Hz |
| Dimensions (H×W×D) |
680×580×670 mm |
FAQ for Automated Solid Phase Extractor NSPE-100
1: Does the Automated Solid Phase Extractor NSPE-100 support programmable extraction methods for different protocols?
Yes, the Automated Solid Phase Extractor allows users to set and store custom extraction programs, ensuring consistent performance across various sample types.
2: Can Automated Solid Phase Extractor NSPE-100 work with all standard SPE cartridges and solvents?
Yes, the Automated Solid Phase Extractor supports commonly used solvents and cartridge types, allowing labs to continue workflows without needing new consumables.
3: How does the nitrogen purge function improve extraction outcomes?
Labnics uses nitrogen drying to eliminate moisture and solvent residue, improving consistency and preventing cross-contamination between runs.
4: What’s the best way to maintain the Automated Solid Phase Extractor NSPE-100 for long-term use?
Our system's automated cleaning reduces manual work, but occasional flushing and checking for blockages help extend operational life.
5: Does the Automated Solid Phase Extractor NSPE-100 include safety features for pressure or solvent issues?
Labnics integrates smart alarms and pressure sensors that alert users to abnormalities, helping ensure stable and secure extraction conditions.
6: What features make Labnics Solid Phase Extractors efficient for routine use?
Labnics Solid Phase Extractors include pressure control, solvent routing, and automation to streamline consistent extractions across workflows.
7: Are Labnics Solid Phase Extractors compatible with all common cartridge types?
Our Solid Phase Extractors are built to support standard SPE cartridges and multiple solvent lines for versatile sample preparation.
8: How do Labnics Solid Phase Extractors reduce manual intervention?
These use programmable steps, auto-cleaning functions, and flow control to minimize user interaction and prevent operation errors.
9: Can Labnics Solid Phase Extractors maintain consistent output over time?
These are designed with integrated sensing and method storage to ensure long-term reliability and repeatable extraction performance.
