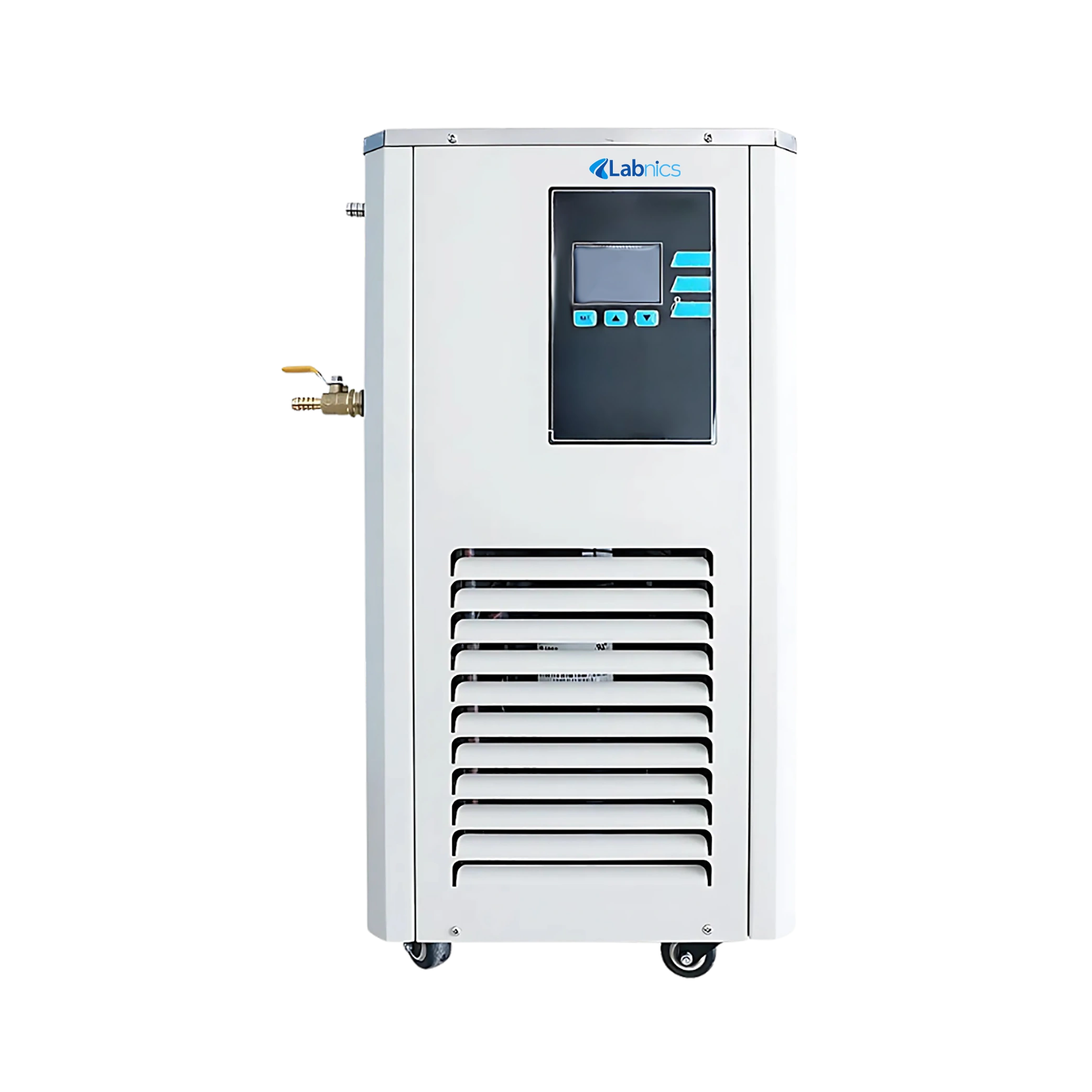

Recirculating Chiller NRC-102 offers a temperature range of -30°C to room temperature for precise cooling. It delivers a flow rate of 20 to 40 liters per minute for efficient circulation. This unit uses an air-cooled closed compressor for reliable performance. It features a 6.8-liter tank capacity for continuous operation. Our chiller includes multiple safety protections to ensure safe and stable usage.
$2,588.00
Specifications
| Tank capacity | About 6.8L |
| Temperature range | -30°C to RT |
| Room Temperature | 5 to 35°C |
| Temperature accuracy | ±0.1°C |
| Temperature sensor | PT100 |
| Room humidity | ≤70% ventilation |
| Flow | 20 to 40L/min |
| Lifting head | 4 to 6M |
| Pressure | ≤0.4MPa |
| Heat exchange area | 4.2㎡ |
| Air volume | 760m³/h |
| Refrigerant | R22 |
| Condensing coil | Φ8Copper tube nickel plated |
| Material | Cold plate spray anticorrosion |
| Compressor type | 1P |
| Compressor quantity | 1 |
| Screen display | LCD screen, key operation |
| Safety protection | Delay, overcurrent, overheating |
| Compressor power | 735W |
| Cooling capacity | 2324W |
| Total power consumption | 887W |
| Power supply | 220V 50Hz 1phase |
| Outer loop interface | Φ12mm |
| Tank dimension | Φ200×185 mm |
| Product dimension | 423×485×(760+400) mm |
| Packaging dimension | 570×460×790 mm |
| Weight | 46 kg |
| Packaging weight | 50 kg |
Features
Applications
Ask Expert
FAQ for Recirculating Chiller NRC-102
1: Can the Recirculating Chiller NRC-102 handle high airflow for effective cooling?
Our Recirculating Chiller handles an air volume of 760 m³/h, which ensures rapid and efficient heat dissipation. This supports stable performance even during long operational periods.
2: What kind of materials is the Recirculating Chiller NRC-102 made from?
Our Recirculating Chiller is constructed using cold-rolled steel plates with an anti-corrosion spray coating. This provides long-term durability and resistance to harsh working environments.
3: Is the Recirculating Chiller NRC-102 easy to operate and monitor?
Our Recirculating Chiller includes a digital control system with an LCD screen, making it easy to set and monitor temperature parameters. The user-friendly interface allows efficient control without complex programming.
4: How often should the Recirculating Chiller NRC-102 be cleaned?
It is recommended to clean the exterior and air vents every 2 to 4 weeks to prevent dust buildup and ensure proper airflow. Internal components like the water tank and circulation lines should be flushed every few months, depending on usage.
5: How can I prevent scale buildup or corrosion inside the tank?
It is best to use deionized or distilled water to reduce mineral deposits. The system is made with anti-corrosion materials, but regular flushing of the tank and lines can help prevent buildup.
Labnics Recirculating Chiller features automated water level detection, to maintain optimal water levels. They feature a compact design with a user-friendly touchscreen for easy monitoring. These units are equipped with a microprocessor PID controller for precise temperature control. Our recirculating chillers are built with durable steel construction for long-lasting performance. They come with high-efficiency pumps that ensure steady flow rates.
