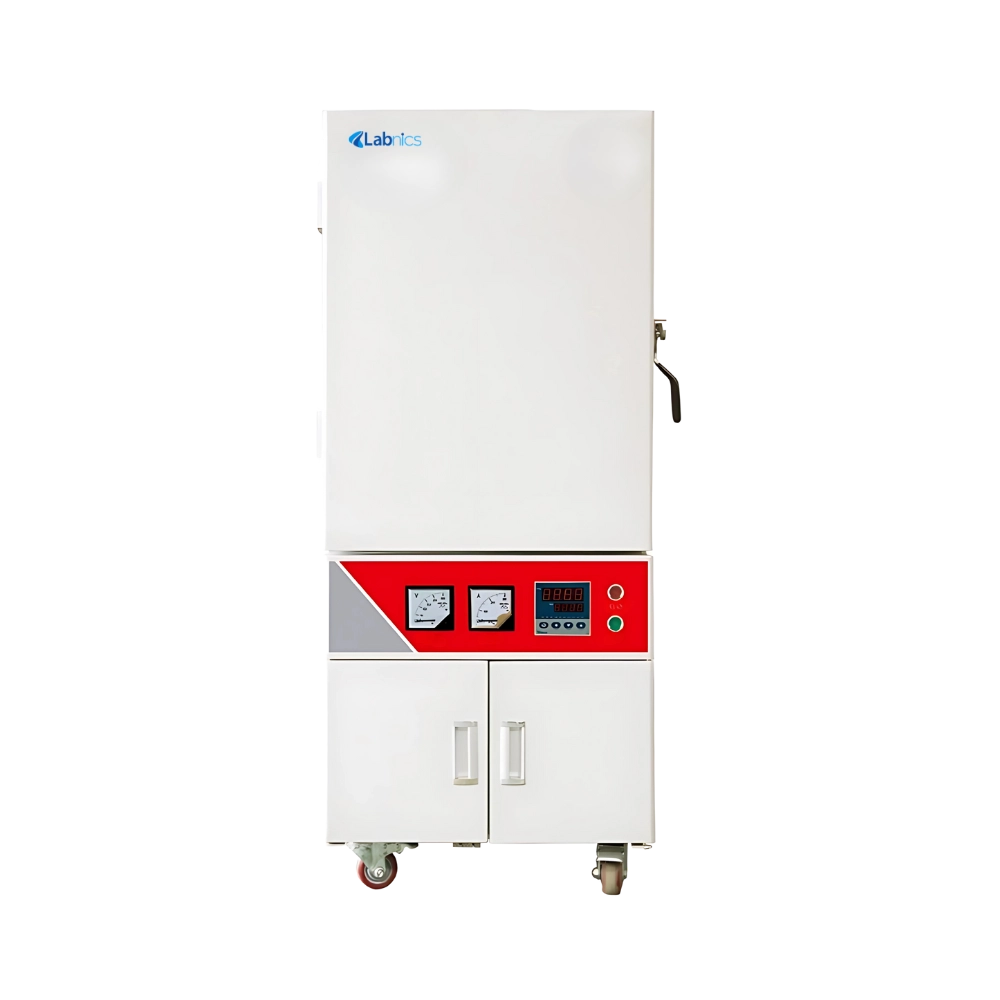

Muffle Furnace NMF-400

Muffle Furnace NMF-400 features a 5.4 L capacity and a maximum temperature of 1500°C. It offers programmable temperature control for precise heating adjustments. This unit is equipped with multiple cooling fans to prevent overheating. It includes reinforced hinges for stable and secure door locks. Our Muffle Furnace has a ceramic fiber construction that makes it lightweight and energy efficient.

---

$10,825.00

Buy Now Catalog

Specifications

Capacity	5.4 L
Working Temperature Range	RT+30 to 1600°C
Maximum Operating Temperature	1500°C
Heating Rate	30 to 50°C/min
Temperature Fluctuation	±2°C
Power Consumption	8 kW
Power Supply	380 V
Internal Dimensions	150 × 300 × 120 mm
External Dimensions	650 × 870 × 1565 mm
Net Weight	228 kg
Gross Weight	243 kg

Features

• User-friendly interface

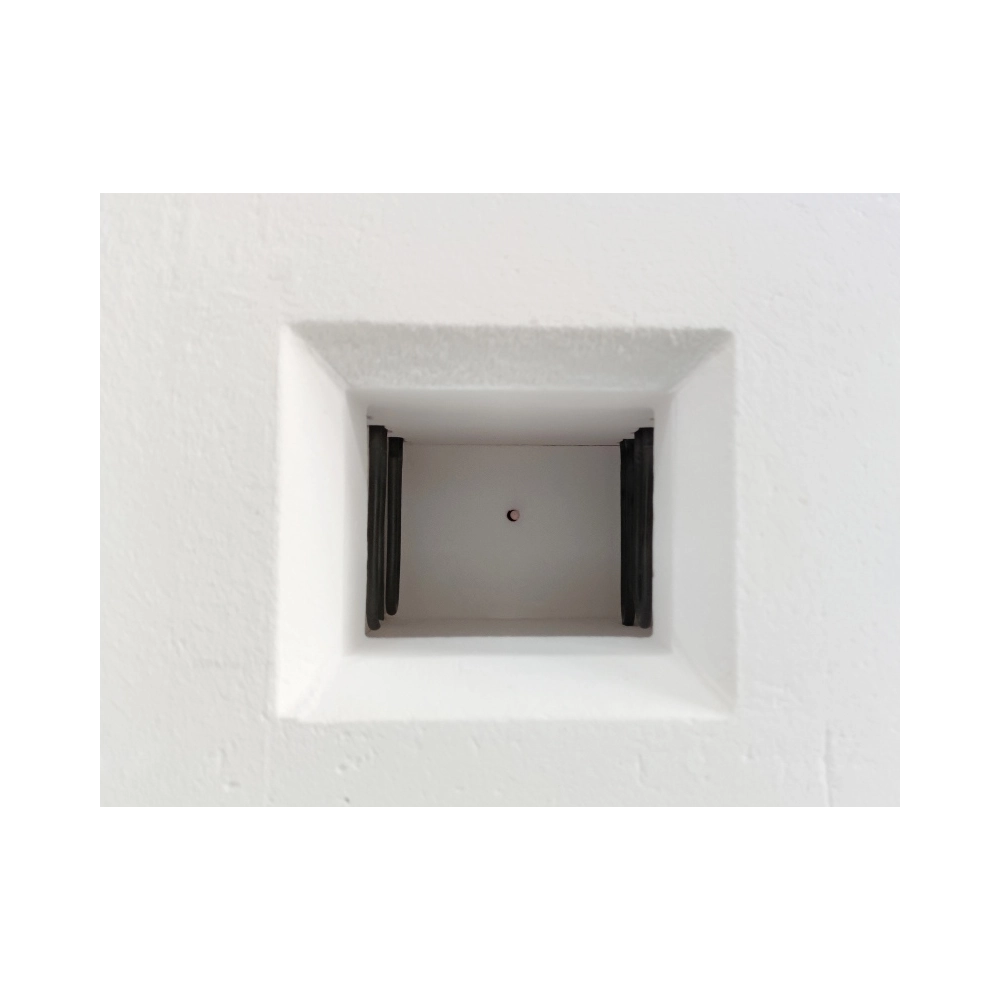

• Well-insulated chamber
• Multiple temperature control programs
• Easy maintenance
• Compact design

Applications

• Muffle Furnace NMF-400 is used for heat treatment, sintering, ashing, and calcination in material testing, ceramics, and metallurgy. It also supports chemical, pharmaceutical, and environmental applications.

Optional Accessories

Smart touchscreen controller

Printer

Chimney
