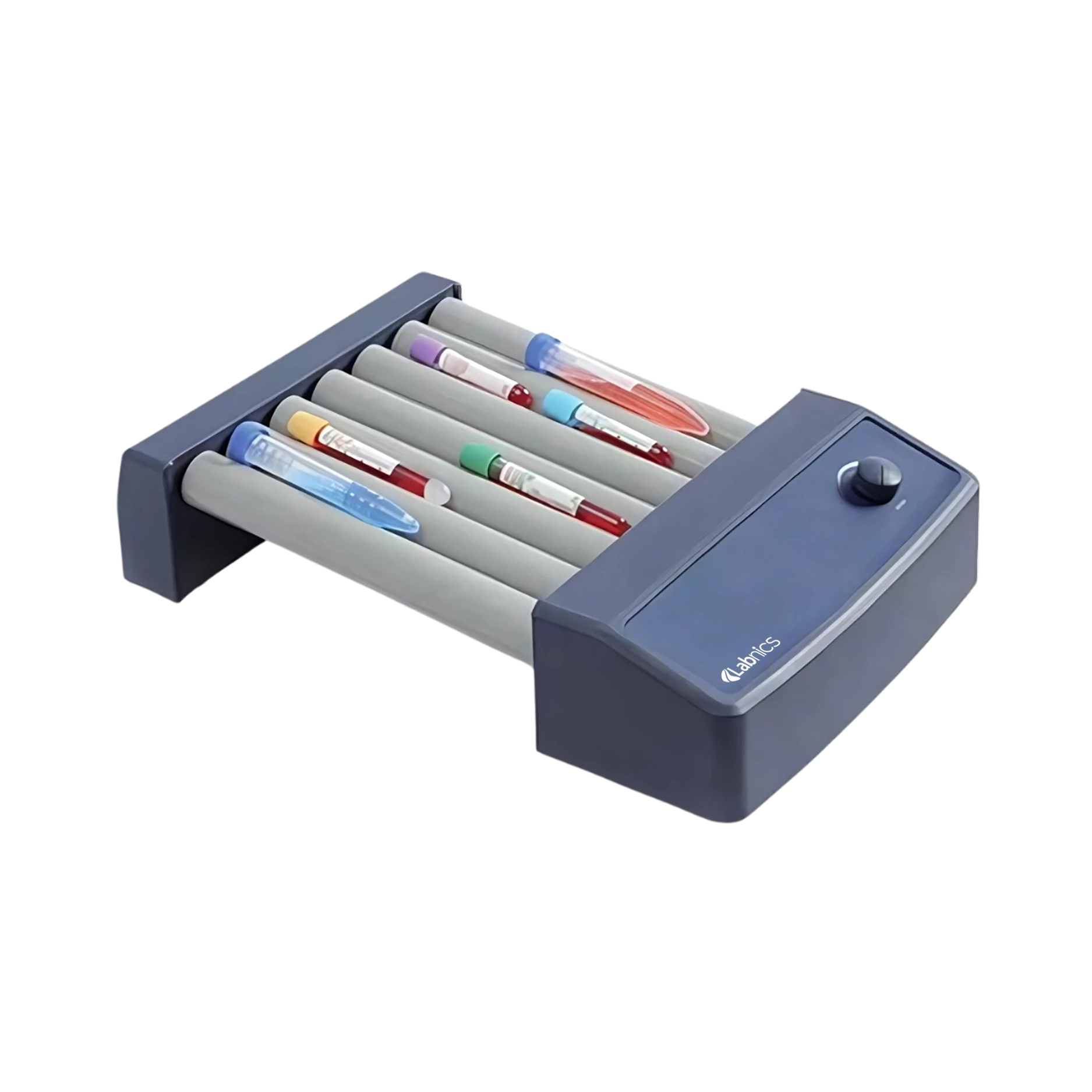

Tube Roller Mixer NTRM-103 supports a speed range of 20 to 80 rpm for consistent and precise sample agitation. It offers dual rolling and swinging modes to ensure uniform mixing. This unit features 7 rollers for efficient tube placement in a compact structure. It operates reliably within an ambient temperature range of 5°C to 50°C. Our roller mixer is powered by a high-performance DC brushless motor for smooth and quiet operation.
$1,113.00
Specifications
| Speed range | 20 to 80rpm |
| Operation method | Roll + swing |
| Swing angle | 22mm±1mm |
| Running mode | Constant |
| Roll length | 236 mm |
| Max. loading weight | 1.5 kg |
| Permissible ambient temperature | 5 to 50℃ |
| Permissible relative moisture | 80% |
| Protective class | IP 21 |
| Output power | 10W |
| Power supply | AC220V±10%, 50/60Hz |
| Product dimension | 410×270×100mm |
| Net weight | 4.5kg |
Features
Applications
Ask Expert
FAQ for Tube Roller Mixer NTRM-103
1: What types of samples can be mixed using this Tube Roller Mixer NTRM-103?
The Tube Roller Mixer is ideal for mixing a wide range of biological and chemical samples, including blood tubes, viscous materials, and suspensions. The consistent motion helps maintain sample quality during extended mixing processes.
2: Is the operation mode adjustable or fixed?
The Tube Roller Mixer operates in a constant mode but supports both rolling and swinging actions simultaneously. This ensures uniform motion throughout the process.
3: Can the roller length be adjusted?
Yes, the roller length can be extended within a certain range to fit more tubes or accommodate different tube sizes. This flexibility helps adapt the unit to specific lab needs without requiring additional equipment.
4: How often does the Tube Roller Mixer NTRM-103 require maintenance?
Routine maintenance is minimal, but it’s recommended to inspect the rollers and motor area periodically for dust or sample residue. Regular checks help maintain smooth operation and extend the device’s service life.
5: What should be done if the Tube Roller Mixer NTRM-103 starts making noise or vibrates unusually?
Turn off the Tube Roller Mixer and check for uneven tube placement or overloading. If the issue persists, contact technical support for diagnosis and service.
Labnics Tube Roller Mixer provide gentle and effective motion for consistent results. They offer continuous and timed operation modes, providing versatility for various mixing needs. These units feature a high-performance motor for stable and reliable operation. Our mixers include digital controls for easy adjustments, ensuring efficient and optimal performance. They accommodate different tube sizes, making them suitable for a range of applications.
