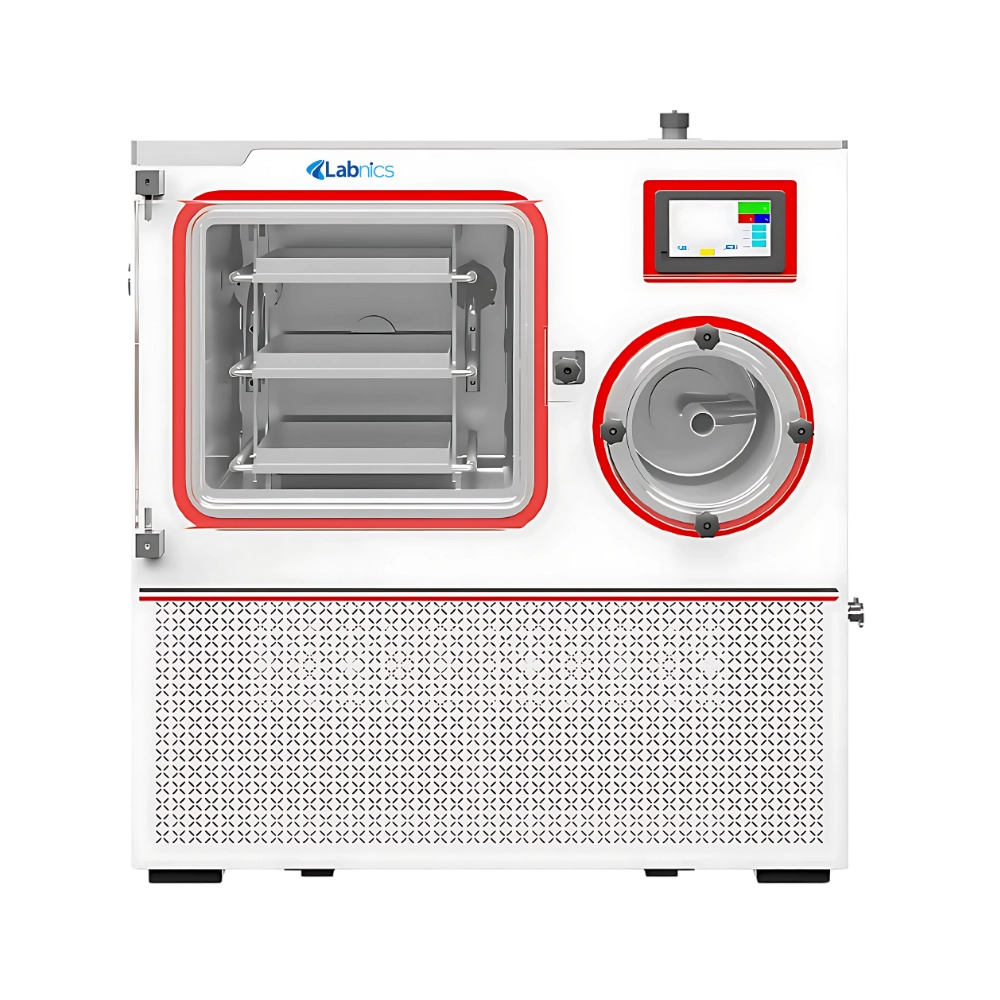

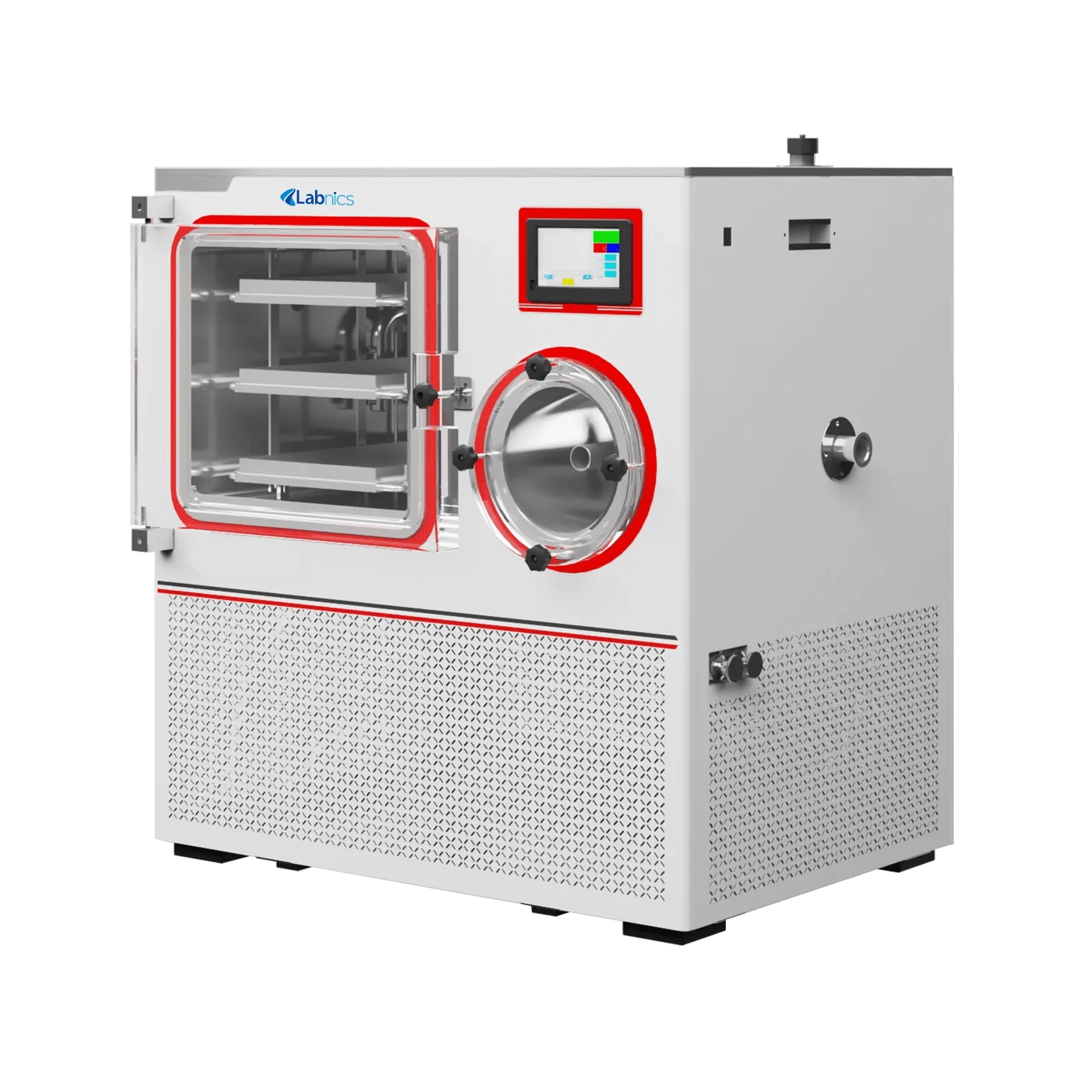

Pilot Freeze Dryer NPFD-100

Pilot Freeze Dryer NPFD-100 provides a 0.24 m² freeze-drying area with a 6.5 kg water capture capacity for an effective dehydration process. It features a high-definition touchscreen for real-time monitoring. This unit operates with a low-noise compressor for stability. It offers multiple program segments for precise parameter settings. Our Pilot Freeze Dryer includes long-term data storage with USB backup support.

---

$19,888.00

Buy Now Catalog

Specifications

Type	Standard chamber
Freeze Area	0.24 m²
Water Capture Capacity	6.5 kg
Cold Trap Volume	13.5L
Tray Size	300 × 400 mm
Tray Quantity	2+1
Loading Capacity	3.6 L
Height Between Trays	145mm
Limit Vacuum	<1Pa
Pressure Display Range	ambient pressure -0.1Pa
Cold Trap Temperature	-80°C
Shelf Temperature	-55 to 70°C
Environmental Temperature	10°C to 24°C
Penicillin Bottle	Φ12mm: 1584 Φ16mm: 864 Φ22mm: 468
Power Supply	380V 50Hz
Power Consumption	4 kW
External Dimension	1100 × 750 × 1230 mm
Package Dimension	1250 × 960 × 1320 mm
Net Weight	450 kg
Gross Weight	500 kg

Features

• Electric defrosting
• Frequency conversion refrigeration
• Easy maintenance
• Real-time data curve display
• Durable construction
• Advanced vacuum control

Applications

• Pilot Freeze Dryer NPFD-100 preserves perishable materials by eliminating moisture through sublimation, making it useful in pharmaceuticals, food processing, and research.
