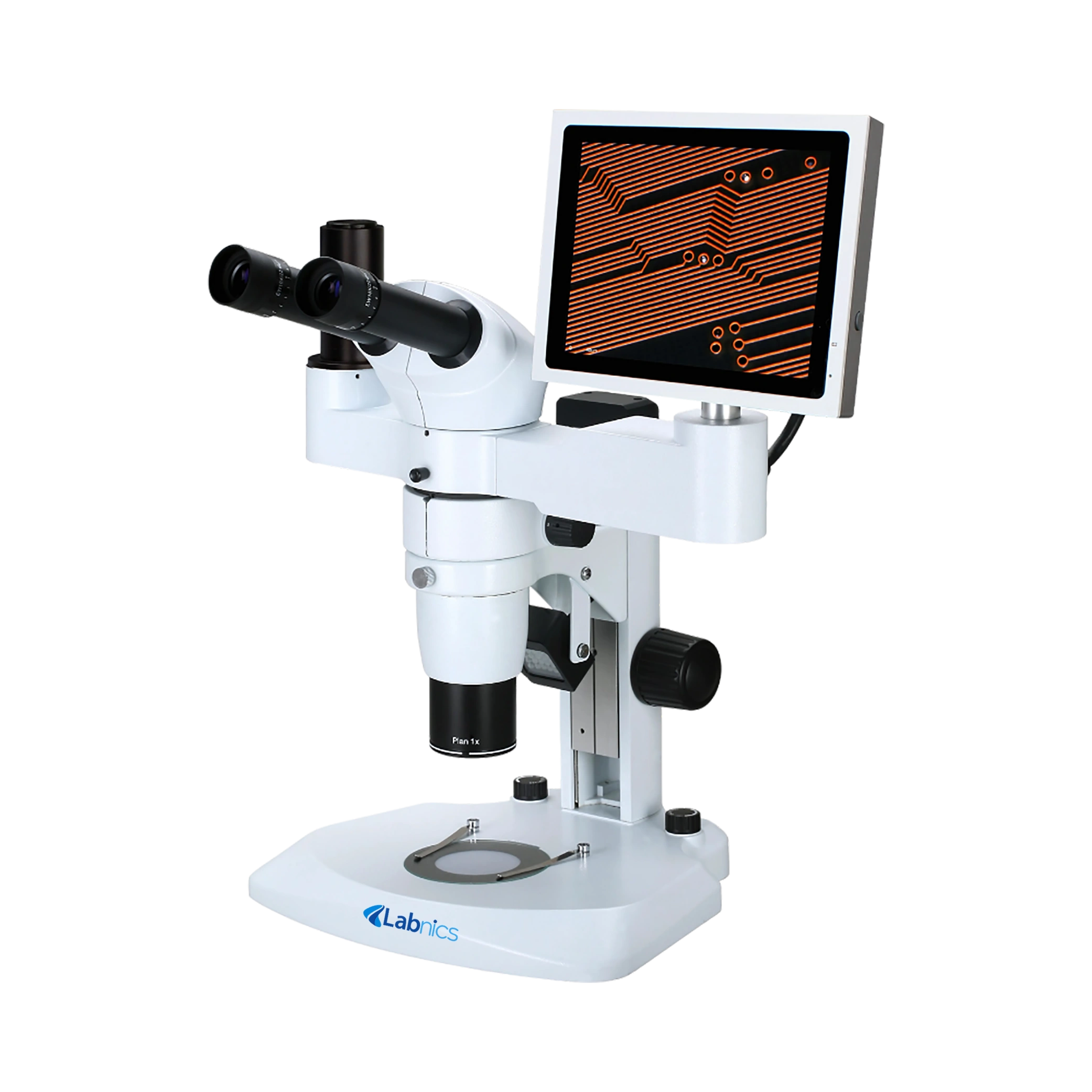

Digital Microscope NDM-101 provides an EW10X /Φ 22 mm eyepiece and supports a focusing distance of 105 mm. It is equipped with a high-resolution LCD display for sharp and detailed viewing. This unit offers a wide zoom range for enhanced observation flexibility. It comes with a compact design for easy handling and space-saving setup. Our digital microscope runs on an Android operating system for advanced functionality.
$3,950.00
Specifications
| Viewing Head | Binocular head, 20° inclined, interpupillary 55 to 75mm |
| Eyepiece | EW10X /Φ 22 mm |
| Objectives | Plan Apochromatic objective 1X Zoom objectives: 0.8X to 5X with 1: 6 zoom ration |
| Stage | working distance: 78 mm |
| Focusing | Focusing distance: 105 mm |
| Illumination | Transmission & reflection LED illumination, brightness adjustable |
| LCD Screen | 9.7-inch TFT touch screen |
| Output | USB 2.0, Mini USB, HDMI |
| Operating System | Android 5.1 |
| Software | Touch scope (For Microscope), NMS client (For PC) |
| Digital Part | 5.0 mega pixels CMOS chip and support Wi-Fi and Bluetooth |
| Dimension | 44 × 53 × 75 cm |
| Net Weight | 13 kg |
| Gross Weight | 15 kg |
Features
Applications
Optional Accessories
Tilting binocular eyepiece tube 5 to 45°inclined
2X plan achromatic objective
0.5X plan apochromatic objective
0.5X achromatic objective
WF15X/16mm
Coaxial coarse & fine focusing unit
Ask Expert
FAQ for Digital Microscope NDM-101
1: What makes the Digital Microscope NDM-101 suitable for high-precision inspection work?
Our Digital Microscope NDM-101 is equipped with high-resolution optics, a 9.7-inch LCD touchscreen, and a long focusing distance, making it ideal for precise inspection, especially in electronics and precision engineering tasks.
2: Does the Digital Microscope NDM-101 support external connectivity?
Yes, the Digital Microscope NDM-101 supports USB, Mini USB, and HDMI output, allowing users to connect to external monitors or computers for enhanced display and data sharing.
3: What should I do if the Digital Microscope NDM-101 displays unclear images?
If the image appears unclear, check the lens of the Digital Microscope NDM-101 for dust or smudges, adjust the illumination and zoom settings, and ensure the screen resolution is set correctly. Regular cleaning helps maintain optimal image quality.
4: Is the Digital Microscope NDM-101 comfortable for extended use?
Yes, the Digital Microscope NDM-101 is designed with a 20° inclined binocular viewing head and an adjustable interpupillary distance, providing ergonomic comfort and reducing strain during extended periods of observation.
5: What maintenance is required for the Digital Microscope NDM-101?
The Digital Microscope NDM-101 requires minimal maintenance. Clean the optical components regularly, protect it from dust and moisture, and keep the software updated to ensure long-term performance and reliability.
