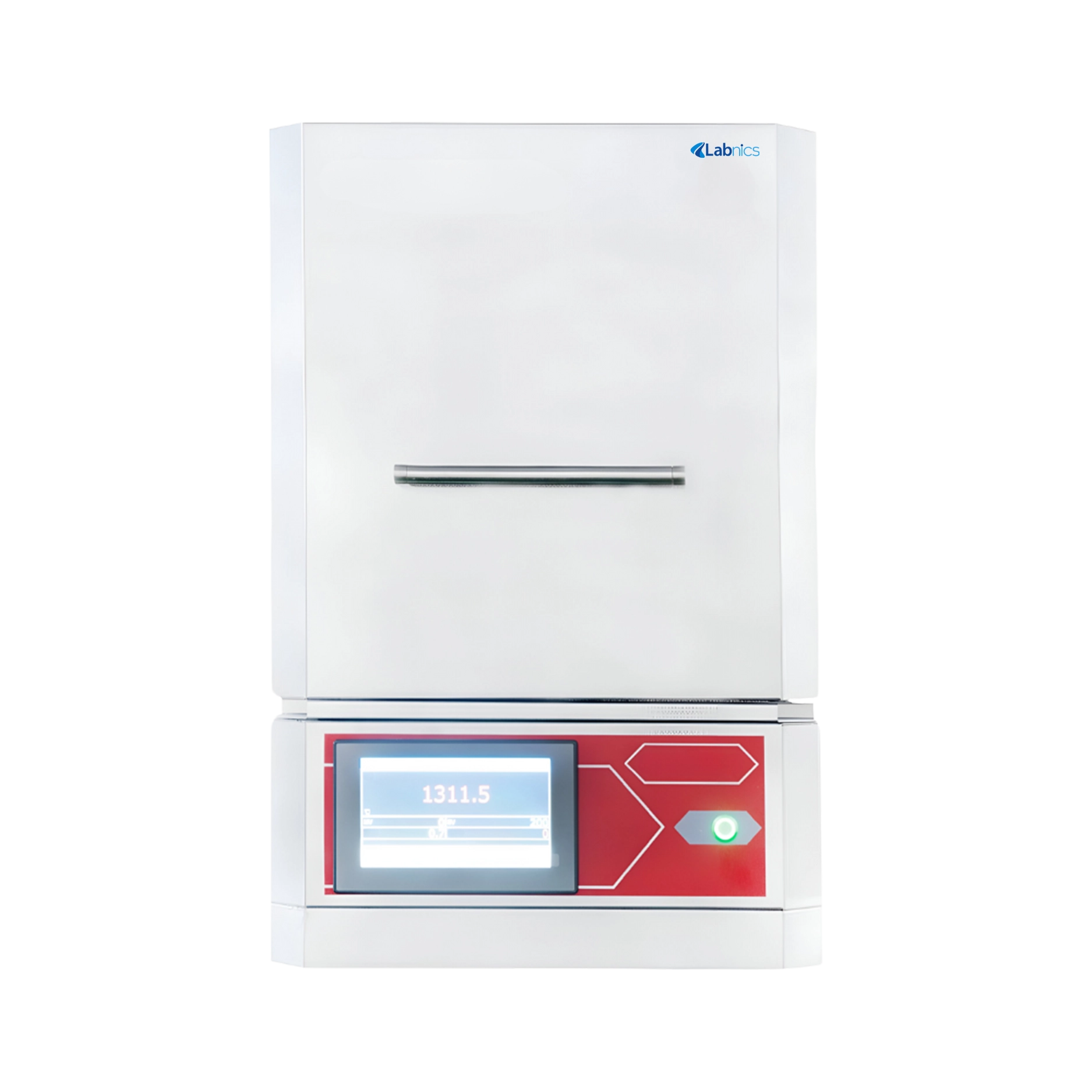

Muffle Furnace NMF-303

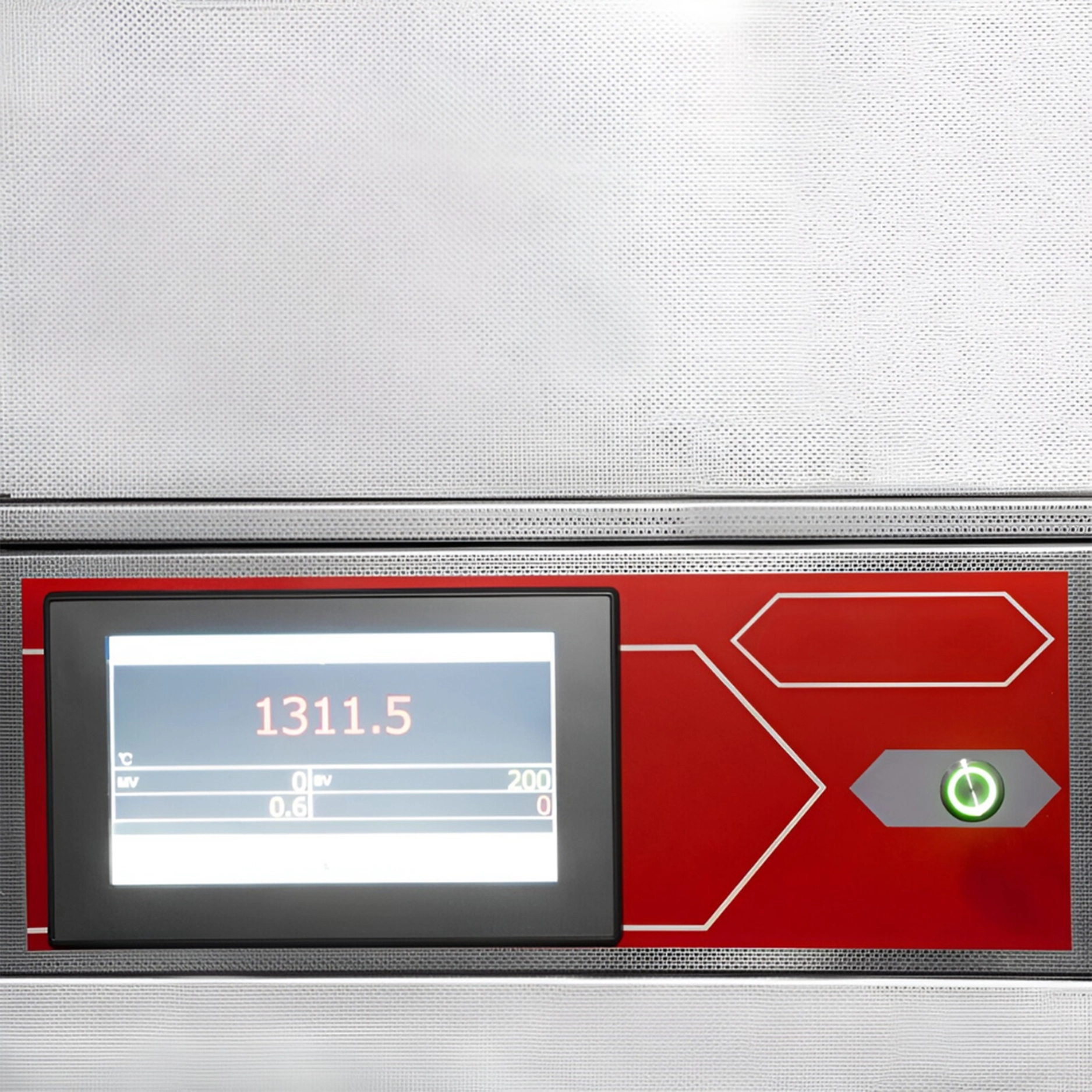

Muffle Furnace NMF-303 is designed with a 12 L capacity and operates at a maximum temperature of 1200°C. It is equipped with an LCD touchscreen program controller for precise temperature control. Our furnace has a high-temperature-resistant alloy heating element. It includes a cooling fan to prevent circuit overheating. This unit features a polycrystalline mullite fibre chamber for efficient insulation.

---

$5,338.00

Buy Now Catalog

Specifications

Capacity	12 L
Maximum Temperature	1200°C
Operating Temperature	1100°C
Temperature Fluctuation	±1°C
Heating Up Time	60 minutes
Temperature Uniformity	±10°C
Power Consumption	4 kW
Power Supply	220 V
Internal Dimensions	300 × 200 × 200 mm
External Dimensions	570 × 480 × 775 mm
Net Weight	90 kg
Gross Weight	106 kg

Features

• Multiple safety protections
• Outer wall ventilation design
• Durable construction
• Energy-efficient insulation
• User-friendly interface

Applications

• Our Muffle Furnace is suitable for high-temperature processes like material testing, annealing, sintering, calcination, and ceramic firing, providing controlled, contamination-free heating.

Optional Accessories

Printer

Chimney
