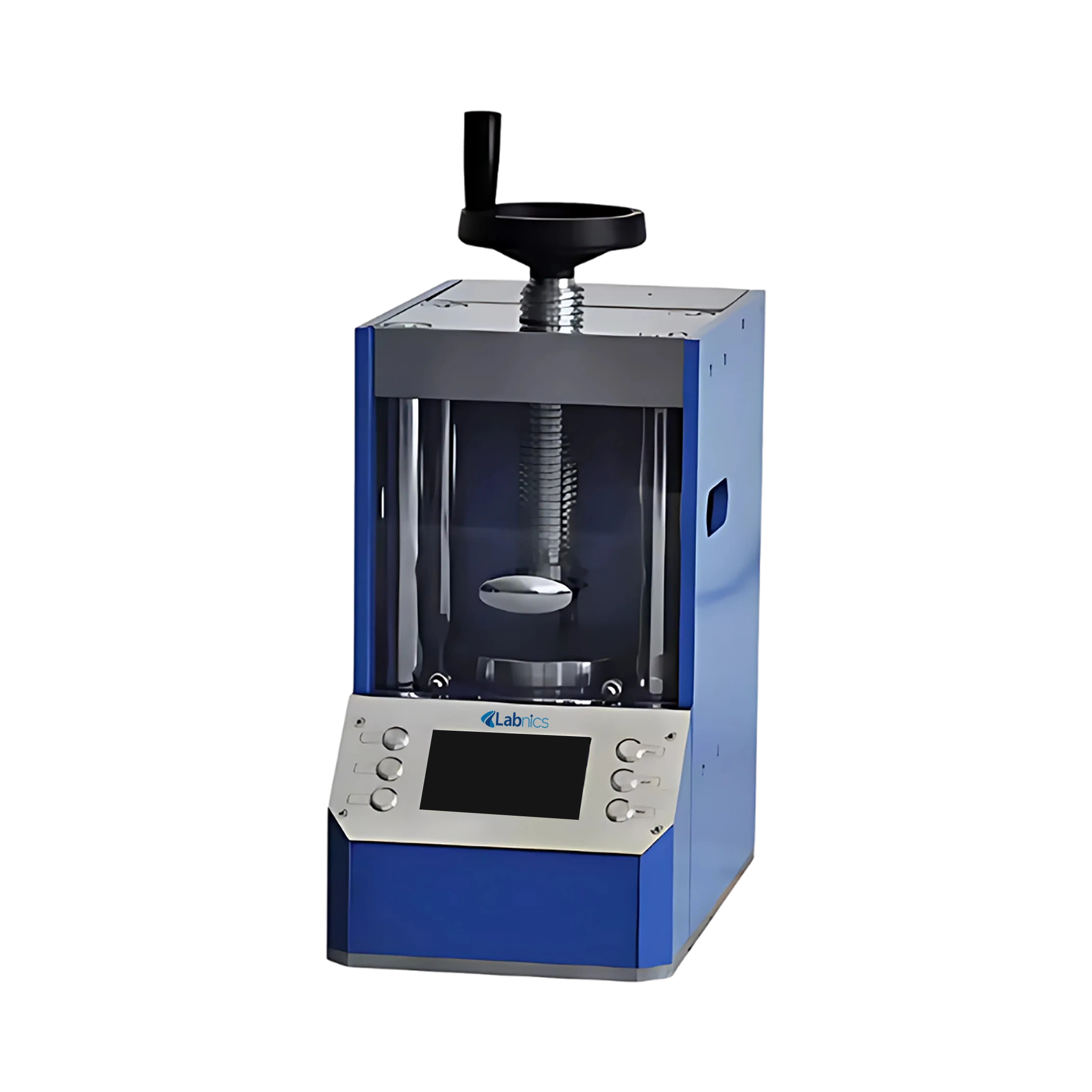

Automatic Hydraulic Pellet Press NAHPP-102

Automatic Hydraulic Pellet Press NAHPP-102 is a lab instrument designed for compressing powder samples into pellets. It offers a pressure range of 1 to 60.0 Ton with precise digital control. This press features automatic operation for consistent and repeatable results. Its compact design ensures space-saving and easy integration in lab setups. Our model is built-in with safety features that enhance user protection during operation.

---

$70,000.00

Buy Now Catalog

Specifications

Pressure Range	1 to 60.0 T
Pressure holding time	≥1S (has no limit)
Pressurization process	Program pressurization-Program holding -Timed pressure release
Intensity conversion	Automatic conversion of die pressure
LCD	7” LCD Screen
Limit switch	Automatic pressure release when the oil cylinder reaches the limited height
Equipment protection	Steel plate equipped with plexiglass door
Oil cylinder travel	50mm (T)
Power Consumption	550W
Power Supply	110V, 60 Hz
Spatial Space (M×N)	185 × 220 mm
Dimensions (L×W×H)	300 × 520 × 580 mm
Weight	180 kg

Features

• Real-Time Display
• Overload Protection
• Noise-Free Operation
• Touchscreen Interface
• Emergency Stop Button

Applications

• Automatic Hydraulic Pellet Press NAHPP-102 is designed to form uniform solid pellets from powder samples for analytical testing. It is commonly used in laboratories for materials research, pharmaceuticals, and spectroscopy analysis.
