Muffle Furnace NMF-300

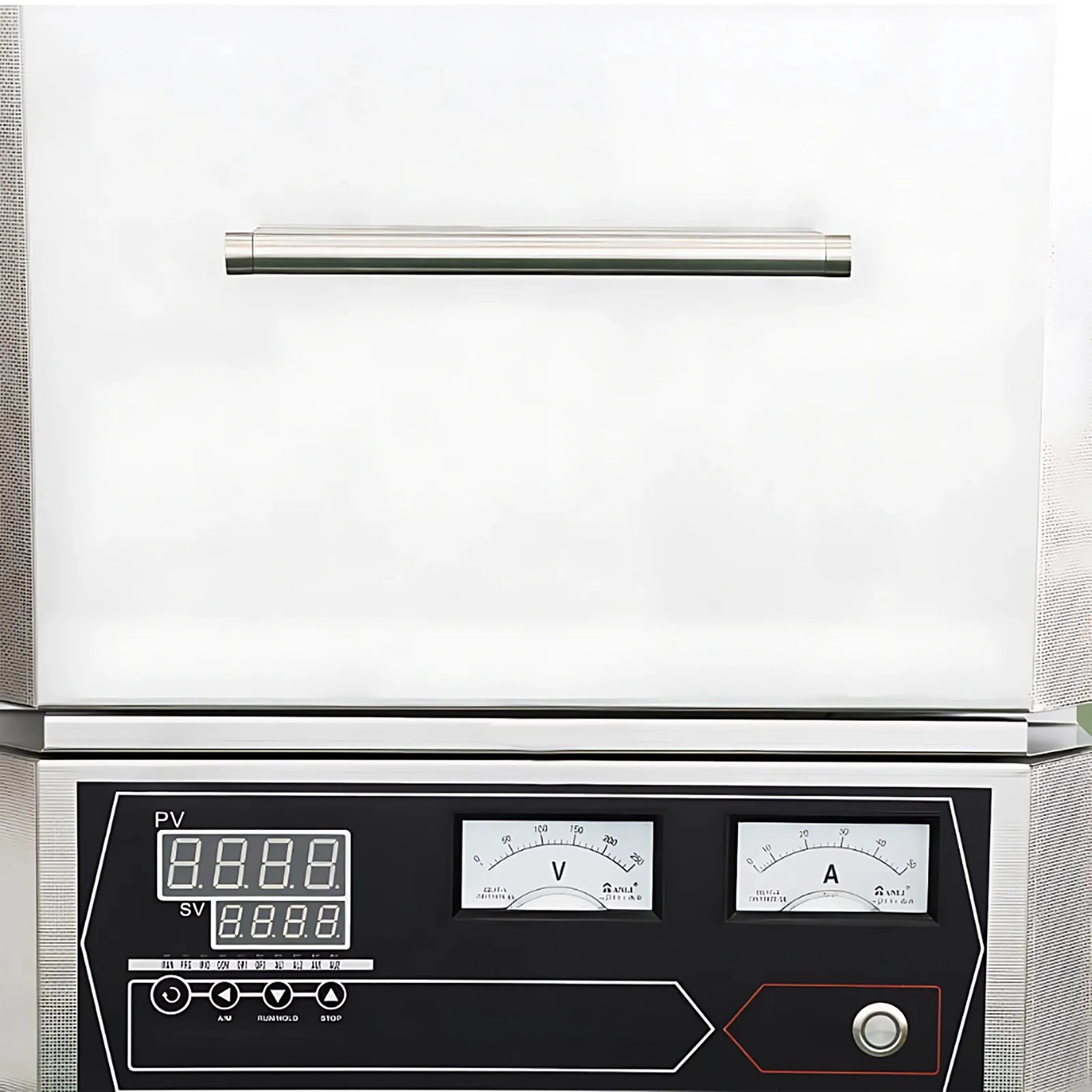

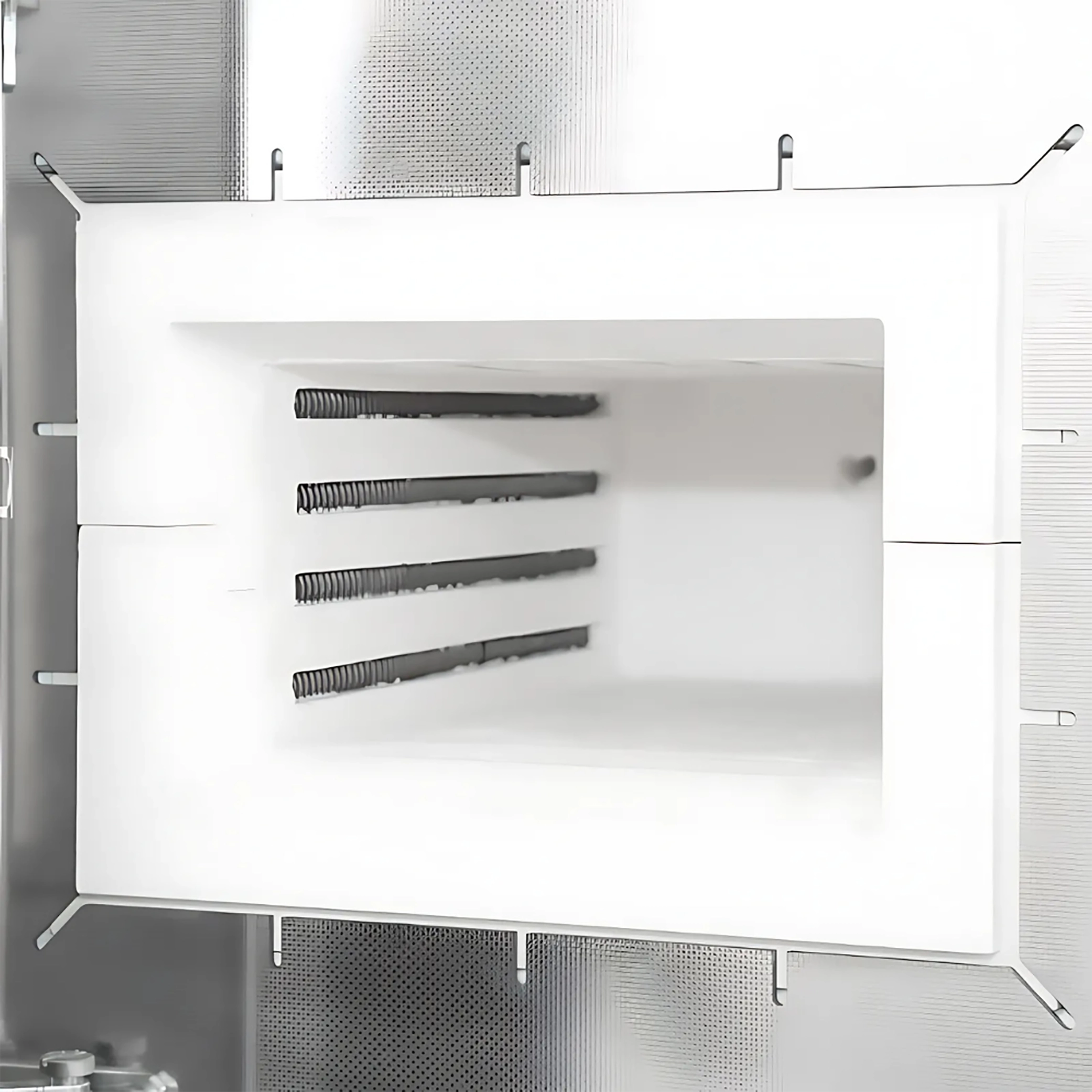

Muffle Furnace NMF-300 provides a 7 L capacity and operates at a temperature of 1100°C. It features a digital display program controller for accurate temperature management. This unit includes an alumina anvil insulation layer for enhanced efficiency. It comes with a cooling fan to protect the circuit from overheating. Our muffle furnace ensures reliable operation with multiple safety protections.

---

$4,150.00

Buy Now Catalog

Specifications

Capacity	7 L
Maximum Temperature	1200°C
Operating Temperature	1100°C
Temperature Fluctuation	±1°C
Heating Up Time	60 minutes
Temperature Uniformity	±10°C
Power Consumption	3 kW
Power Supply	220 V
Internal Dimensions	300 × 200 × 120 mm
External Dimensions	560 × 460 × 675 mm
Net Weight	85 kg
Gross Weight	101 kg

Features

• Strong oxidation resistance
• Ventilation system
• Durable construction
• User-friendly monitoring
• Energy-efficient operation

Applications

• Muffle Furnace NMF-300 is<strong> </strong>used for heat treatment, material testing, and ash analysis in labs and industries. It also supports ceramic processing, gravimetric analysis, and carbon-sulphur testing.

Optional Accessories

Printer

Chimney
