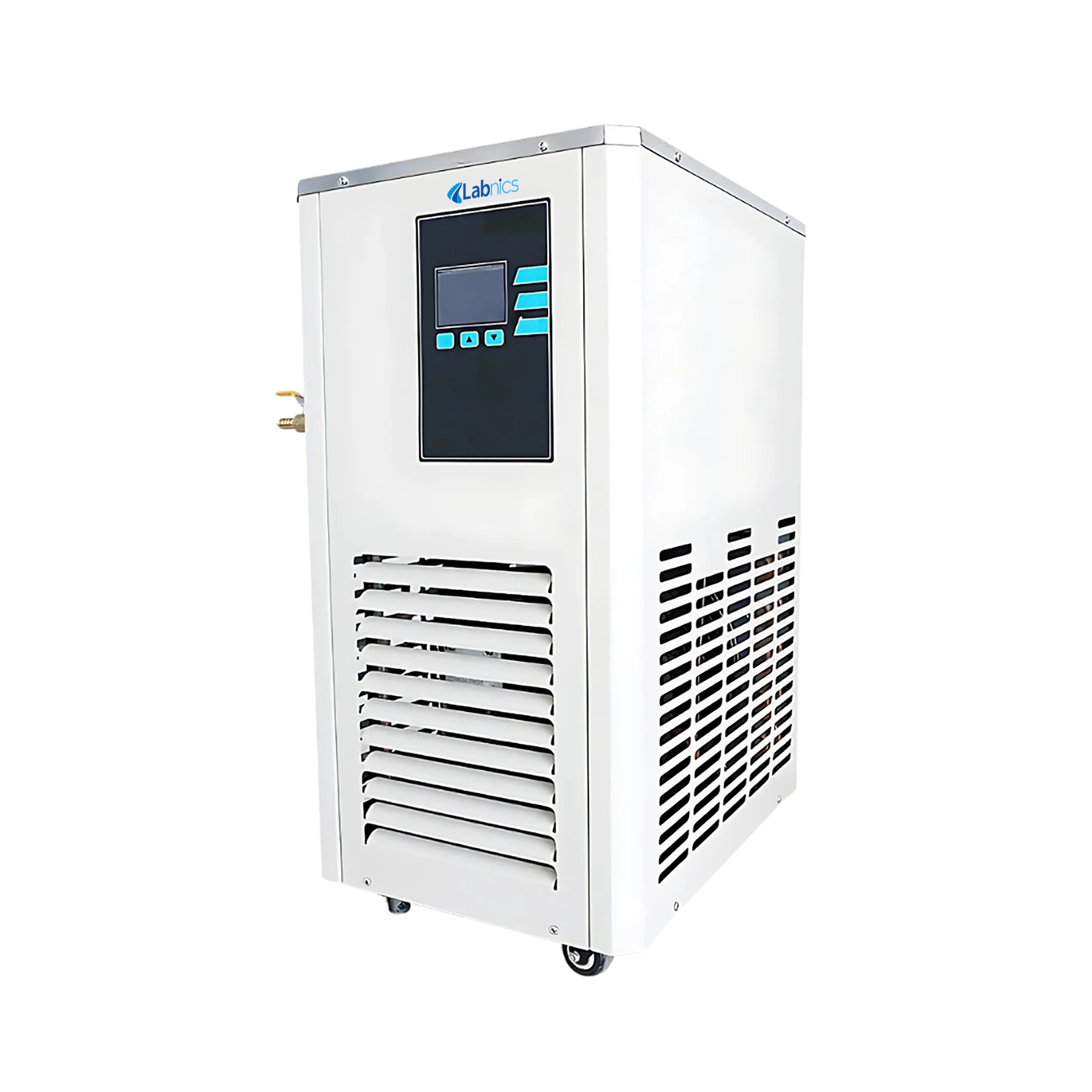

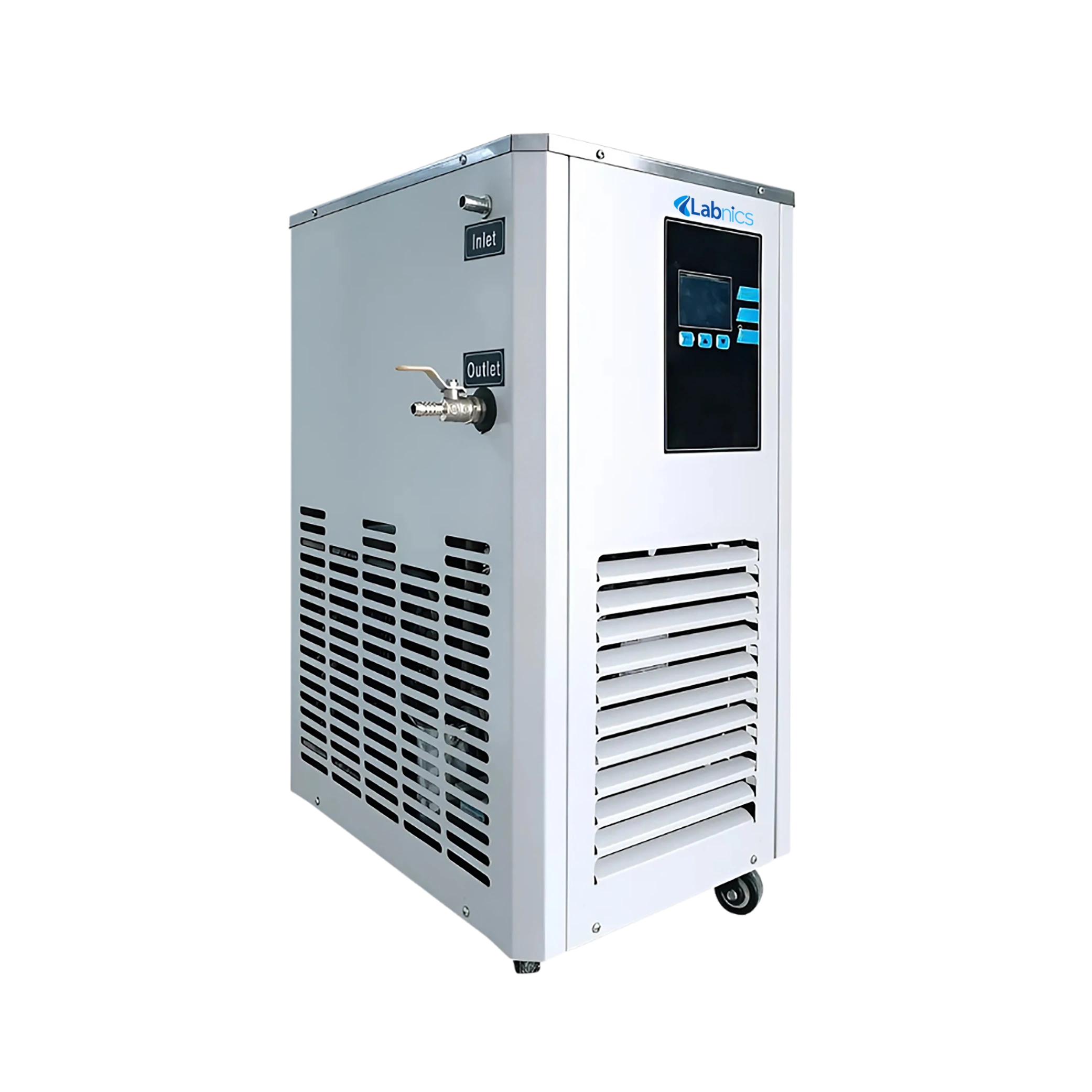

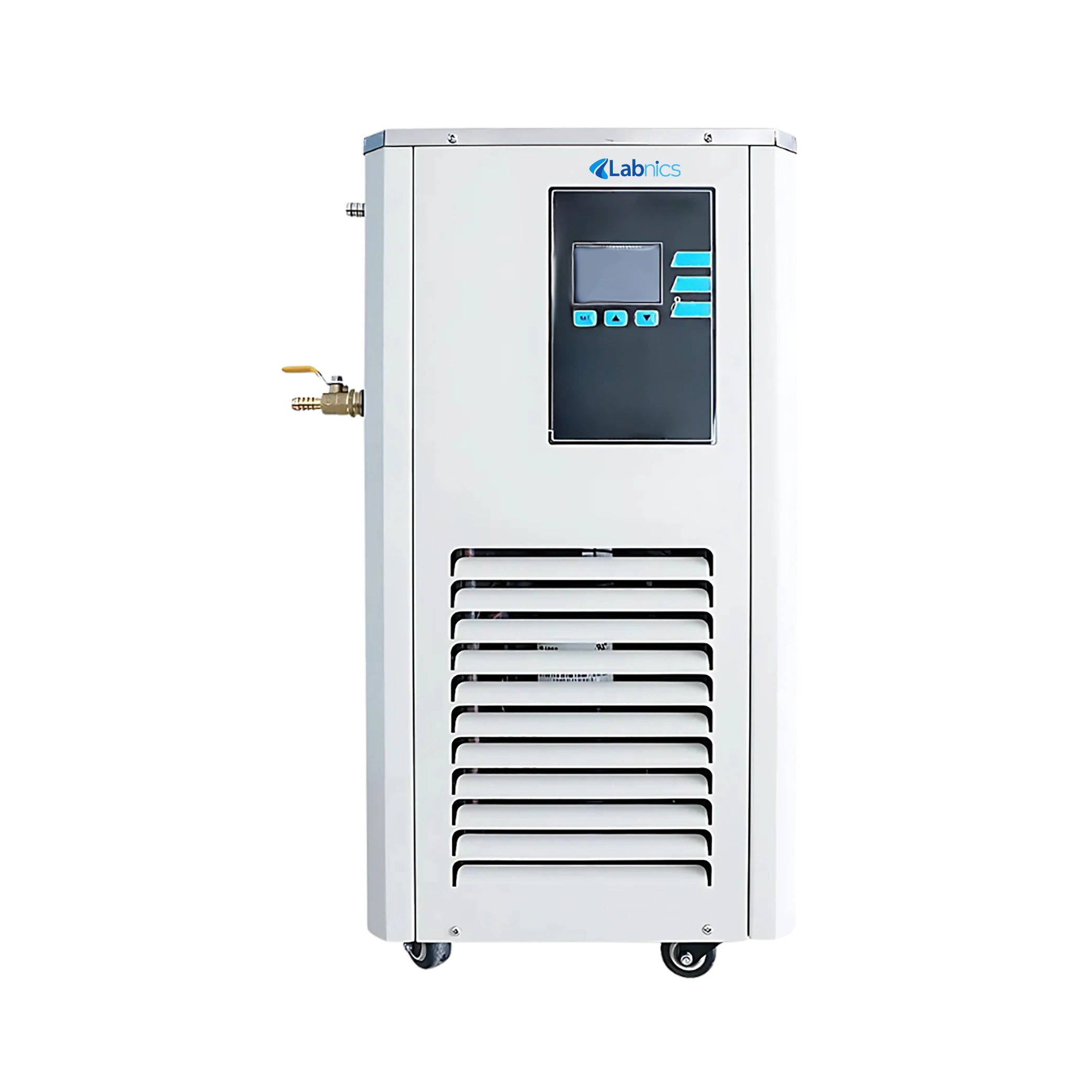

Recirculating Chiller NRC-101 features a tank capacity of 6.8 liters for efficient fluid circulation. It operates across a temperature range of -20°C to RT for versatile cooling applications. This unit maintains precise temperature control with an accuracy of ±0.1°C. It handles an air volume of 760 m³/h to ensure effective heat dissipation. Our chiller is built using cold-rolled steel plates coated with anti-corrosion spray for enhanced durability.
$2,238.00
Specifications
| Tank capacity | About 6.8L |
| Temperature range | -20°C to RT |
| Room Temperature | 5 to 35°C |
| Temperature accuracy | ±0.1°C |
| Temperature sensor | PT100 |
| Room humidity | ≤70% ventilation |
| Flow | 20 to 40L/min |
| Lifting head | 4 to 6M |
| Pressure | ≤0.4MPa |
| Heat exchange area | 4.2㎡ |
| Air volume | 760m³/h |
| Refrigerant | R22 |

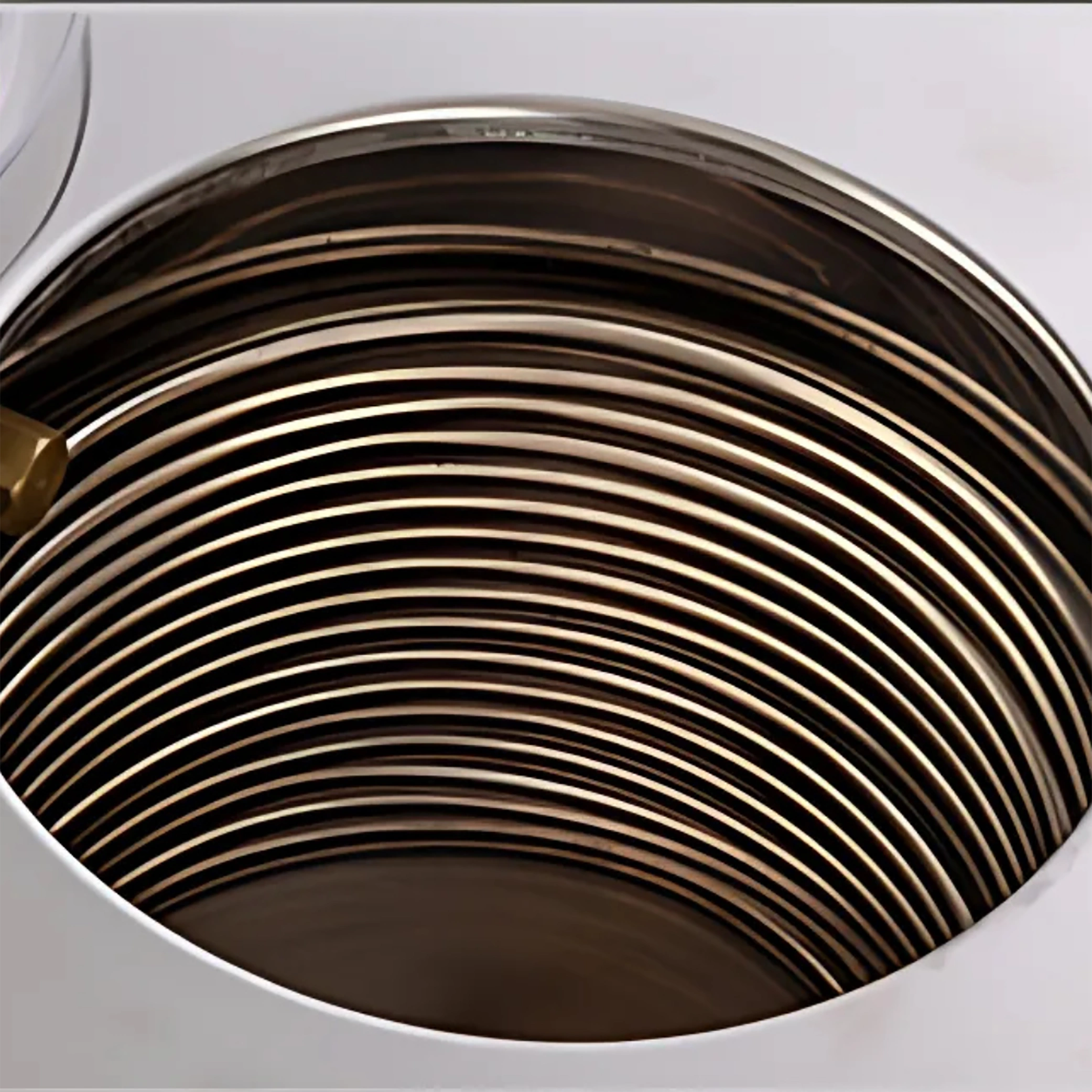

| Condensing coil | Φ8Copper tube nickel plated |
| Material | Cold plate spray anticorrosion |
| Compressor type | 1P |
| Compressor quantity | 1 |
| Screen display | LCD screen, key operation |
| Safety protection | Delay, overcurrent, overheating |
| Compressor power | 735W |
| Cooling capacity | 2324W |
| Total power consumption | 887W |
| Power supply | 220V 50Hz 1phase |
| Outer loop interface | Φ12mm |
| Tank dimension | Φ200×185 mm |
| Product dimension | 423×485×(760+400) mm |
| Packaging dimension | 570×460×790 mm |
| Weight | 46 kg |
| Packaging weight | 50 kg |
Features
Applications
Ask Expert
FAQ for Recirculating Chiller NRC-101
1: What type of compressor does the Recirculating Chiller NRC-101 use?
The Recirculating Chiller uses an imported, air-cooled closed compressor known for quality and reliability. The system also includes dedicated components like relays, protectors, and capacitors for efficient refrigeration performance.
2: Is the Recirculating Chiller NRC-101 easy to operate?
Yes, the microcomputer control system and digital LCD screen make it easy to set and monitor operating conditions. Keypad controls offer user-friendly access to all functions.
3: How does the Recirculating Chiller NRC-101 perform in poor water conditions?
Our Recirculating Chiller is designed to operate effectively in environments with water scarcity, low pressure, or high temperatures. This ensures reliable cooling and protection of precision instruments.
4: How often should the Recirculating Chiller be cleaned?
It is recommended to clean the tank and outer surfaces regularly to prevent contamination and ensure efficient cooling. Depending on usage, internal cleaning can be done monthly or after every major operation.
5: What safety checks should be performed regularly?
It’s important to test the overcurrent, overheat, and delay protection functions periodically. Ensuring these systems work prevents potential equipment damage.
Labnics Recirculating Chiller features automated water level detection, to maintain optimal water levels. They feature a compact design with a user-friendly touchscreen for easy monitoring. These units are equipped with a microprocessor PID controller for precise temperature control. Our recirculating chillers are built with durable steel construction for long-lasting performance. They come with high-efficiency pumps that ensure steady flow rates.
