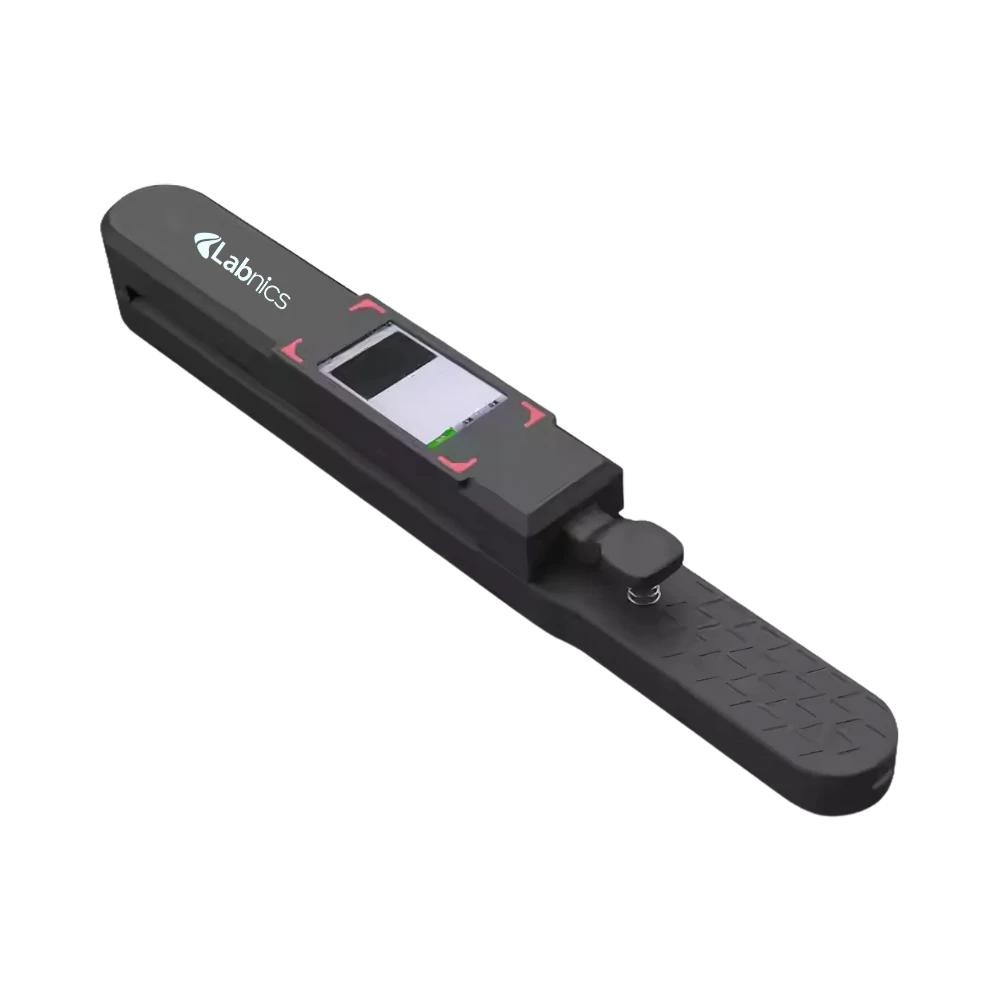

Leaf Area Meter NLAM-200 offers a large measuring area of 210×3000 mm², ensuring accurate leaf measurements. It uses blade scan technology to capture the full dimensions of the leaf. This meter features a bright color display, providing a touch-screen interface for smooth operation. It operates in ambient temperatures from 0 to 50°C, ensuring reliable performance. Our unit ensures precise detection of leaf shape and size variations with a resolution of 0.1 mm.
$2,675.00
Specifications
| Blade scan length | ≥3000 mm |
| Blade scan width | ≤210 mm |
| Measuring area | ≤210×3000 mm2 |
| Resolution | 0.1mm |
| Ambient temperature | 0 to 50°C |
| Display screen | 480×854 RGB display |
| Battery capacity | 5000mAh |
| Dimension (L×W×H) | 50×420×54 mm |
| Weight | 0.5kg |
Features
Applications
Ask Expert
FAQ for Leaf Area Meter NLAM-200
1: How does the Leaf Area Meter NLAM-200 handle large leaves specimens?
The Leaf Area Meter NLAM-200 is designed to scan leaves up to 3000 mm in length and 210 mm in width, making it suitable for analyzing large leaf types.
2: What is the significance of the 0.1 mm resolution in this leaf area meter?
A 0.1 mm resolution enables the device to detect even subtle variations in leaf shape and size, making it ideal for precise morphological analysis in scientific and agricultural studies.
3: Can this device be used outdoors in varying environmental conditions?
Yes, the Leaf Area Meter NLAM-200 operates reliably in ambient temperatures ranging from 0 to 50°C, making it well-suited for both indoor and outdoor field applications in diverse climates.
4: Is the Leaf Area Meter NLAM-200 user-friendly for beginners or field researchers?
Absolutely. It features a bright RGB touchscreen display, allowing intuitive navigation and easy operation even under daylight conditions.
5: What does dual display mean in the Leaf Area Meter NLAM-200?
The dual display feature allows users to simultaneously view leaf scan data and measurement results, enhancing workflow efficiency during data collection and analysis.
6: What fields or industries benefit most from the NLAM-200?
The Leaf Area Meter is ideal for professionals in agriculture, botany, forestry, and environmental science.
