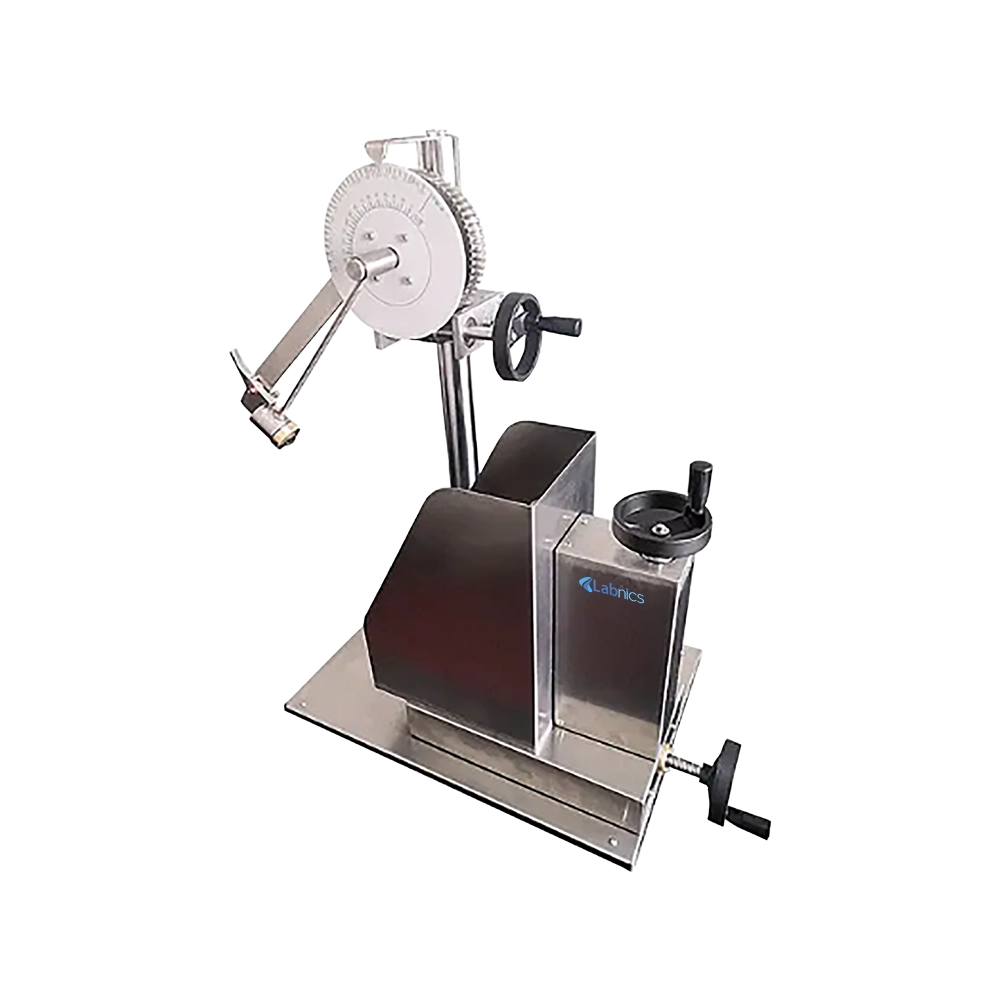

Glass Bottle Impact Tester NGIT-100 offers a sample diameter range of 20 to 165 Φ mm and facilitates bottle position height adjustments from 10 to 350 mm.It features a movable sample loading fixture for easy bottle positioning. Equipped with a stainless steel safety shield that improves user safety by preventing fragments. It includes a precise and stable pendulum suspension that allows for free rotation and release.
$4,000.00
Specifications
| Sample Diameter Range | 20 to 165 Φ mm |
| Bottle Position Height | 10 to 350mm |
| Impact Energy | 2.5J |
| Resolution | 0.1J |
| Power Supply | 220V, 50hz |
| Dimension (L×W×H) | 530 × 350 × 710 mm |
| Weight | 40 kg |
Features
Applications
Ask Expert
Labnics Glass Bottle Impact Tester measures impact stability of glass bottles under regulated conditions to ensure product quality. They are suitable for different bottle shapes and sizes and easy to calibrate for precise measurements. Our tester features a user-friendly interface for simplified operation. Includes programmable impact heights for various testing requirements. They provide durability and simplicity through robust construction.
