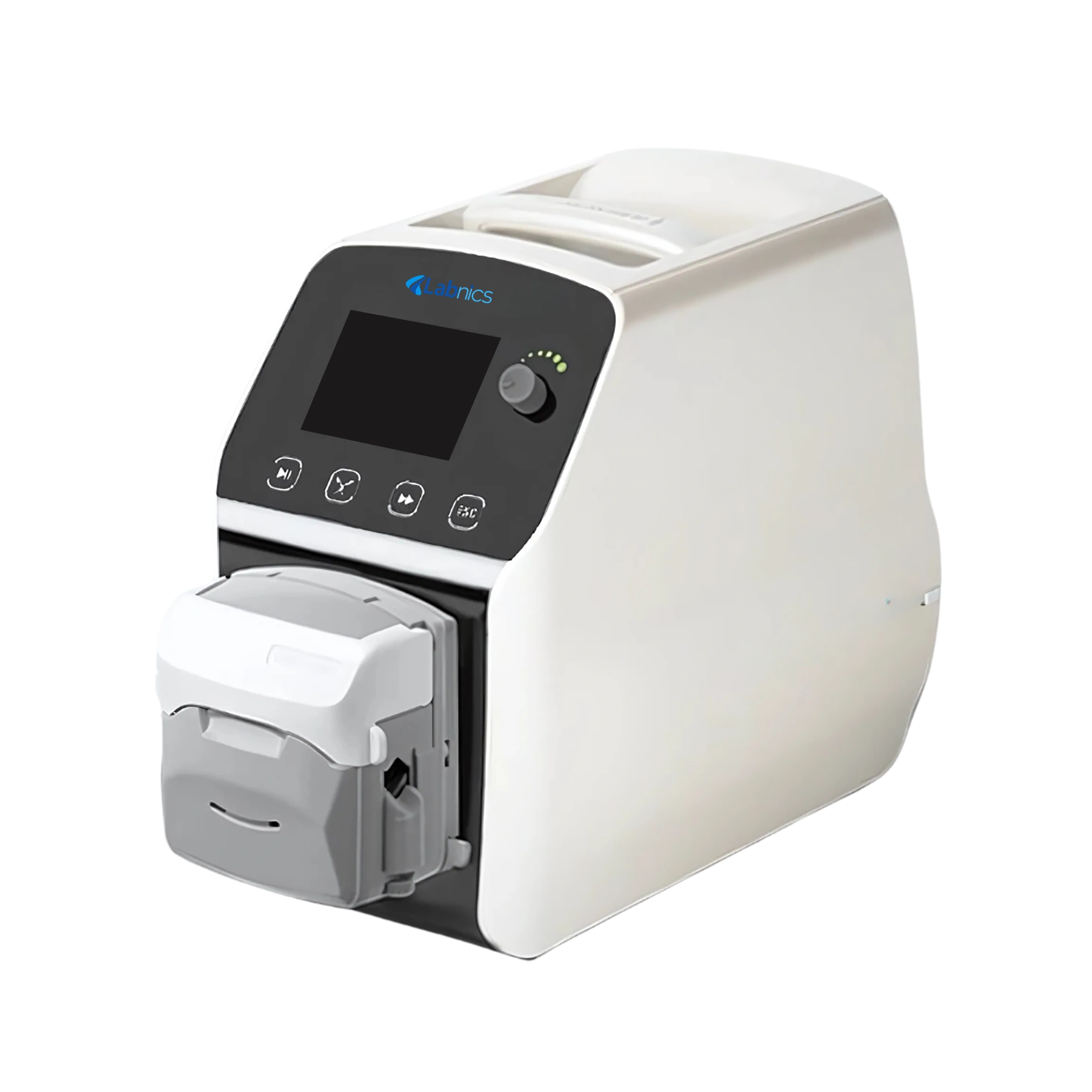

Intelligent Flow Peristaltic Pump NIFPP-400 is designed to function at temperatures from 0 to 40°C and relative humidity below 80%. It features a robust anti-jamming design for stable and reliable operation. The unit has a compact structure that saves space and enhances portability. It offers wide voltage compatibility to support various power supply conditions. This peristaltic pump includes a built-in timing function for precise dispensing control.
| Flow Range |
0.0079 to 3027.97 mL/min |
| Flow Resolution |
0.01 mL |
| Speed Range |
0.1 to 600 RPM |
| Testing Time Range |
0.1s to 9999h |
| Motor type |
Closed-loop stepper motor |
| Display |
3.2 inch |
| Temperature Range |
0 to 40°C |
| Relative Humidity |
<80% |
| Control Method |
Mechanical keypad + Rotary encoded switch |
| Keypad Lifespan |
300,000 times |
| Back Suction Angle |
0 to 360° |
| External Control |
0 to 5 V, 0 to 10 V, 4 to 20 mA (option) |
| Output Interface |
Output motor working status (open-collector output) |
| Communication Interface |
RS232/RS485 support MODBUS protocol (RTU mode) |
| Start/Stop, Direction Signal |
Passive switch input (e.g., foot pedal) |
| Active Switch Signal |
Default 5V to 24V active input |
| Power Consumption |
<80 W |
| Power Supply |
AC 220V±10%, 50Hz/60Hz |
| Dimension |
259 × 157 × 237 mm |
| Weight |
4.40 kg |
FAQ for Intelligent Flow Peristaltic Pump NIFPP-400
1: What makes the Intelligent Flow Peristaltic Pump NIFPP-400 suitable for precise liquid handling?
Our Intelligent Flow Peristaltic Pump NIFPP-400 features a closed-loop stepper motor and intelligent calibration system that ensure highly accurate and stable flow control, making it ideal for precision-demanding applications in industrial and laboratory settings.
2: Can I operate the Intelligent Flow Peristaltic Pump NIFPP-400 without using the touch screen?
Yes, the Intelligent Flow Peristaltic Pump NIFPP-400 is equipped with both a 4.3-inch touch screen and a mechanical keypad, allowing users to conveniently operate the pump even if the touchscreen is not preferred.
3: Is the Intelligent Flow Peristaltic Pump NIFPP-400 capable of timed liquid distribution?
Yes, the Intelligent Flow Peristaltic Pump NIFPP-400 includes a built-in timing distribution function, allowing users to set delivery intervals from 0.1 seconds to 9999 hours with up to 9999 repetitions, or continuous operation when set to zero.
4: What certifications does the Intelligent Flow Peristaltic Pump NIFPP-400 comply with?
The Intelligent Flow Peristaltic Pump NIFPP-400 is CE and SGS certified, ensuring it meets international safety, performance, and quality standards for reliable industrial use.
5: What happens to the Intelligent Flow Peristaltic Pump NIFPP-400 settings after a power outage?
The Intelligent Flow Peristaltic Pump NIFPP-400 features a power-down memory function that automatically stores all operating parameters, allowing the pump to resume from the same settings once power is restored.
