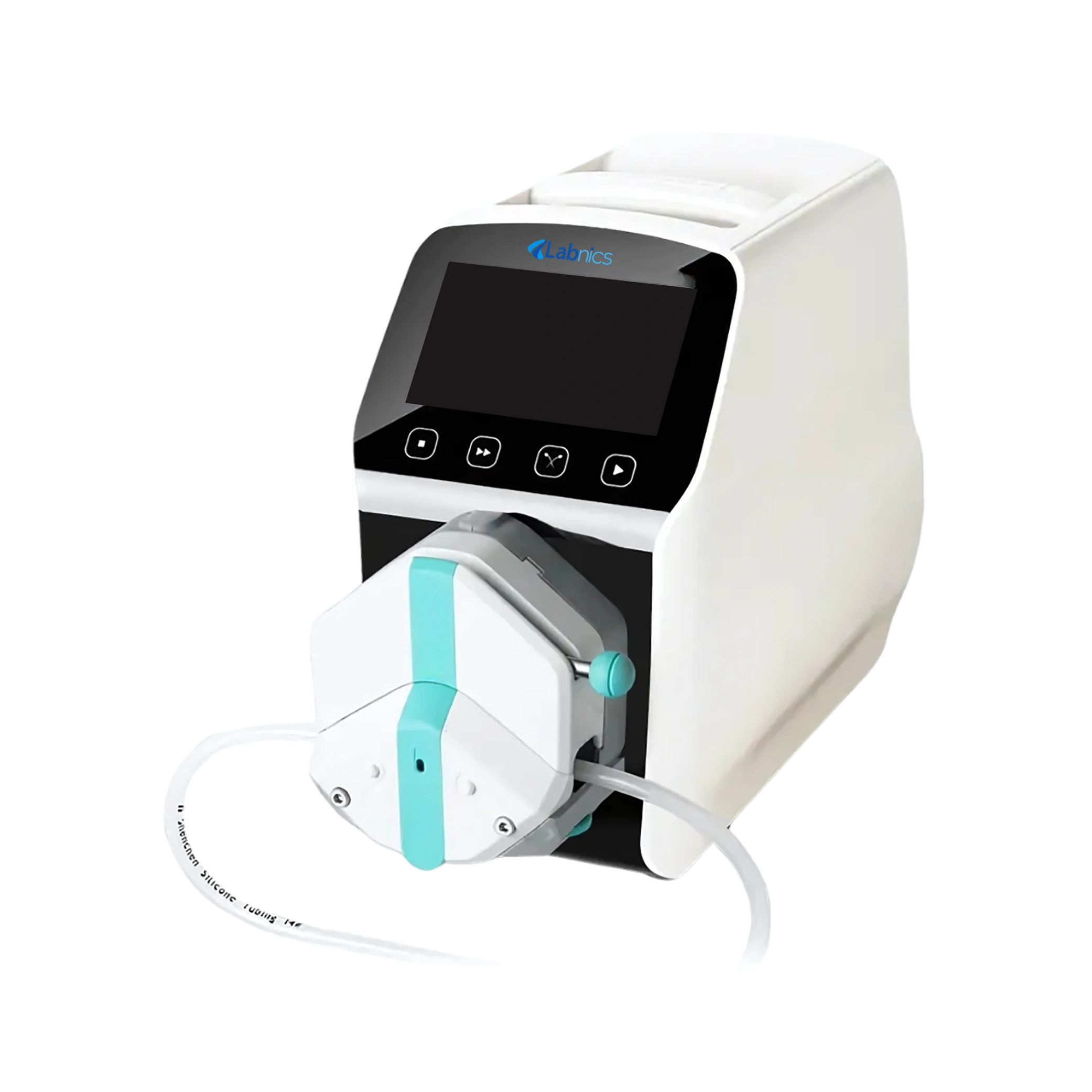

Intelligent Flow Peristaltic Pump NIFPP-304

Intelligent Flow Peristaltic Pump NIFPP-304 offers controlled flow with a speed range of 0.1 to 350 RPM and a resolution as fine as 0.01 RPM. It has a coated circuit board for protection against dust, moisture, static, and corrosion. Our unit features an advanced calibration function for improved accuracy. It provides continuous micro-adjustments for precise flow control. This flow peristaltic pump has a compact structure for easy handling and installation.

---

$3,650.00

Buy Now Catalog

Specifications

Flow Range	0.0053 to 1808 mL/min
Flow Resolution	0.01 mL/min
Speed Range	0.1 to 350 RPM
Speed Resolution	0.01 RPM
Dispensing Volume	0.1 to 9999 mL
Volume Resolution	0.01 mL
Dispensing Time	0.1 to 9999s
Pause Time	0.1 to 9999s
Time Resolution	0.01s
Repeat Number	1 to 9999 times
Motor type	stepper motor
Display	4.3-inch industrial grade
Temperature Range	0 to 40°C
Relative Humidity	<80%
Working Mode	Flow rate and dispensing mode
Control Method	Touch screen and Mechanical keypad
Keypad Lifespan	300,000 times
Flow Rate Accuracy	<±0.5%
Back Suction Angle	0 to 360°
External Control	0 to 5 V, 0 to 10 V, 4 to 20 mA (option)
Output Interface	Output motor working status (open-collector output)
Communication Interface	RS232/RS485 support MODBUS protocol (RTU mode)
Start/Stop, Direction Signal	Passive switch input (e.g., foot pedal)
Active Switch Signal	Default 5V to 24V active input
Power Consumption	<80 W
Power Supply	AC 220V±10%, 50Hz/60Hz
Dimension	259 × 157 × 237 mm
Weight	4.40 kg

Features

• UV spray coating
• Programmable external control
• Embedded handle
• Built-in touch pen
• ABS engineering plastic shell

Applications

• Our Intelligent Flow Peristaltic Pump is suitable for laboratory research, industrial production, and equipment integration requiring precise fluid transfer and reliable performance.

Standard Accessories

Silicone tubing (2 meters)

Operation manual × 1 pc

Power cable × 1 pc
