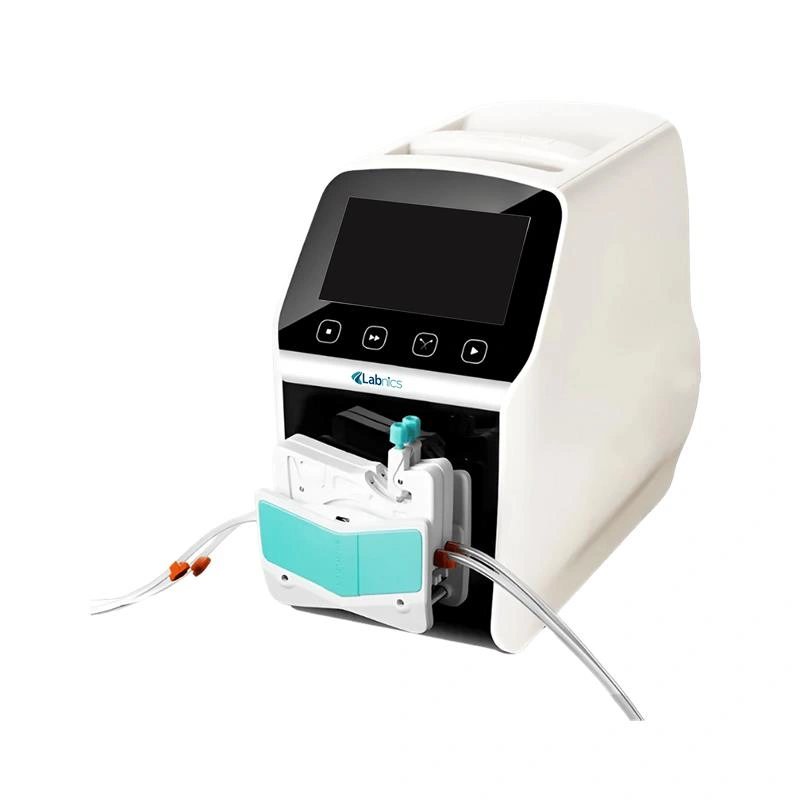

Intelligent Flow Peristaltic Pump NIFPP-306

Intelligent Flow Peristaltic Pump NIFPP-306 supports a flow range from 0.0002 to 645 mL/min, with a fine flow resolution of 0.01 mL/min. It offers programmable external control for flexible and automated operation. This unit includes an embedded handle for easy lifting and convenient portability. It features an ABS plastic shell for chemical resistance and added protection. Our peristaltic pump includes a built-in touch pen for convenient and precise screen navigation.

---

$2,913.00

Buy Now Catalog

Specifications

Flow Range	0.0002 to 645 mL/min
Flow Resolution	0.01 mL/min
Speed Range	0.1 to 150 RPM
Speed Resolution	0.01 RPM
Dispensing Volume	0.1 to 9999 mL
Volume Resolution	0.01 mL
Dispensing Time	0.1 to 9999s
Pause Time	0.1 to 9999s
Time Resolution	0.01s
Repeat Number	1 to 9999 times
Motor type	stepper motor
Display	4.3-inch industrial grade
Temperature Range	0 to 40°C
Relative Humidity	<80%
Working Mode	Flow rate and dispensing mode
Control Method	Touch screen and Mechanical keypad
Keypad Lifespan	300,000 times
Flow Rate Accuracy	<±0.5%
Back Suction Angle	0 to 360°
External Control	0 to 5 V, 0 to 10 V, 4 to 20 mA (option)
Output Interface	Output motor working status (open-collector output)
Communication Interface	RS232/RS485 support MODBUS protocol (RTU mode)
Start/Stop, Direction Signal	Passive switch input (e.g., foot pedal)
Active Switch Signal	Default 5V to 24V active input
Power Consumption	<80 W
Power Supply	AC 220V±10%, 50Hz/60Hz
Dimension	259 × 157 × 237 mm
Weight	4.40 kg

Features

• Protected circuit board
• UV spray coating
• Advanced calibration function
• Continuous micro-adjustments
• Compact structure

Applications

• Intelligent Flow Peristaltic Pump NIFPP-306 is widely used in laboratories, chemical processing, and industrial manufacturing for precise and reliable fluid transfer and dispensing.

Standard Accessories

Silicone tubing (2 meters)

Operation manual × 1 pc

Power cable × 1 pc
