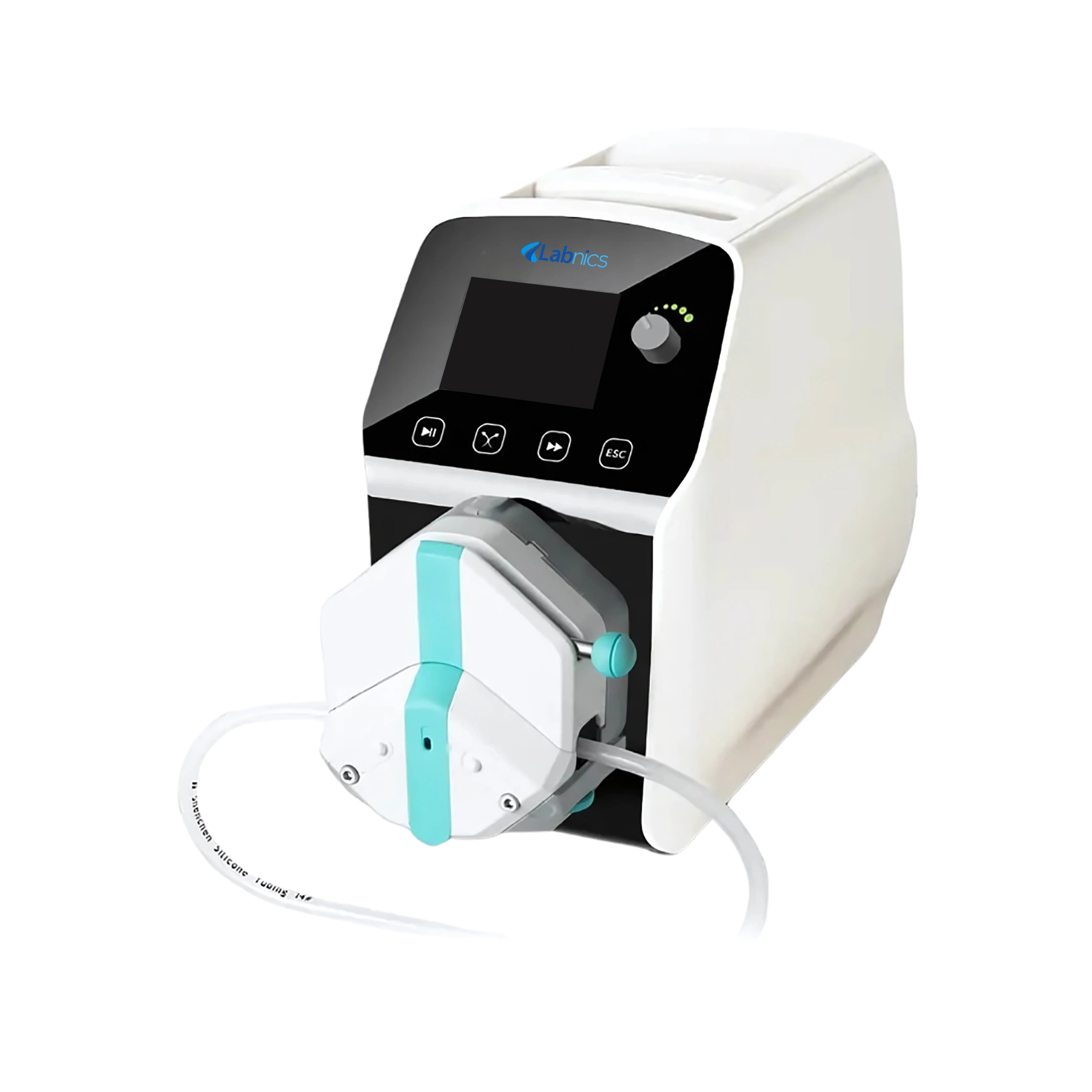

Intelligent Flow Peristaltic Pump NIFPP-301

Intelligent Flow Peristaltic Pump NIFPP-301 features a flow range from 0.0053 to 1808 mL per minute with a flow resolution of 0.01 mL. It has power-down memory that saves settings for reliable operation. Our peristaltic pump has a durable ABS plastic shell for enhanced protection. It provides tactile mechanical keys for comfortable and precise control. This unit includes a clear LCD screen for easy monitoring of settings.

---

$3,138.00

Buy Now Catalog

Specifications

Flow Range	0.0053 to 1808 mL/min
Flow Resolution	0.01 mL
Speed Range	0.1 to 350 RPM
Speed Resolution	0.1 RPM
Testing Time Range	0.1s to 9999h
Motor type	Closed-loop stepper motor
Display	3.2 inch
Temperature Range	0 to 40°C
Relative Humidity	<80%
Control Method	Mechanical keypad + Rotary encoded switch
Keypad Lifespan	300,000 times
Back Suction Angle	0 to 360°
External Control	0 to 5 V, 0 to 10 V, 4 to 20 mA (option)
Output Interface	Output motor working status (open-collector output)
Communication Interface	RS232/RS485 support MODBUS protocol (RTU mode)
Start/Stop, Direction Signal	Passive switch input (e.g., foot pedal)
Active Switch Signal	Default 5V to 24V active input
Power Consumption	<80 W
Power Supply	AC 220V±10%, 50Hz/60Hz
Dimension	259 × 157 × 237 mm
Weight	4.40 kg

Features

• Low noise operation
• Robust anti-jamming design
• UV spray coating
• Built-in timing function
• Wide voltage compatibility

Applications

• Our Intelligent Flow Peristaltic Pump is ideal for industrial automation, precise laboratory liquid transfer, controlled chemical dispensing, biomedical research, and food and beverage processing.

Standard Accessories

Silicone tubing (2 meters)

Operation manual × 1 pc

Power cable × 1 pc
