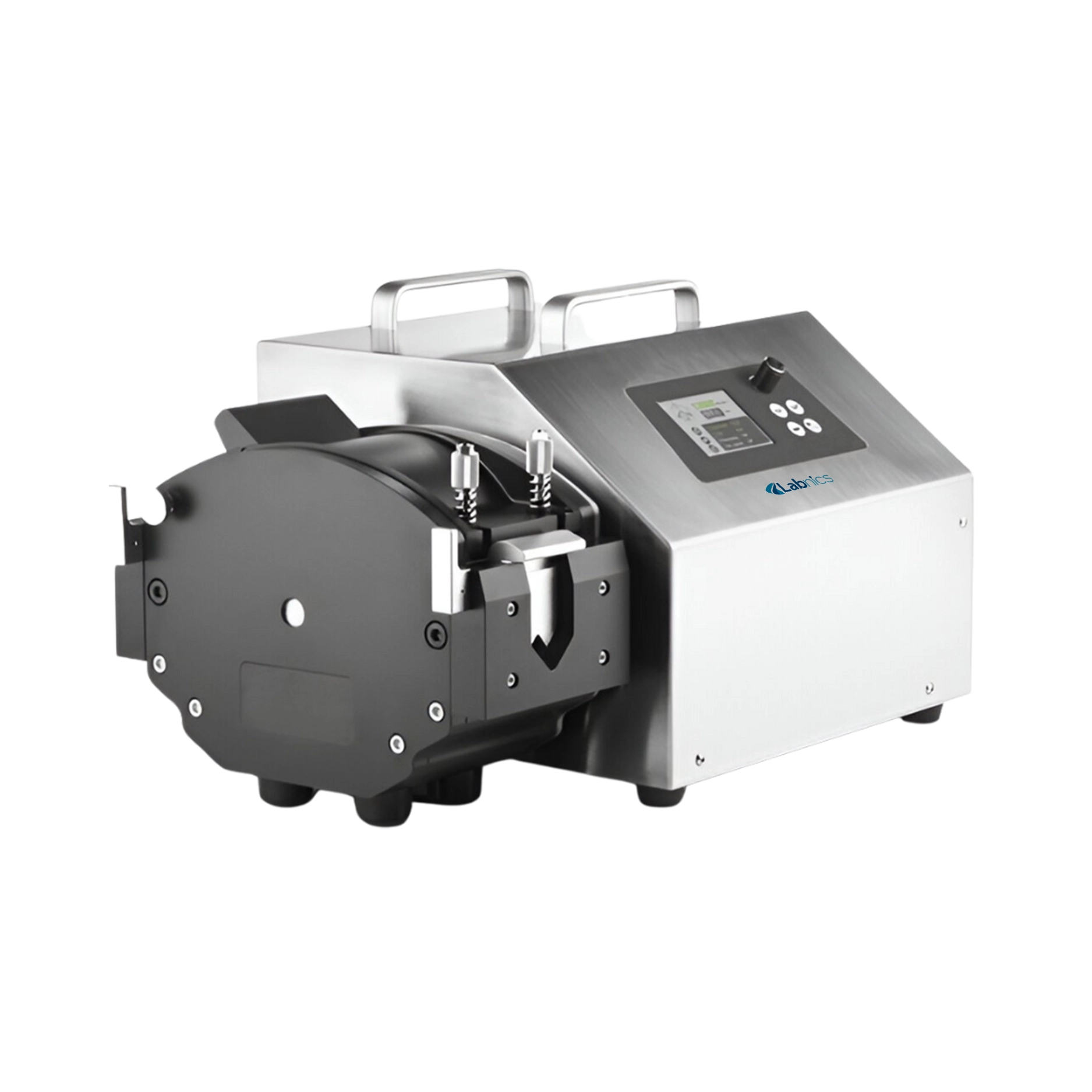

Industrial Peristaltic Pump NIPP-200

Industrial Peristaltic Pump NIPP-200 features a flow capacity ranging from 0.6 to 1800 L/min along with a flow accuracy within ±5%. It uses a four-roller design to ensure low pulsation and smooth flow. This unit includes a 3.2-inch LCD screen for clear display and monitoring. It features a durable aluminium alloy body for enhanced strength and protection. Our peristaltic pump provides strong torque to handle heavy loads while maintaining stable operation

---

$9,163.00

Buy Now Catalog

Specifications

Flow Range	0.6 to 1800 L/min
Flow Accuracy	<±5%
Speed Range	0.1 to 300 RPM
Speed Resolution	0.1 RPM
Testing Time Range	0.1s to 9999h
Motor type	Closed-loop stepper motor
Temperature Range	0 to 40°C
Relative Humidity	<80%
Control Method	Mechanical keypad + Rotary encoded switch
Keypad Lifespan	300,000 times
Back Suction Angle	0 to 360°
External Control	0 to 5 V, 0 to 10 V, 4 to 20 mA (option)
Output Interface	Output motor working status (open-collector output)
Communication Interface	RS232/RS485 support MODBUS protocol (RTU mode)
Start/Stop, Direction Signal	Passive switch input (e.g., foot pedal)
Active Switch Signal	Default 5V to 24V active input
Power Consumption	<80 W
Power Supply	AC 220V±10%, 50Hz/60Hz
Dimension	262.4 × 302 × 267.9 mm
Weight	4.40 kg

Features

• Shock load distribution
• Low pulsation operation
• Digital knob control
• Multi-contact planetary gear design
• Compact structure

Applications

• Industrial Peristaltic Pump NIPP-200 is designed for accurate fluid transfer in chemical processing, pharmaceutical production, and laboratory applications, ensuring gentle handling of sensitive liquids.

Standard Accessories

Silicone tubing (2 meters)

Operation manual × 1 pc

Power cable × 1 pc
