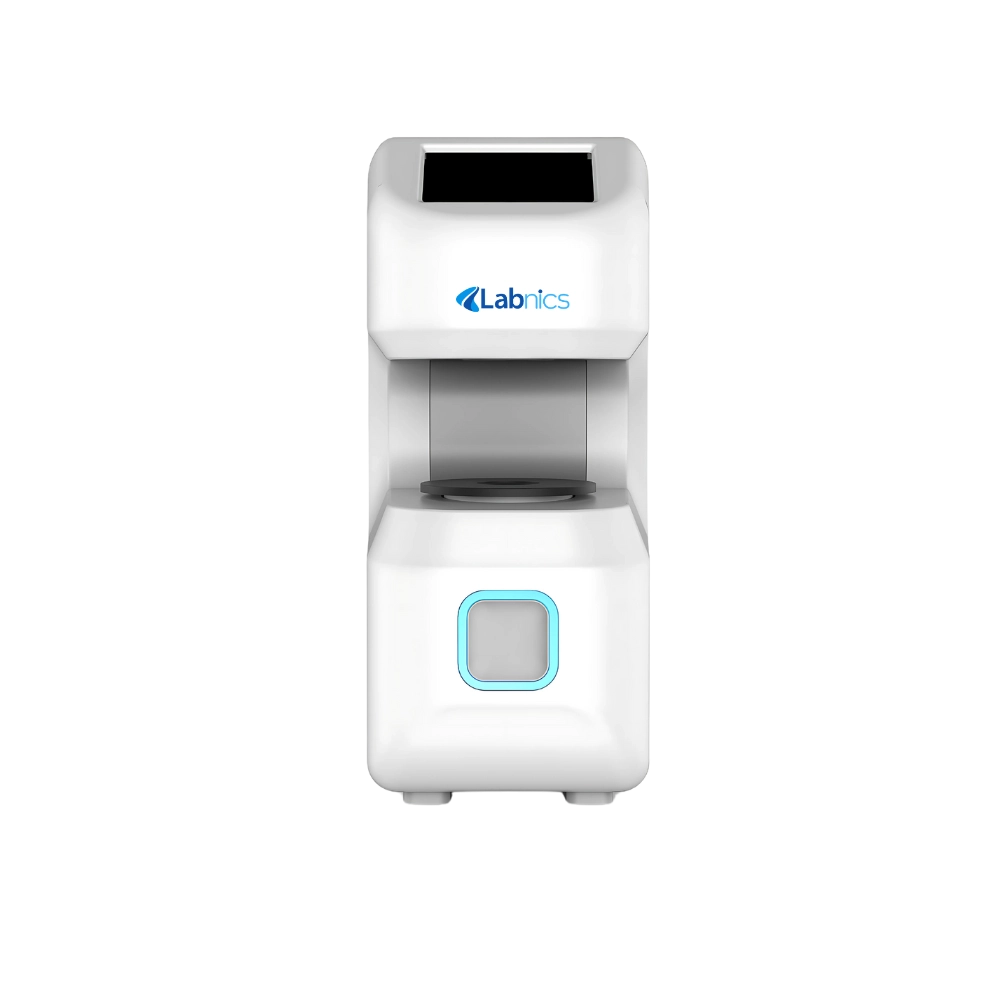

Portable Haze Meter NPHM-100

Portable Haze Meter NPHM-100 has a standard aperture size of 21mm for testing a wide range of samples. It measures haze and transmittance from 0 to 100%, covering transparent and opaque materials. This unit uses a 0/d measurement geometry for precise testing accuracy. It includes three light sources, CIE-A, CIE-C, and CIE-D65 to accommodate different testing standards. Our haze meter features a user-friendly display for easy navigation of various functions.

---

$1,925.00

Buy Now Catalog

Specifications

Test aperture size	21mm
Measurement range	0 to 100%
Resolution	0.001
Haze repeatability	0.1
Sample size	Thickness ≤40mm
Geometry	0/d
Parameter	ASTM-haze/transmittance
Working temperature	5 to 40°C
Storage temperature	-20 to 45°C
Light source	CIE-A, CIE-C, CIE-D65
Standards	ASTM D1003/D1044, ISO 13468/ISO14782, JIS K 7105, JIS K 7361, JIS K 7136, GB/T 2410-08
Spectral response	CIE Luminosity function Y/V(λ)
Display	2.8 inches touch screen
Memory	Mass storage
Interface	USB
Power supply	DC 5V/2A
Dimension	133×99×224mm
Weight	1.13kg

Features

• USB data transfer
• Mass storage for data
• Touch screen operation
• Durable construction
• Easy sample insertion
• Real-time data analysis
• Meets global standards

Applications

• Portable Haze Meter NPHM-100 is used to measure the haze and transmittance of materials, ensuring their optical quality and transparency. It is commonly used in industries such as plastics, packaging, automotive, and laboratory testing.

Standard Accessories

Free PC software (Haze QC)
