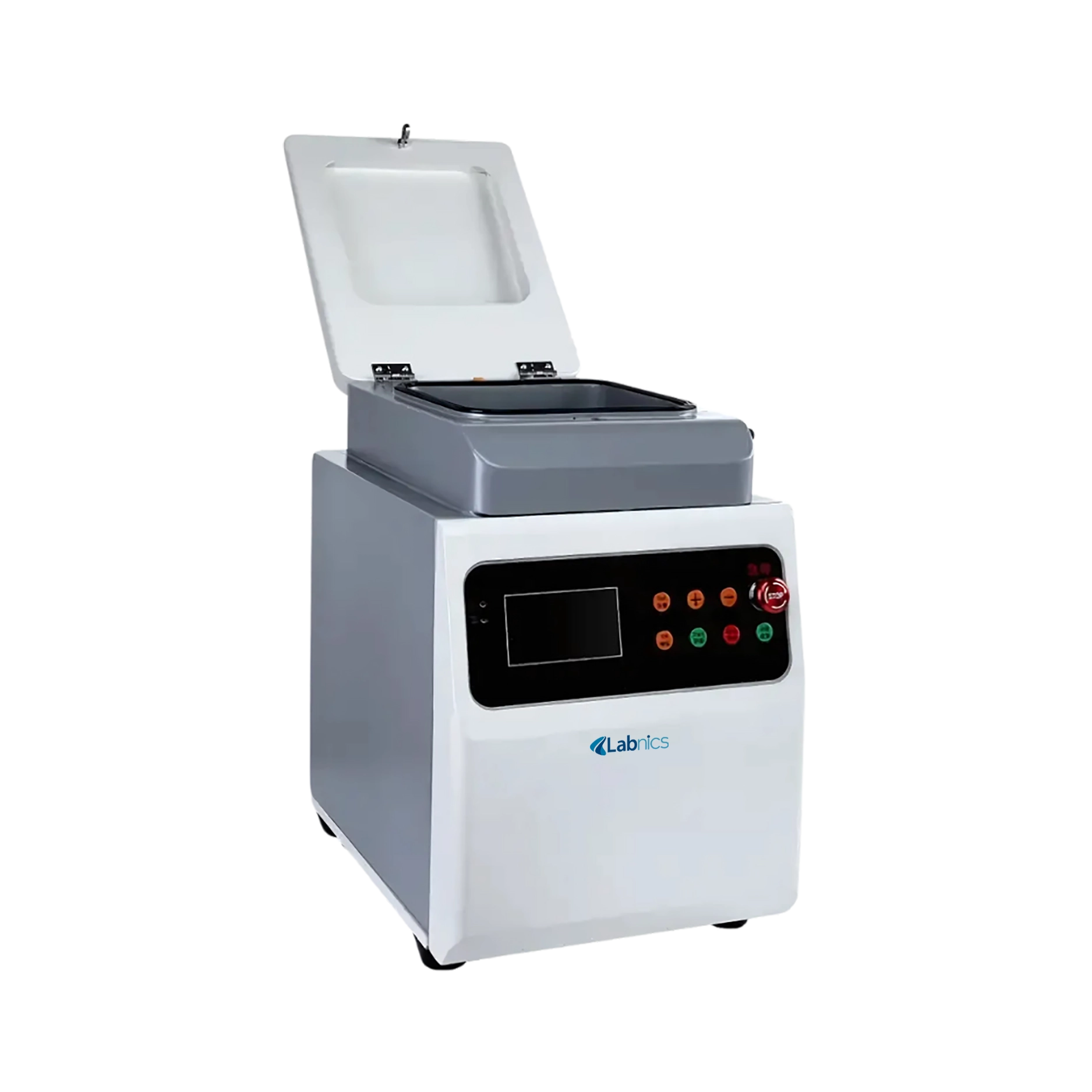

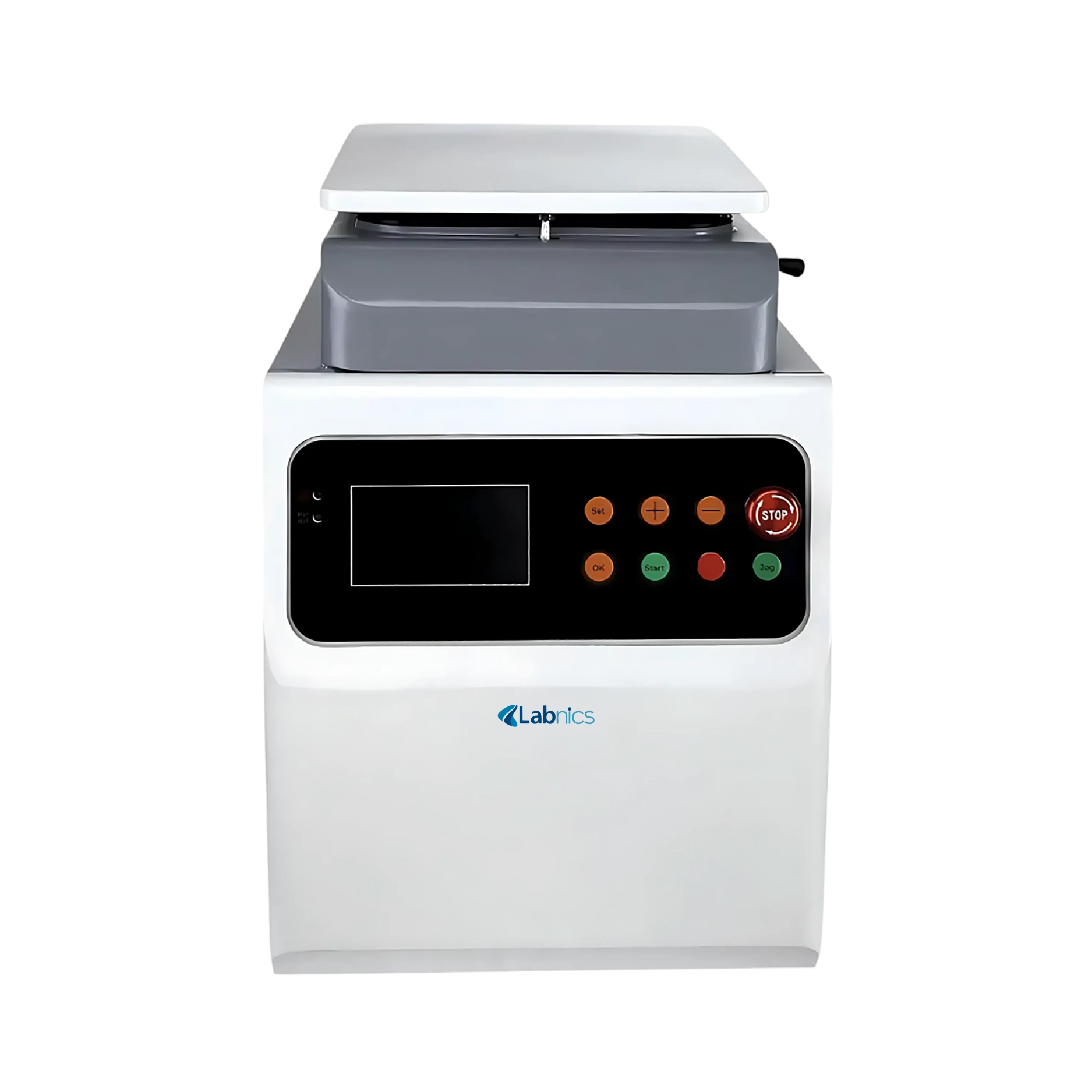

High Throughput Tissue Grinder NHTG-200

High Throughput Tissue Grinder NHTG-200

High Throughput Tissue Grinder NHTG-200 operates within a vibration frequency range of 10 to 70 Hz/min and maintains a noise level below 65 dB. It comes with a built-in program controller for setting grinding time and vibration frequency. This unit supports oscillating motion to enhance grinding efficiency. It features a 7-inch colour LCD display for clear and easy control. Our tissue grinder offers customizable settings for precise and flexible operation.


$3,300.00

Catalog

Specifications

Sample handling capacity 12 × 5 ml
8 × (7 to 15) ml
4 × 25 ml
2 × 50 ml
Vibration frequency range 10 to 70 Hz/min
Grinding method Dry, wet, cryogenic grinding
Final Particle Size Approximately 5 µm
Noise level <65 dB
Timer range 0 seconds to 99 minutes
Acceleration Time Within 2 seconds
Deceleration Time Within 2 seconds
Grinding tool material Alloy steel, PTFE
Grinding ball material Alloy steel, Chromium, Zirconium oxide, Tungsten carbide, Silica
Grinding ball size 0.1 to 30 mm
Power supply 220 V / 50 Hz, 2 phases
Dimension 280 × 400 × 530 mm
Weight 40 kg

Features

  • Safety lock protection
  • Shockproof design
  • Durable construction
  • Advanced grinding technology
  • Anti-slip foot pad

Applications

  • High Throughput Tissue Grinder NHTG-200 is suitable for high-throughput sample preparation across genomics, proteomics, pharmaceutical analysis, and advanced material research.

Optional Accessories

PE/PTFE square adapter × 1 set

Metal adapter × 1 set

Ask Expert

FAQ for High Throughput Tissue Grinder NHTG-200

1: How does the High Throughput Tissue Grinder NHTG-200 prevent cross-contamination?

The High Throughput Tissue Grinder NHTG-200 prevents cross-contamination by grinding each sample in a sealed, disposable centrifuge tube. This enclosed system ensures sample integrity and eliminates exposure to external contaminants.

2: Does the High Throughput Tissue Grinder NHTG-200 allow saving custom settings for repeated use?

Yes, the High Throughput Tissue Grinder NHTG-200 comes with a microcomputer-controlled 7-inch touchscreen that allows storage of up to 36 parameter sets. This simplifies repeated experiments by ensuring consistent performance and reducing setup time.

3: What grinding methods are supported by the High Throughput Tissue Grinder NHTG-200?

Our High Throughput Tissue Grinder NHTG-200 supports dry, wet, and cryogenic grinding, offering flexibility in sample preparation for different types of biological and material specimens.

4: What safety features are included in the High Throughput Tissue Grinder NHTG-200?

The High Throughput Tissue Grinder NHTG-200 includes a safety lock mechanism and automatic fastening system, which keep the lid securely closed during operation to protect users from accidental exposure.

5: How should I clean the High Throughput Tissue Grinder NHTG-200 after use?

After each use, clean the exterior with a soft, damp cloth. For the grinding accessories of the High Throughput Tissue Grinder NHTG-200, remove and rinse the tubes, adapters, and beads with appropriate cleaning agents, depending on the sample type, and ensure they are thoroughly dried before reuse.

6: How does the High Throughput Tissue Grinder improve lab efficiency?

It allows you to process multiple samples simultaneously at high speeds, significantly reducing preparation time and increasing overall lab productivity.

7: How does the pre-cooling feature benefit my research?

The pre-cooling option protects sensitive samples from temperature fluctuations, maintaining sample integrity and improving the accuracy of your results during the homogenization process.

8: Is it possible to switch between different tube sizes on the same unit?

Yes, Labnics High Throughput Tissue Grinders offer interchangeable adapter options, allowing users to switch between tube sizes with ease. This flexibility makes them a smart choice for labs handling diverse sample types and volumes.

9: Can the High Throughput Tissue Grinder handle a variety of sample types?

Yes, the grinder is versatile and capable of homogenizing animal, plant, and microbial tissues.


High Throughput Tissue Grinder NHTG-200

High Throughput Tissue Grinder NHTG-200

Related Models Of High Throughput Tissue Grinder

Labnics High Throughput Tissue Grinders ensure fast and uniform sample preparation for lab applications. They operate at a speed range, delivering efficient and precise grinding results.
They feature pre-cooling options to protect temperature-sensitive materials during processing.
These units support multiple grinding tanks, enabling high-throughput and flexible workflows.
Our units are ideal for research labs requiring reliable and consistent tissue homogenization.
