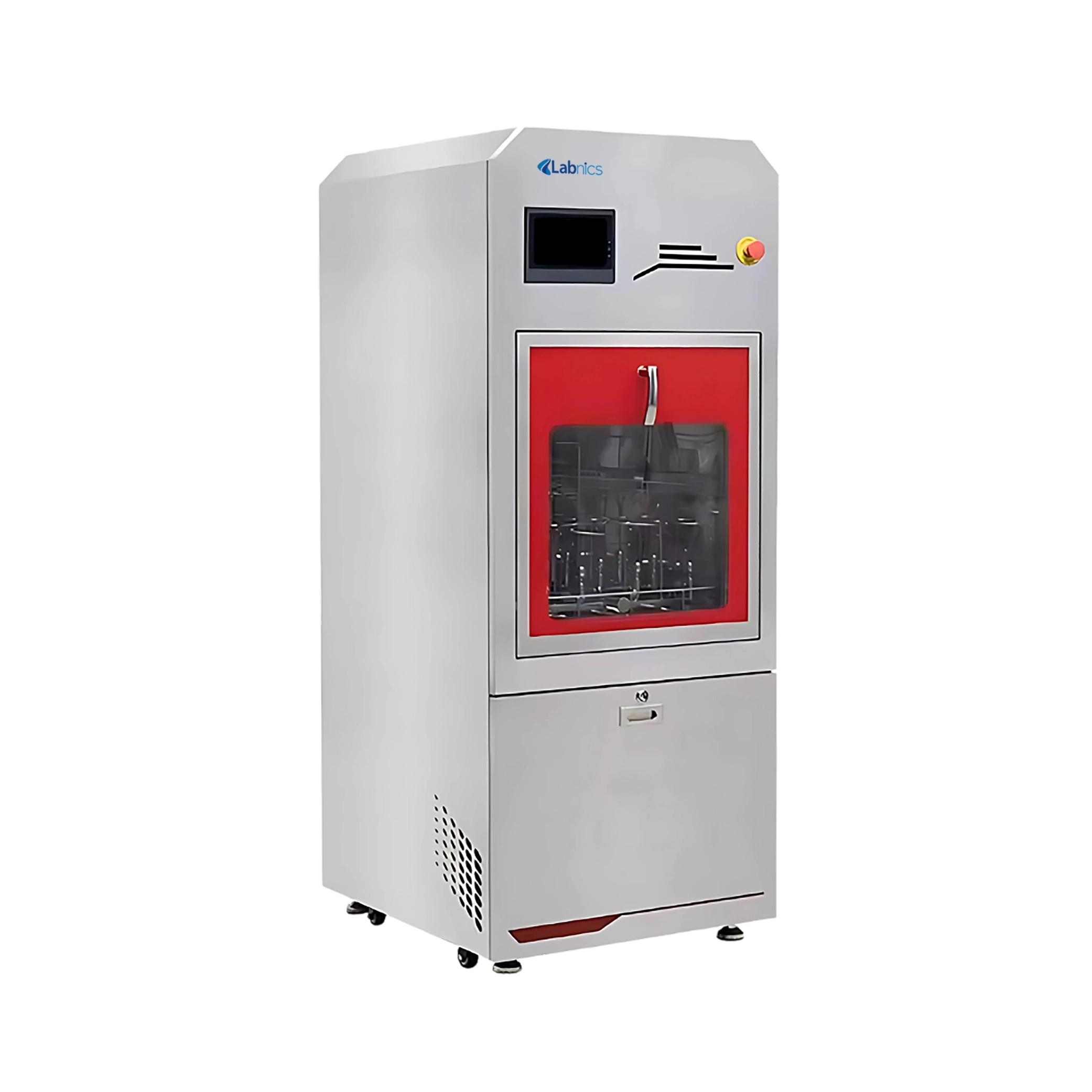

Automatic Glassware Washer NAGW-204 consumes 22L of water per cycle, ensuring efficiency and minimal waste. It comes with a spacious 320L capacity, making it ideal for various glassware sizes. This unit features a 7-inch LCD touchscreen, making operation easy and intuitive. It includes a self-cleaning program to help maintain internal cleanliness. Our glassware washer is equipped with a visual and audible alarm that alerts users to any malfunctions.
$30,675.00
Specifications
| Capacity | 320L |
| Water consumption/cycle | 22L |
| Tank internal temperature | 0 to 99°C |
| Water supply pressure | 0.3 to 1 MPa |
| Washer load level | 3 |
| Peristaltic pump for cleaning agent | 2 independent pumps control the detergent agent and neutralizing agent |
| Cleaning agent level sensor | Yes |
| Washing pump | 1000L/min |
| Drying function | Yes |
| Steam Condenser | Yes |
| Control system | Microprocessor |
| Display | 7-inch color LCD touchscreen |
| Cleaning program | 12 pre-set programs (editable) + 99 PLC free programming |
| Password protection | 3 levels password |
| Safety emergency button | Yes |
| USB port | Yes |
| Integrated printer | Optional |
| Online monitoring performance of washing | Optional |
| Door | Double-layered glass door |
| Safety door lock | Yes |
| Built-in RO water pump | Yes |
| Noise level | Less than 55 dB |
| Power consumption (water washing) | 1.5kW |
| Power consumption (water heating) | 5kW |
| Power consumption (drying) | 3.6kW |
| Overall power consumption | 7kW |
| Power supply | 220V to 240V/ 50 to 60Hz |
| Chamber dimension | 600×629×915mm |
| External dimension | 693×790×1985mm |
| Packaging dimension | 810×990×2185mm |
| Net weight | 237kg |
| Gross weight | 320kg |
