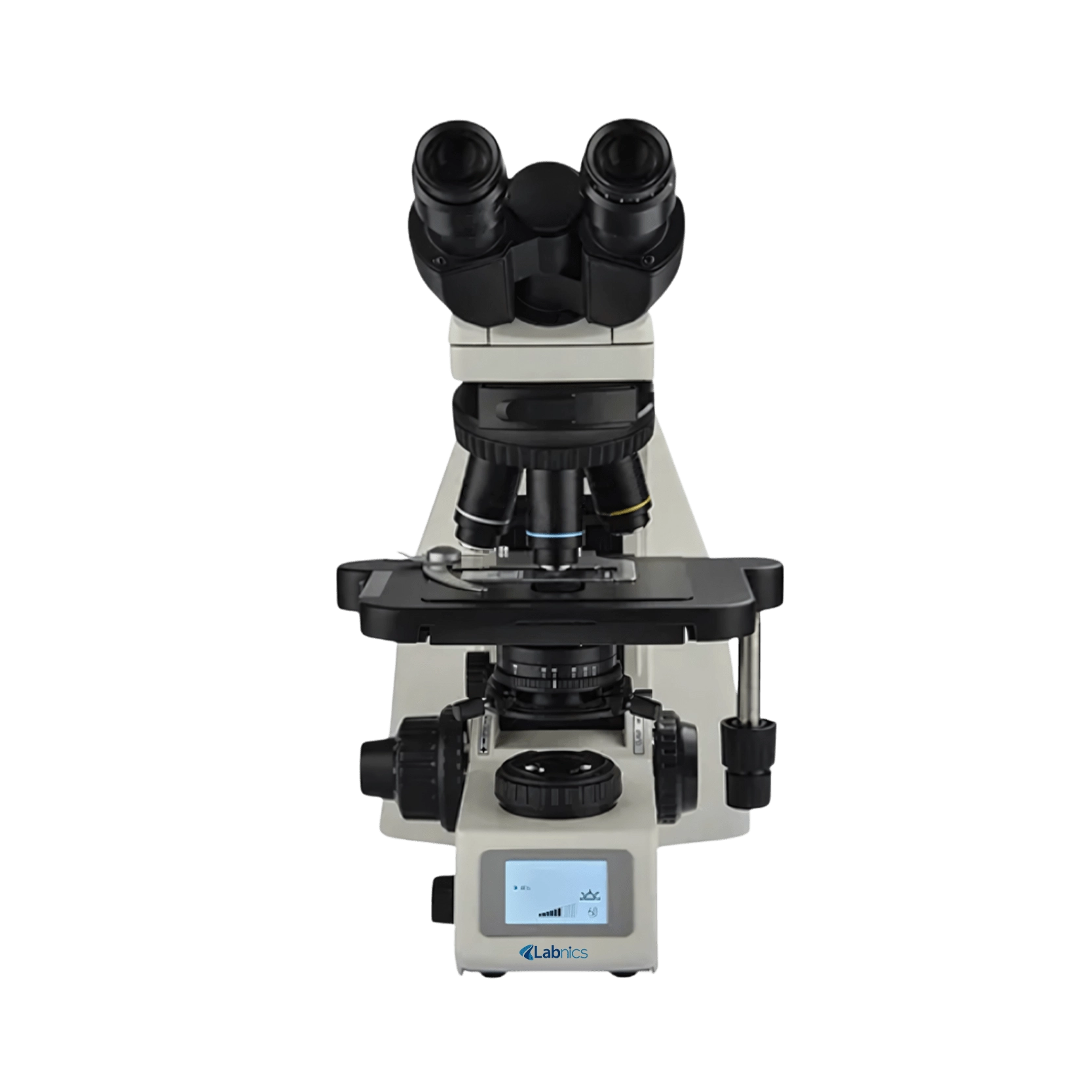

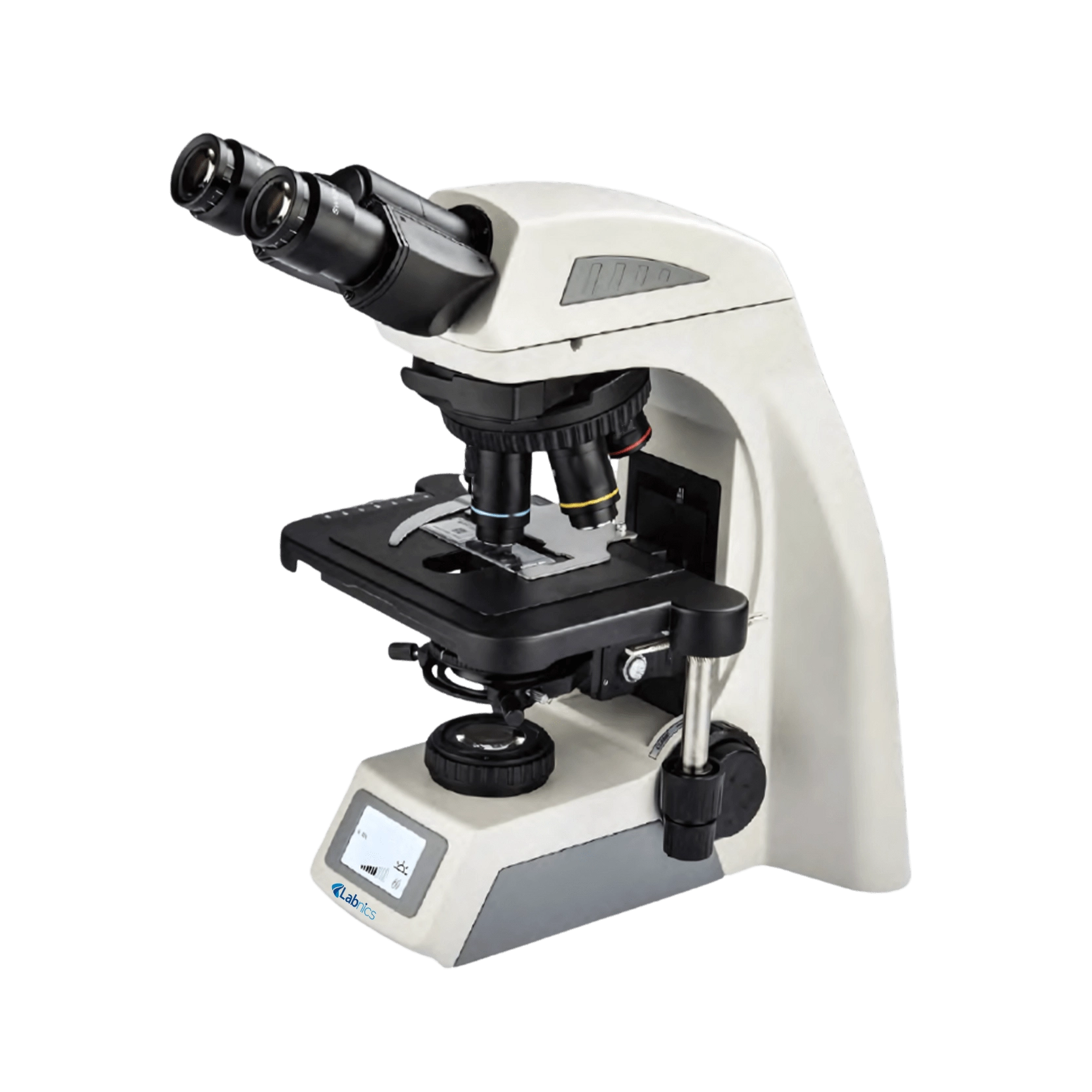

Fluorescence Microscope NFM-102

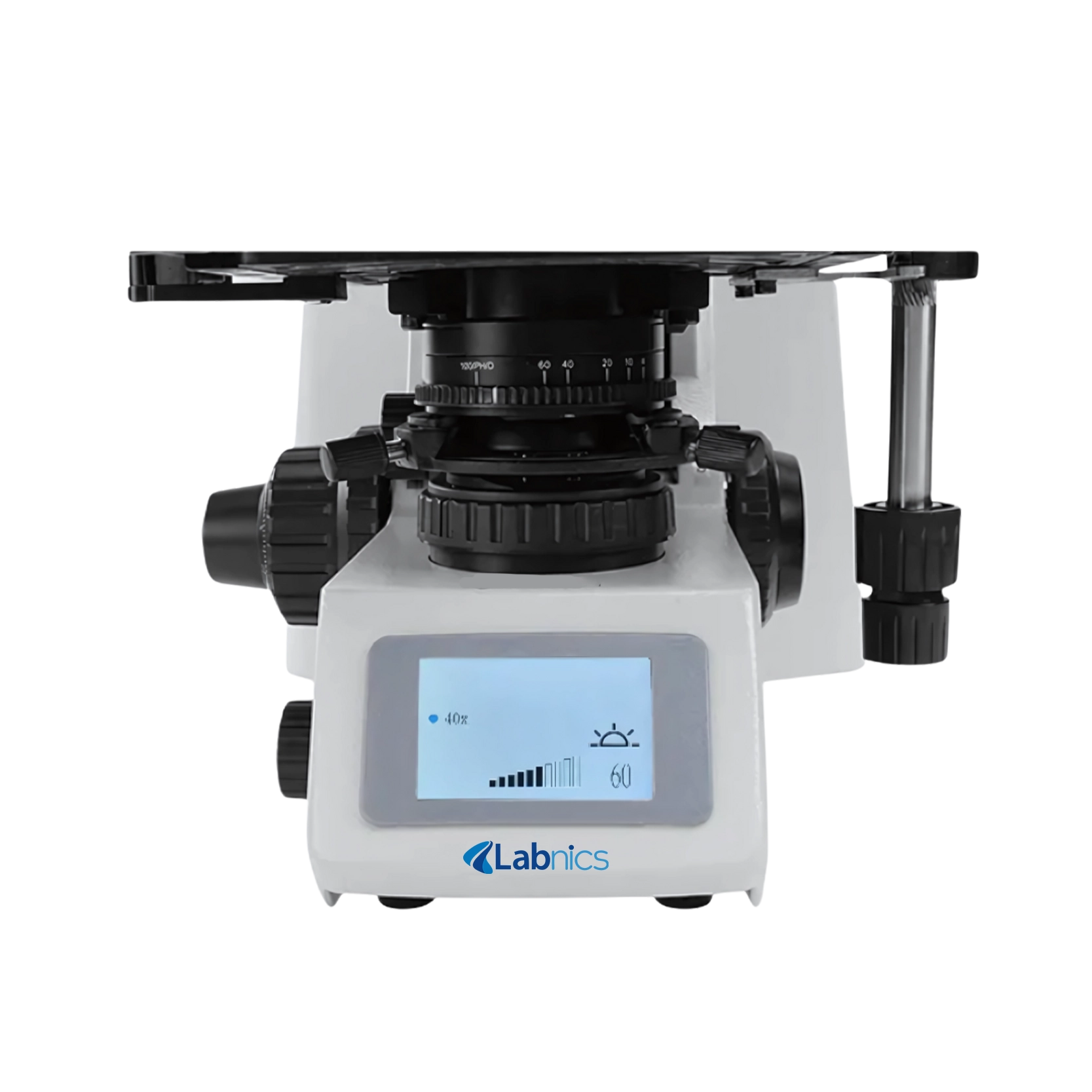

Fluorescence Microscope NFM-102 provides 10x magnification with a 22mm field of view for enhanced specimen clarity. It has a backward quintuple nosepiece with coding for smooth objective switching. This unit enables rapid transitions between observation modes using an intuitive slider mechanism. It offers two slots for seamless and efficient fluorescence filter exchange. Our microscope incorporates an intuitive LCD screen that displays real-time operational information.

---

$2,888.00

Buy Now Catalog

Specifications

Optical system	Infinity optical system
Viewing head	Infinity seidentopf binocular viewing head, inclined at 30°, interpupillary 47 to 78mm
Eyepiece	EW10x/22mm
Objective	Infinity plan objective
Nosepiece	Backward quintuple nosepiece (coding)
Condenser	Inserted abbe condenser NA1.25 (including empty plate)
Focusing system	Coaxial coarse and fine adjustment, coarse stroke 37.7mm per rotation, fine stroke 0.2mm per rotation, fine division 0.002mm, moving range 30mm
Illumination	3W S-LED (LCD Display magnification, timing sleep, brightness indication, and lock)
Rackless stage dimension	230×150mm
Moving range dimension	78×54mm
Dimension	300×220×422mm
Packaging dimension	470×310×570cm
Net weight	10kg
Gross weight	12kg

Features

• Long-lasting LED illumination
• Wireless and wired image transfer
• External rechargeable battery
• Long working distance objectives
• Phase contrast and dark field modes
• Durable and ergonomic design

Applications

• Fluorescence Microscope NFM-102 is used for high-precision fluorescence imaging, enabling detailed observation of biological samples. It is widely utilized in research laboratories, medical diagnostics, educational institutions, and environmental analysis.

Standard Accessories

Dust cover

---

Power cable

---

USB port
