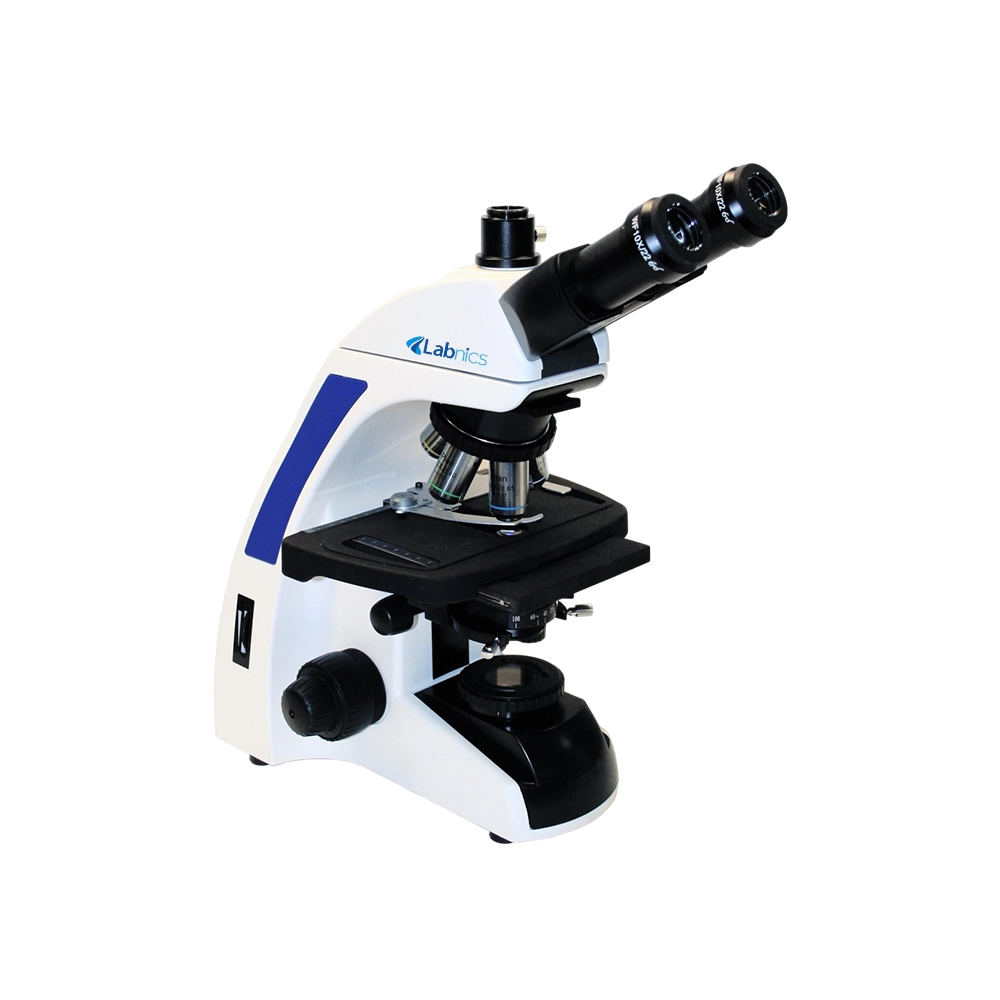

Biological Microscope NBM-108

Biological Microscope NBM-108 features a binocular viewing head inclined at 45⁰ for comfortable and flexible viewing. It offers 10x magnification with a 20mm field of view for improved specimen observation. The double-layer mechanical stage features a graphite-coated surface for enhanced durability and ease of movement. It includes Kohler illumination with LED lights for consistent brightness. Our microscope has precision metal cog-wheel gearing for smooth, accurate condenser adjustments.

---

$1,350.00

Buy Now Catalog

Specifications

Optical System	Finite Optical System
Viewing Head	Seidentopf Binocular Viewing Head Inclined at 45⁰ 360⁰Rotatable
Eyepiece	Wide Field Eyepiece WF10X/20mm
Nosepiece	Quadruple Nosepiece
Objective	Finite 195 Series Achromatic Objectives 4X 10X 40Xs 100Xs(oil)
Condenser	Abbe Condenser NA1.25 with Diaphragm, Filter
Focusing Unit	Coarse and Fine Adjustment Fine Division: 0.001mm Coarse Stroke: 37.7mm/Rotation Fine Stroke: 0.1mm/Rotation Moving range: 24mm
Stage	Double Layer Mechanical Stage: 142 × 132mm Moving Range: 75mm × 50mm
Illumination	External Illumination, 3W/LED
Packaging Dimensions	540 × 330 × 400 mm
Net Weight	7 Kg
Gross Weight	9.5kg

Features

• High contrast full plan objectives
• Ergonomically designed main body
• Diopter adjustment of eyepiece
• Elevated view for easy observation
• Coarse and fine adjustment

Applications

• Biological Microscope NBM-108 is used to observe and study small biological specimens, allowing for detailed examination of cellular structures and microorganisms. It is commonly utilized in research laboratories, educational institutions, and medical facilities.

Optional Accessories

WF20X/12mm eyepiece

---

Set of finite Plan CF 4x 10x 40x 100xs(oil) objective

---

WF16X/15mm eyepiece
