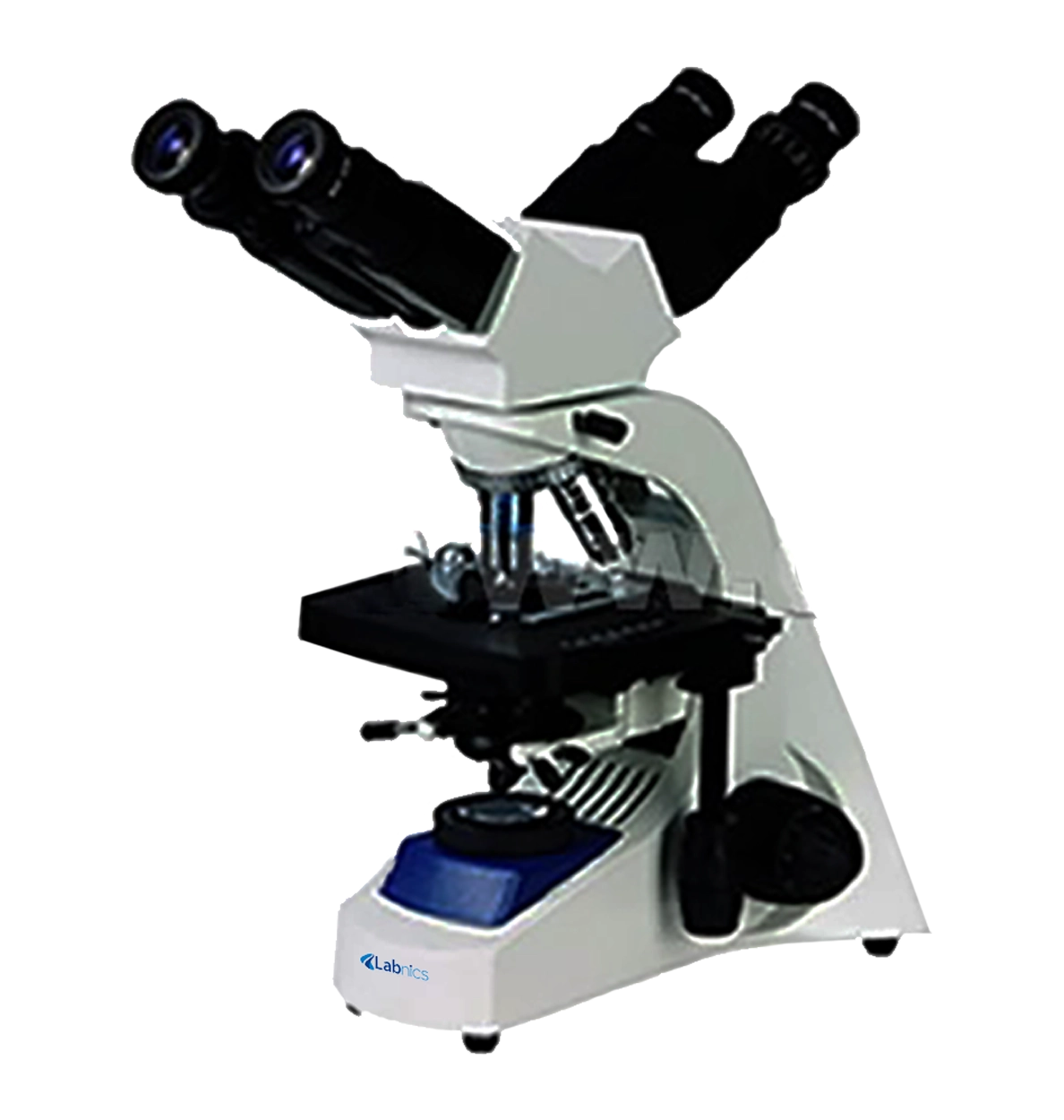

Biological Microscope NBM-104

Biological Microscope NBM-104 is an optical microscope featured with dual binocular heads with bright field mode that enables examination of specimens by two users simultaneously. The eyepieces are shielded with foldable eye guards that provide comfort to the user for prolonged viewing sessions.

---

$2,363.00

Buy Now Catalog

Specifications

Optical System	Achromatic Optical System
Observation	Bright field
Viewing Head	Dual binocular view head, 30°inclined binocular head
Interpupillary adjustment	55-75mm
Dioptre adjustment	± 5 dioptres
Objectives	4X/0.1, 10X/0.25, 40X/0.65, 100X/1.25
Eyepiece	Wide field WF10X/ 20 mm
Nosepiece	Quadruple nosepiece
Condenser	Kohler type N.A. 1.25 condenser with Iris Diaphragm
Stage	Mechanical double layer stage with scale
Illumination	6V/20W halogen lamp or LED light
Dimensions of Stage	180 x 150 mm
Moving range	75 × 30 mm
Moving accuracy	0.1 mm
Fine adjustment accuracy	0.002mm
Power supply	AC 100~250V, 50 / 60Hz
External Dimensions	48×62×41 cm
Weight	13 kg

Features

• Smooth and accurate nosepiece movement with positive click stop
• Objective head possess features like parfocality and centration
• Dust proof caps bound to all the ports
• Roller and guider movement (Roller and pinion)
• Exact positioning of slides with spring loaded specimen holder
• Co-axial coarse as well as fine focusing properties
• Equipped with stage stopper to prevents collision of objective and the slide

Applications

• It is widely used for microscopic examination of biological specimens, test samples in healthcare and Research organizations, Industries, agriculture and biotechnological laboratories, food processing and developmental studies etc.

Standard Accessories

Accessories No	Name
1	Dust cover

Optional Accessories

Accessories No	Name
1	Trinocular view head
2	20X, 60X objective
