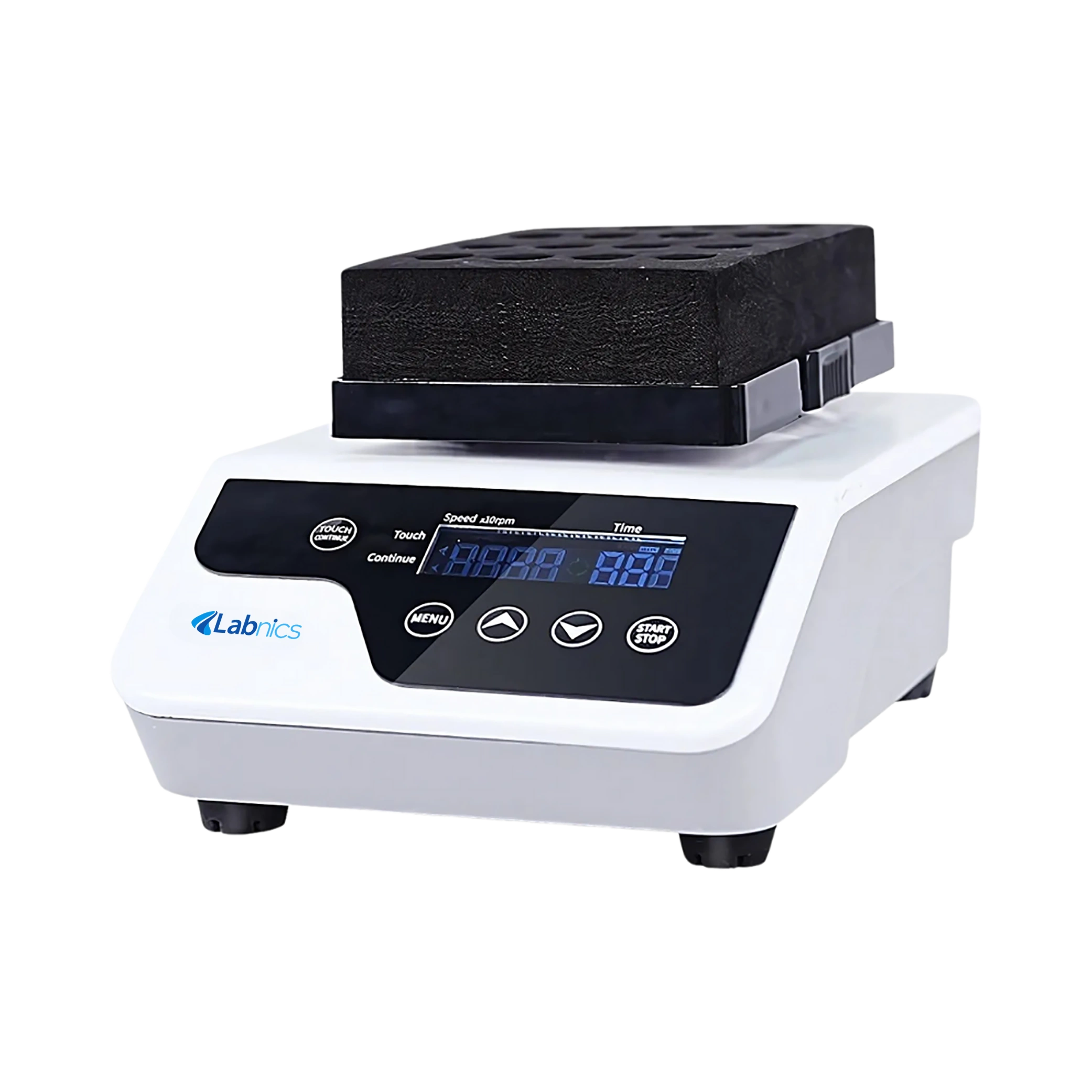

Benchtop vortex mixer NBVM-601 operates with a 4.5 mm orbital diameter and accommodates up to 1.5 kg of load. It offers smooth switching between click and continuous modes for flexible use. This vortex mixer is equipped with a high-speed processing chipset for quick and efficient performance. It supports rapid identification of the maximum speed for each attachment. Our unit ensures reduced interference for stable and uninterrupted operation.
$1,225.00
Specifications
| Speed Range | 200 to 3000 r/min ±15% |
| Maximum Load | 1.5 kg |
| Type of Movement | Circumferential |
| Orbital Diameter | 4.5 mm |
| Control Mode | PWM stepless speed regulation |
| Power Fuse | PPTC self-restoring fuse |
| Fastest Acceleration Time | ≤3 seconds |
| Fastest Deceleration Time | ≤3 seconds |
| Display | High-light LED digital tube with full-segment display |
| Timing Range | 1 second to 999 minutes |
| Ambient Temperature | +5°C to +40°C |
| Relative Humidity | Up to 80% |
| Noise Level | ≤45 dB(A) |
| Protective Class | IP20 |
| Compliance Standards | EN 61010-1, EN 61010-2, EN 61326-1, EN 61010-3-2/A2 |
| Power Consumption | 18 W |
| Power Supply | DC 24V |
| Dimensions (L × W × H) | 198 × 138 × 67 mm |
| Weight | 4.1 kg |
Features
Applications
Ask Expert
FAQ for Benchtop vortex mixer NBVM-601
1: How does the orbital diameter affect the performance of the Benchtop vortex mixer NBVM-601?
The 4.5 mm orbital diameter of the Benchtop vortex mixer NBVM-601 ensures thorough and uniform mixing, especially in small-volume tubes and vials, while minimizing splashing and sample loss.
2: Is the Benchtop vortex mixer NBVM-601 equipped with safety features for continuous use?
Yes, the Benchtop vortex mixer NBVM-601 includes built-in over-temperature protection and a cool-running magnet rotor, which help prevent overheating and ensure user safety during extended operation.
3: How can I maintain stability during the operation of the Benchtop vortex mixer NBVM-601?
To ensure stable performance, place the Benchtop vortex mixer NBVM-601 on a vibration-free surface, balance the samples properly, and avoid exceeding the recommended load.
4: Can the Benchtop vortex mixer NBVM-601 accommodate different types of sample holders or attachments?
Yes, the Benchtop vortex mixer NBVM-601 supports rapid identification of the maximum speed for each attachment, ensuring compatibility and optimal performance with various sample containers.
5: What should I do if the Benchtop vortex mixer NBVM-601 does not power on or stops during use?
If the Benchtop vortex mixer NBVM-601 fails to start, check the DC 24V power connection, ensure the PPTC self-restoring fuse is intact, and confirm that the device is placed on a level surface with a load within its 1.5 kg capacity.
Labnics Vortex Mixer provide gentle mixing with minimal noise, ensuring efficient and quiet operation. They come with rubber grippers to ensure stability and prevent movement during operation. This unit features a corrosion-resistant aluminum casing for enhanced durability. They offer both touch and continuous modes for versatile operation. Our unit includes an LED indicator for clear visibility of operational status, allowing easy monitoring.
