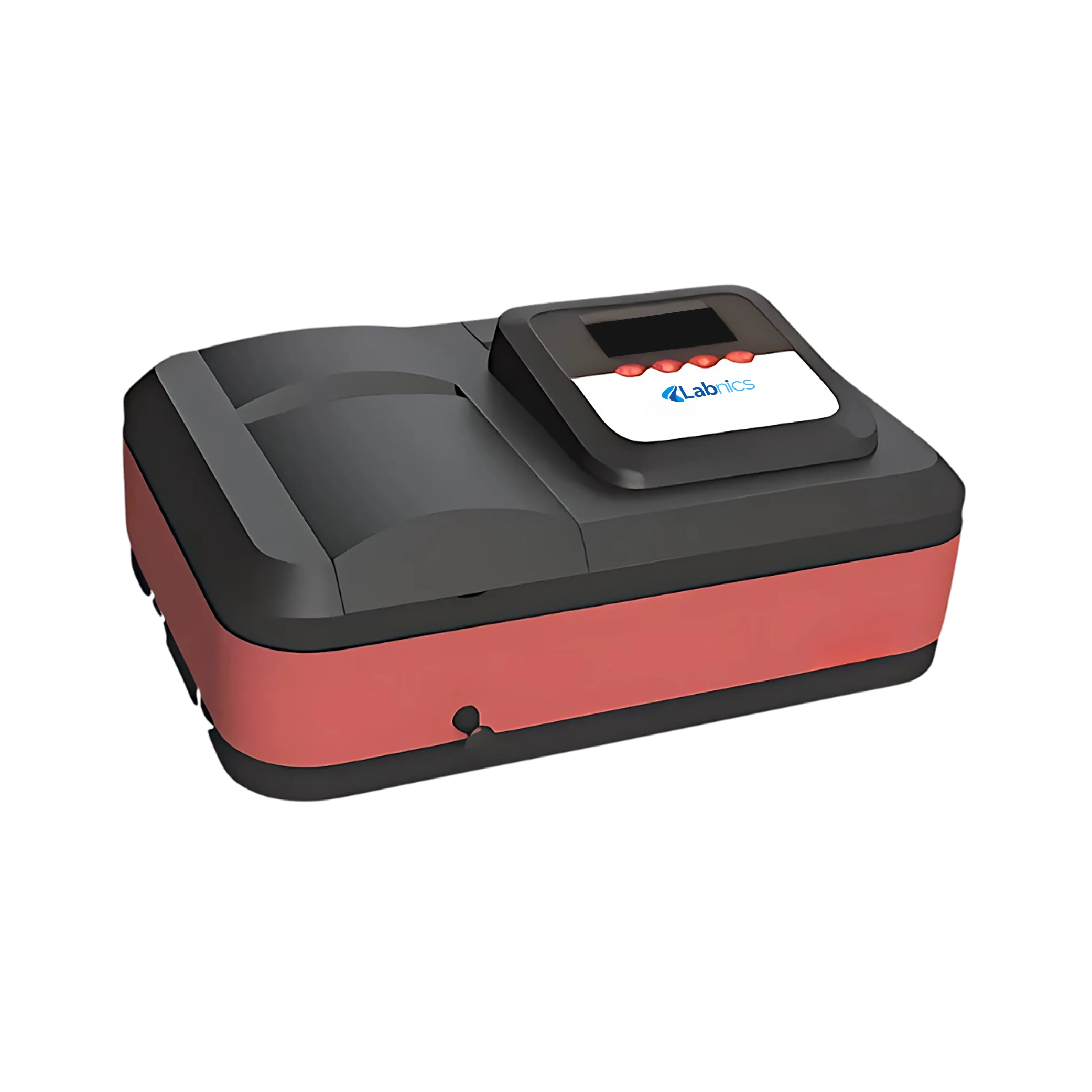

Visible Spectrophotometer NVS-401

Visible Spectrophotometer NVS-401

Visible Spectrophotometer NVS-401 operates within a wavelength range of 325 to 1000 nm to deliver precise photometric analysis. It features microcomputer control and a large LCD display for easy operation. This has automatic wavelength adjustment and filter switching ensure accuracy and efficiency. It is equipped with data storage capability that allows saving multiple sets of readings and curves. Our device also offers USB connectivity and a printer interface for convenient data transfer and reporting.


$1,850.00

Catalog

Specifications

Wavelength Range 325 to 1000 nm
Bandwidth 4.0 nm
Wavelength Accuracy ±2.0 nm
Wavelength Repeatability 0.5 nm
Photometric Accuracy ±0.5% τ
Photometric Repeatability 0.2% τ
Stray Light ≤0.1% τ
Stability 0.001 A/h at 500 nm
Photometric Mode TA, C, E
Photometric Display Range -0.3 to 3 A
Wavelength Setting Automatic
Display LCD
Detector Silicon Photodiode
Light Source Tungsten Halogen Lamp
Power Consumption 120 W
Power Supply AC 220V/50Hz or 110V/60Hz
Dimensions (W × D × H) 470 × 325 × 200 mm
Weight 9 Kg

Features

  • Parallel Printer Interface
  • Standard Curve Establishment
  • Large Sample Holder
  • Direct Concentration Input
  • Built-in Calibration Mode

Applications

  • Visible Spectrophotometer NVS-401 is used for quantitative and qualitative analysis of solutions in laboratories. It is widely applied in pharmaceutical research, clinical diagnostics, food quality testing and academic institutions for accurate absorbance and transmittance measurements.

Standard Accessories

1 cm Glass Cuvettes × 4 pcs

Dust Cover × 1 pcs

Power Cable × 1 pcs

Ask Expert

FAQ for Visible Spectrophotometer NVS-401

1: How should the Visible Spectrophotometer NVS-401 be maintained for long-term use?

Keep the instrument clean, cover it with the dust cover when not in use, and follow regular calibration and lamp replacement schedules for optimal performance.

2: Is training required before operating the NVS-401?

Yes, basic training is recommended to ensure accurate readings and proper handling of samples during analysis in NVS-401.

3: What type of samples can Visible Spectrophotometer NVS-401 analyze?

Visible Spectrophotometer NVS-401 can analyze clear liquid samples commonly used in research, clinical diagnostics, food testing, and environmental studies.

4: How do you ensure consistent results across multiple tests in NVS-401?

Use standardized cuvettes, maintain clean optical components, and regularly verify calibration settings.

5: Can it be integrated into digital lab management systems?

Yes, Visible Spectrophotometer NVS-401 includes a USB interface, making it easy to connect with computers and integrate into digital record-keeping systems.


Visible Spectrophotometer NVS-401

Visible Spectrophotometer NVS-401

Related Models Of Visible Spectrophotometer

Labnics Visible Spectrophotometer provides broad-spectrum analysis for diverse applications, ensuring reliable optical measurements. They offer flexible sample analysis with automatic cell holders for efficient testing. Our models enable real-time storage of data and curves for convenient analysis. They are equipped with a user-friendly interface, including LCD for easy operation. These units come with silicon photodiodes as detectors for precise measurement of transmittance and reflectance.
