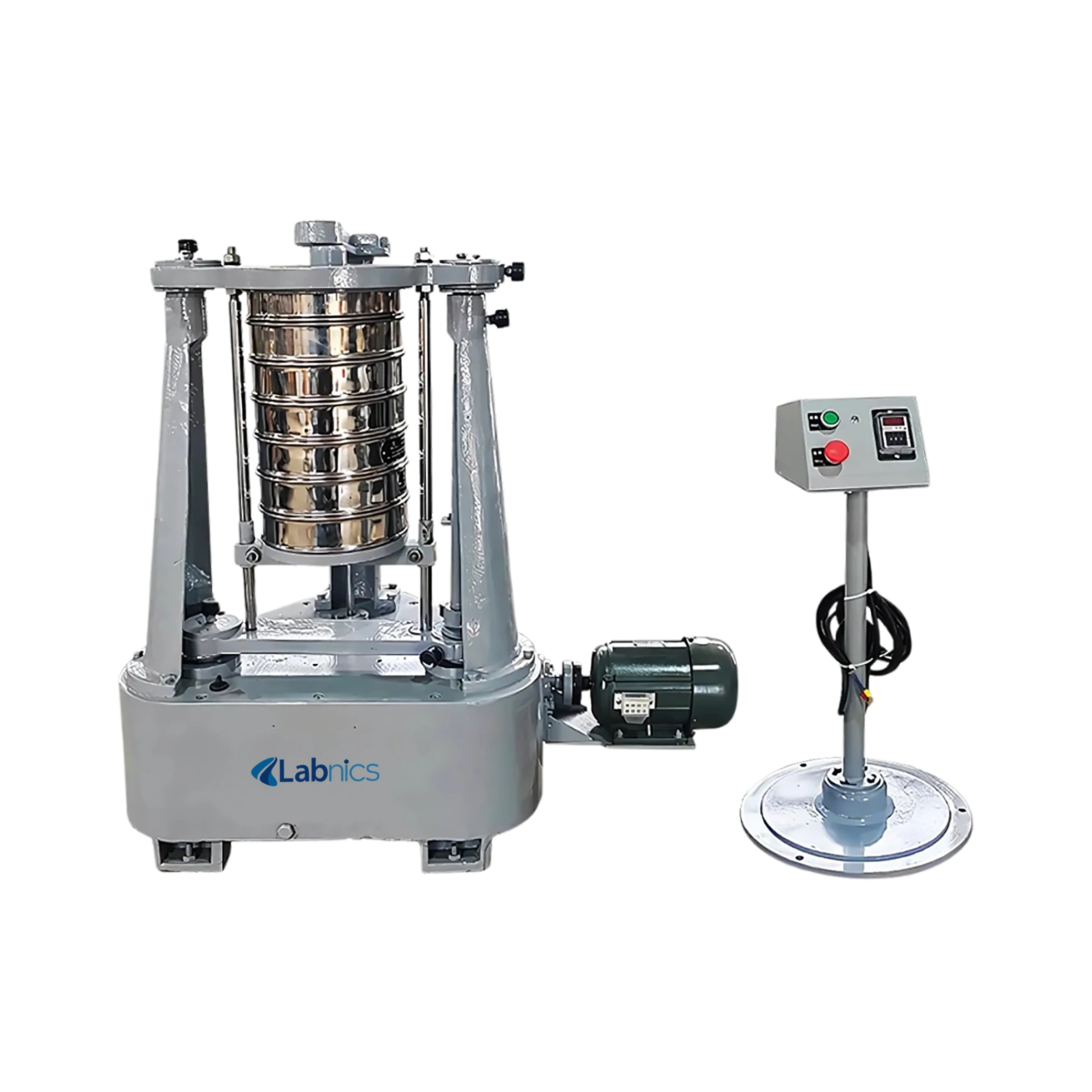

Vertical Tapping Sieve Shaker NVTS-100 maintains stable operation with a shaking speed of 290 and a tapping frequency of 156 times per minute. It offers adjustable screening time for flexible operation. This unit uses horizontal oscillation for consistent and effective screening. It features sturdy construction for long-lasting performance. Our sieve shaker includes a vertical tapping action that improves material separation.
$4,475.00
Specifications
| Sieve Shaking Frequency | 290 times/min |
| Taps Frequency | 156 times/min |
| Tapping Stroke | 38±6 mm |
| Sieve Diameter | 200 mm |
| Sieve Layers | 7 |
| Sieve Mesh | 20 to 200 mesh |
| Motor Speed | 1400 RPM |
| Power Consumption | 0.55 kW |
| Power Supply | 380V/50Hz/3ph |
| Dimension | 900 × 450 × 750 mm |
| Weight | 180 kg |
Features
Applications
Ask Expert
Labnics Vertical Tapping Sieve Shakers utilize horizontal oscillation to support consistent and effective screening performance. They provide adjustable screening time for customized operation. These units come with a compact structure that ensures efficient use of space. They offer vertical tapping action for precise and reliable sieving. Our vertical tapping sieve shaker features a sturdy build for enhanced durability and long-term use.
