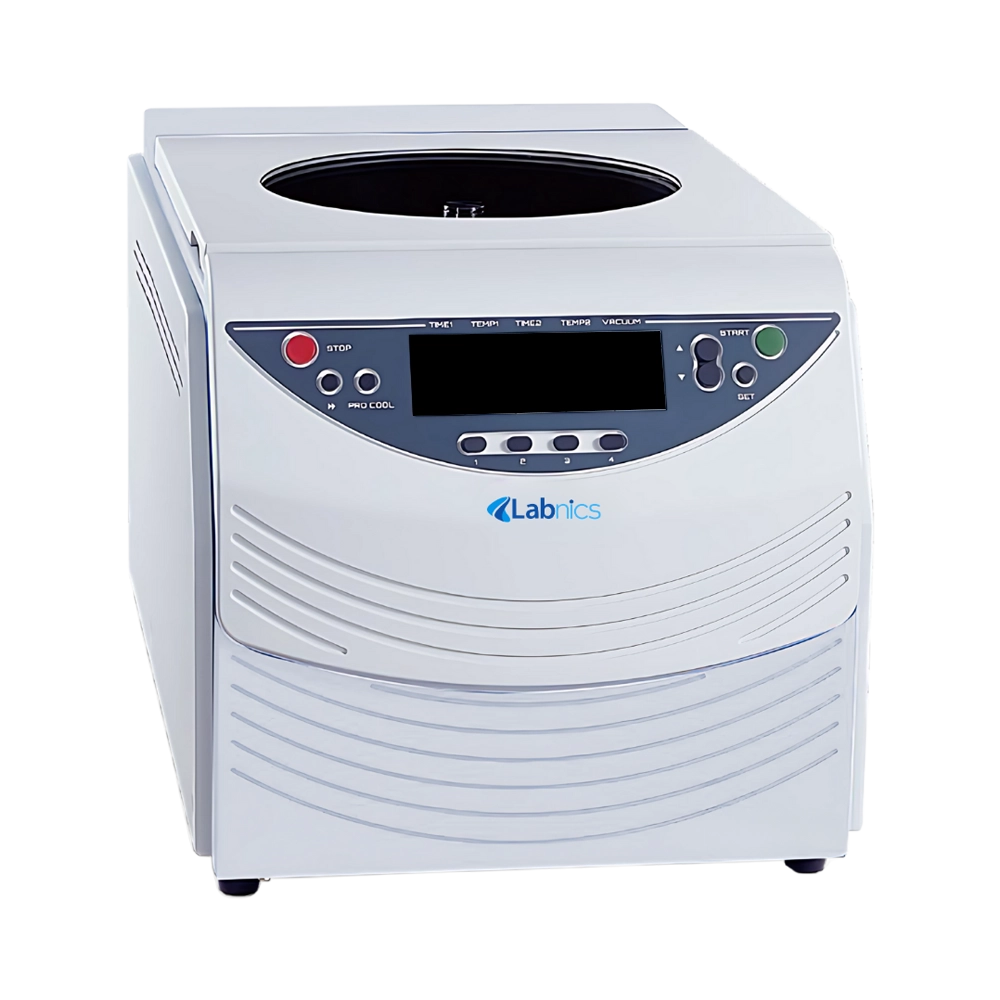

Vacuum Concentrator Centrifuge NVCC-103

Vacuum Concentrator Centrifuge NVCC-103

Vacuum Concentrator Centrifuge NVCC-103 supports a wide speed range from 800 to 2000 rpm for various centrifugation needs. It offers a temperature range of +5°C to 100°C for handling various sample types. This unit features a corrosion-resistant vacuum design for enhanced durability. It includes a centrifugal imaging function for real-time process monitoring. Our centrifuge provides a digital display for clear and precise operation control.


$15,850.00

Catalog

Specifications

Speed range 800 to 2000 rpm
Maximum centrifugal force 650×g
Timer range 1 to 9999 min
Sample chamber precooling function No
Centrifugal imaging function Yes
Temperature control range +5°C to 100°C
Temperature control precision RT±1°C
Ultimate vacuum ≤0.3 mbar
Noise ≤55 dB
Power consumption 1300W
Power supply AC220,50/60Hz 10A
Dimension 481×370×294mm
Net weight 33.5 kg

Features

  • Intelligent control system
  • Program shortcut keys
  • Automatic vacuum release
  • Durable construction
  • Two-stage temperature control
  • High-torque motor

Applications

  • Vacuum Concentrator Centrifuge NVCC-103 is used for efficiently concentrating and drying samples through centrifugal force and vacuum control. It is commonly used in laboratories for chemical, biological, pharmaceutical, and environmental sample processing.

Optional Accessories

Accessory

Description

Quantity

Cold trap (-50°C) 1

Temperature: -50°C

Cold trap capacity: 2000 ml

Coil method: External coil

1

Cold trap (-50°C) 2

Temperature: -50°C

Cold trap capacity: 4500 ml

Coil method: Internal coil

1

Ultralow cold trap (-80°C)

Temperature: -80°C

Cold trap capacity: 4500 ml

Coil method: Internal coil

1

Oil pump

MPS: 4.0 m3/h (66L/min)

Ultimate vacuum: 0.01 mbar

1

Imported diaphragm pump 1

MPS: 2.6 m3/h (43L/min)

Ultimate vacuum: 5 mbar

1

Imported diaphragm pump 2

MPS: 3.3 m3/h (55L/min)

Ultimate vacuum: 2 mbar

1

Organic-resistant oil pump

MPS: 2.5 m3/h (42L/min)

Ultimate vacuum: 0.1 mbar

1

Centrifugal imaging device



1

Rotors Selection

Capacity

Speed Range

Maximum RCM

132×1.5ml

800 to 2000 rpm

650×g

24×5ml + 66×1.5ml

800 to 2000 rpm

650×g

108×5ml

800 to 2000 rpm

650×g

20×10ml (Round bottom)

800 to 2000 rpm

650×g

24×50ml (Conical bottom)

800 to 2000 rpm

650×g

20×15ml (Conical bottom)

800 to 2000 rpm

650×g

10×100ml (Chicken heart bottle)

800 to 2000 rpm

650×g

4×250ml

800 to 2000 rpm

650×g

64×2ml (Loading vials)

800 to 2000 rpm

650×g

10×30/40ml (Penicillin bottle)

800 to 2000 rpm

650×g

2×96ml (ELISA plate)

800 to 2000 rpm

650×g

Ask Expert

FAQ for Vacuum Concentrator Centrifuge NVCC-103

1: Is the Vacuum Concentrator Centrifuge NVCC-103 resistant to corrosion?

Yes, the Vacuum Concentrator Centrifuge features a corrosion-resistant vacuum design, ensuring it remains durable and functional even when handling organic solvents. This makes it ideal for labs that work with a wide variety of chemicals and solvents.

2: How easy is it to use the Vacuum Concentrator Centrifuge?

The Vacuum Concentrator Centrifuge is designed with a user-friendly interface and includes digital displays for clear operation control. With programmable shortcut keys and a customizable program storage system, it's simple to set up and run your experiments with minimal effort.

3: Is the Vacuum Concentrator Centrifuge NVCC-103 noisy during operation?

No, the Vacuum Concentrator Centrifuge operates quietly, with noise levels under 55 dB. This helps maintain a peaceful laboratory environment while still delivering powerful performance.

4: Is the Vacuum Concentrator Centrifuge NVCC-103 suitable for handling sensitive samples?

Yes, the Vacuum Concentrator Centrifuge includes two-stage temperature control to effectively protect sensitive samples from heat damage. With a temperature control range from +5°C to 100°C and a precision of ±1°C, you can be confident that your samples will be safely processed under optimal conditions.

5: How long will this Vacuum Concentrator Centrifuge NVCC-103 last?

With proper maintenance and care, the Vacuum Concentrator Centrifuge can last many years. Its high-quality construction, anti-corrosion components, and robust design are built for long-term use, even in high-throughput labs.

6: How does the vacuum feature benefit the concentration process?

The vacuum lowers the boiling point of solvents, allowing evaporation at lower temperatures. This protects sensitive compounds from heat damage and speeds up the drying process. It’s ideal when working with heat-sensitive or volatile samples.

7: What kind of maintenance is required?

Regular cleaning of rotors and chambers is recommended to keep the device functioning optimally. Many units have removable parts to simplify maintenance, helping extend the lifespan of your centrifuge.

8: Is there any risk of cross-contamination between samples?

The centrifugation process keeps samples stable and separated during concentration, minimizing splashing or mixing. Additionally, many models feature rotors and adapters designed to securely hold samples and prevent cross-contamination.

9: How easy is it to operate the Vacuum Concentrator Centrifuge?

The Vacuum Concentrator Centrifuge is designed with easy-to-use digital controls for quick setup. Its clear display ensures that monitoring the process is simple and hassle-free.


Vacuum Concentrator Centrifuge NVCC-103

Vacuum Concentrator Centrifuge NVCC-103

Related Models Of Vacuum Concentrator Centrifuge

Labnics Vacuum Concentrator Centrifuges utilize vacuum and centrifugal force for efficient solvent evaporation. They have adjustable speed and temperature settings for precise control and reliable performance. These units are equipped with a digital display for real-time monitoring of parameters. They feature a corrosion-resistant chamber for safe and long-lasting operation. Our vacuum concentrator centrifuge supports multiple rotor options for enhanced versatility in sample processing.
