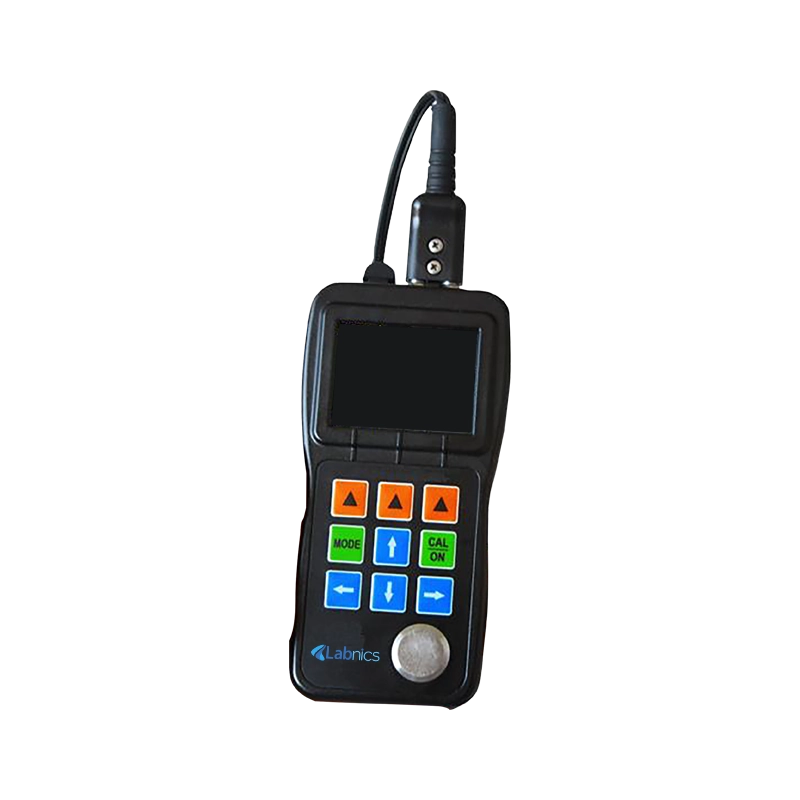

Ultrasonic Thickness Gauge NUTG-101

Ultrasonic Thickness Gauge NUTG-100 is designed with a color screen with A/B-Scan digital metal thickness gauge that is professional in solving various difficult thickness measurements. It is equipped with TC510 probe that uses a high-performance piezoelectric ceramic chip with an integrated metal die-casting shell.

---

$800.00

Buy Now Catalog

Specifications

Display	2.4 inch color OLED
Measuring Range	0.50 mm to 508 mm
Measuring Resolution	Selectable 0.01mm, 0.1mm
Units	Inch or Millimeter
Rectify Mode	RF+, RF-, HALF+, HALF-, FULL
Display mode	Normal, Minimum/Maximum capture, DIFF/RR%, A-Scan, B-Scan
V-path correction	Automatic
Update rate	Selectable 4Hz, 8Hz, 16Hz
Material velocity range	500 to 9999m/s
Alarm settings	Minimum and Maximum alarms. Range of 0.25mm to 508 mm Dynamic waveform color change on alarm
Power requirements	2 AA size batteries
Operating time	Approximately 40 hours
Instrument shut off	Selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity
Operating temperature	(-10℃ to +50℃)
Size (H × W × D)	153mm × 76mm × 37mm
Weight	280 g

Features

• 4 inch color OLED, 320 x 240 pixels, contrast 10,000:1
• Exempt Zero Calibration
• High Stability, the measuring value is not influenced by the probe pressure or the coupling layer
• Thickness and the surface dust of the workpiece
• Zero Drift
• Larger and more convenient storage capacity (20–200 times) than similar products
• Equipped with a standard TC510 probe, which uses a high-performance piezoelectric ceramic chip
• USB 2.0 full speed connector

Applications

• In is widely used in the field of manufacturing operations, metal processing industry, chemical industry, commodity inspection and other testing. It can also measure coated materials such as paint layers on the surface of workpieces.
