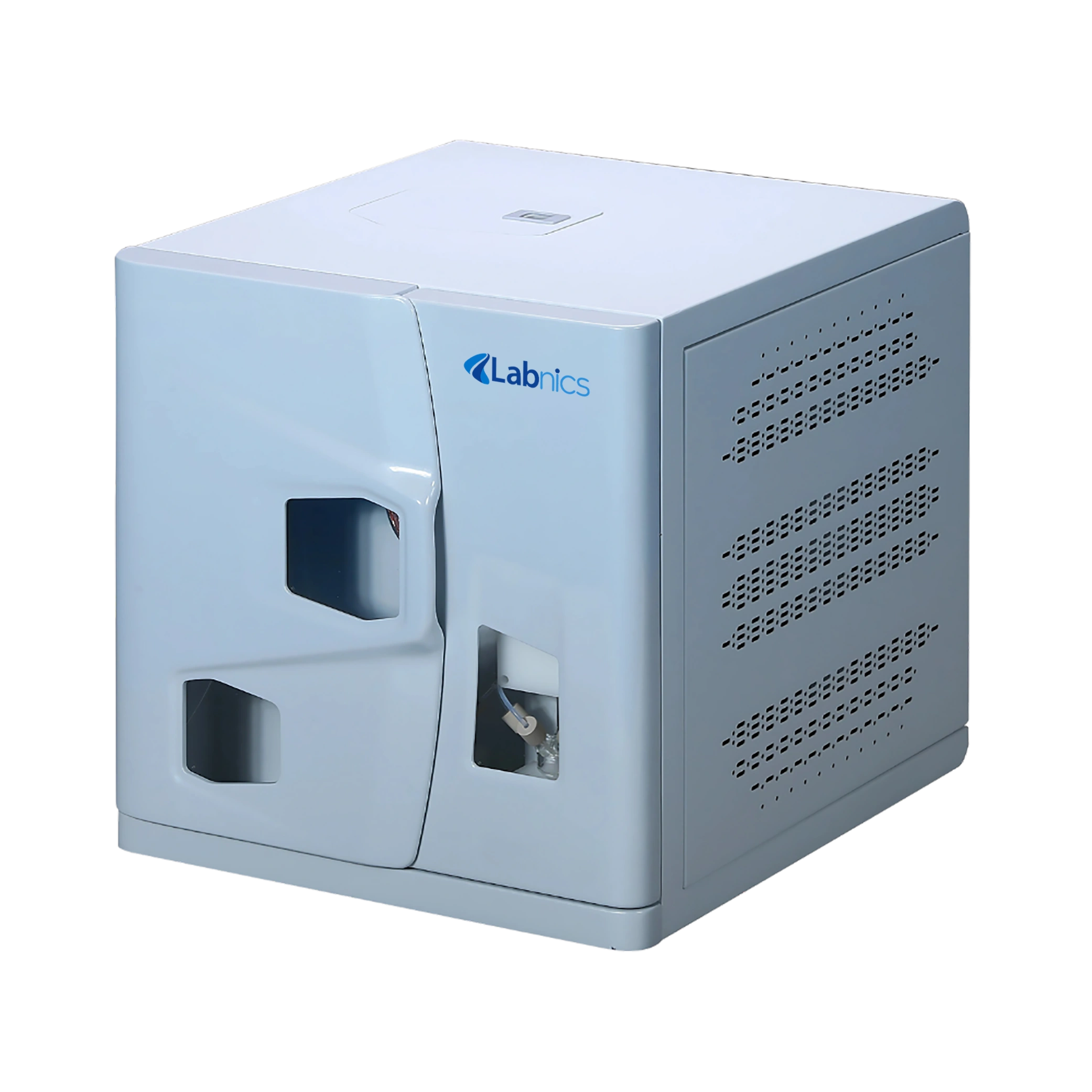

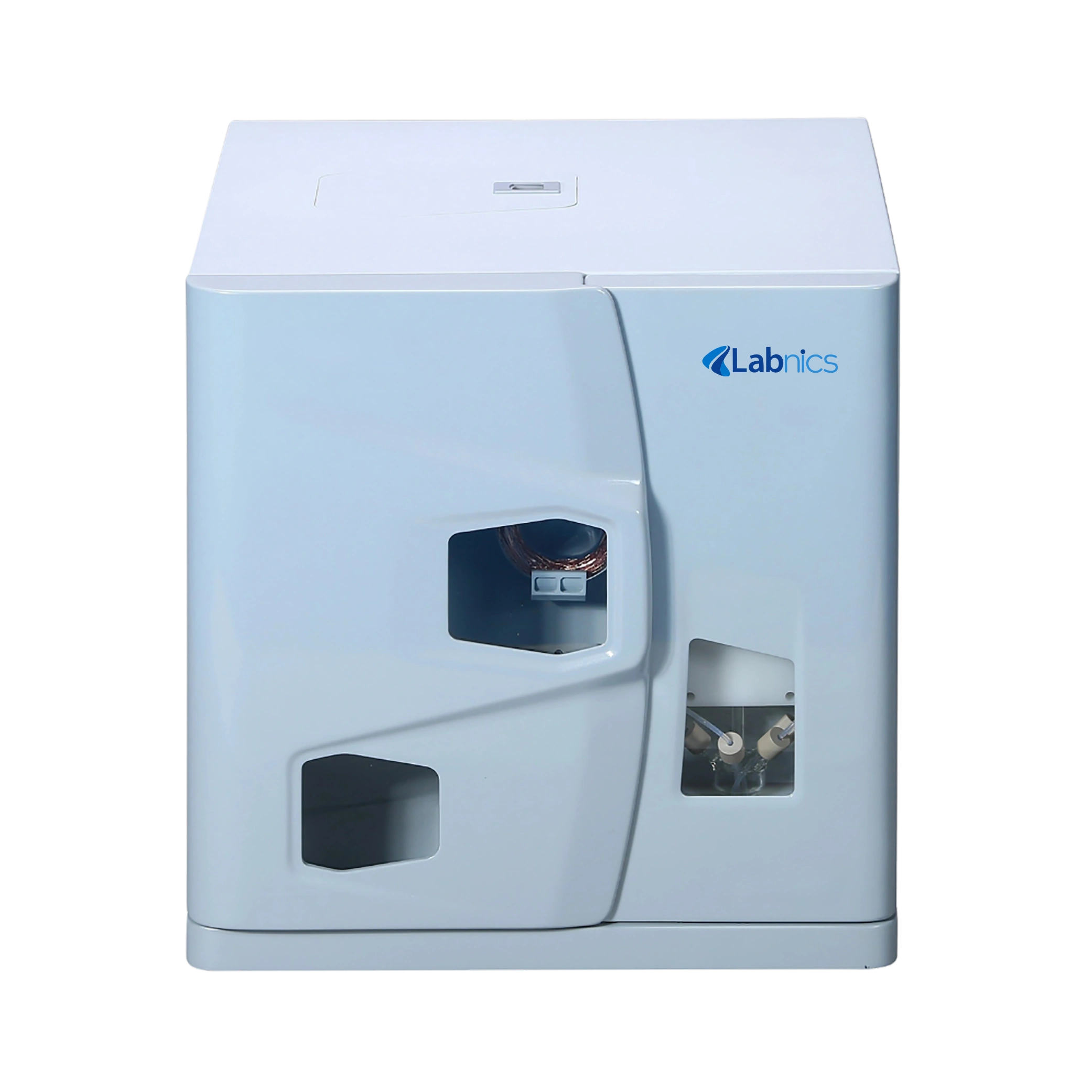

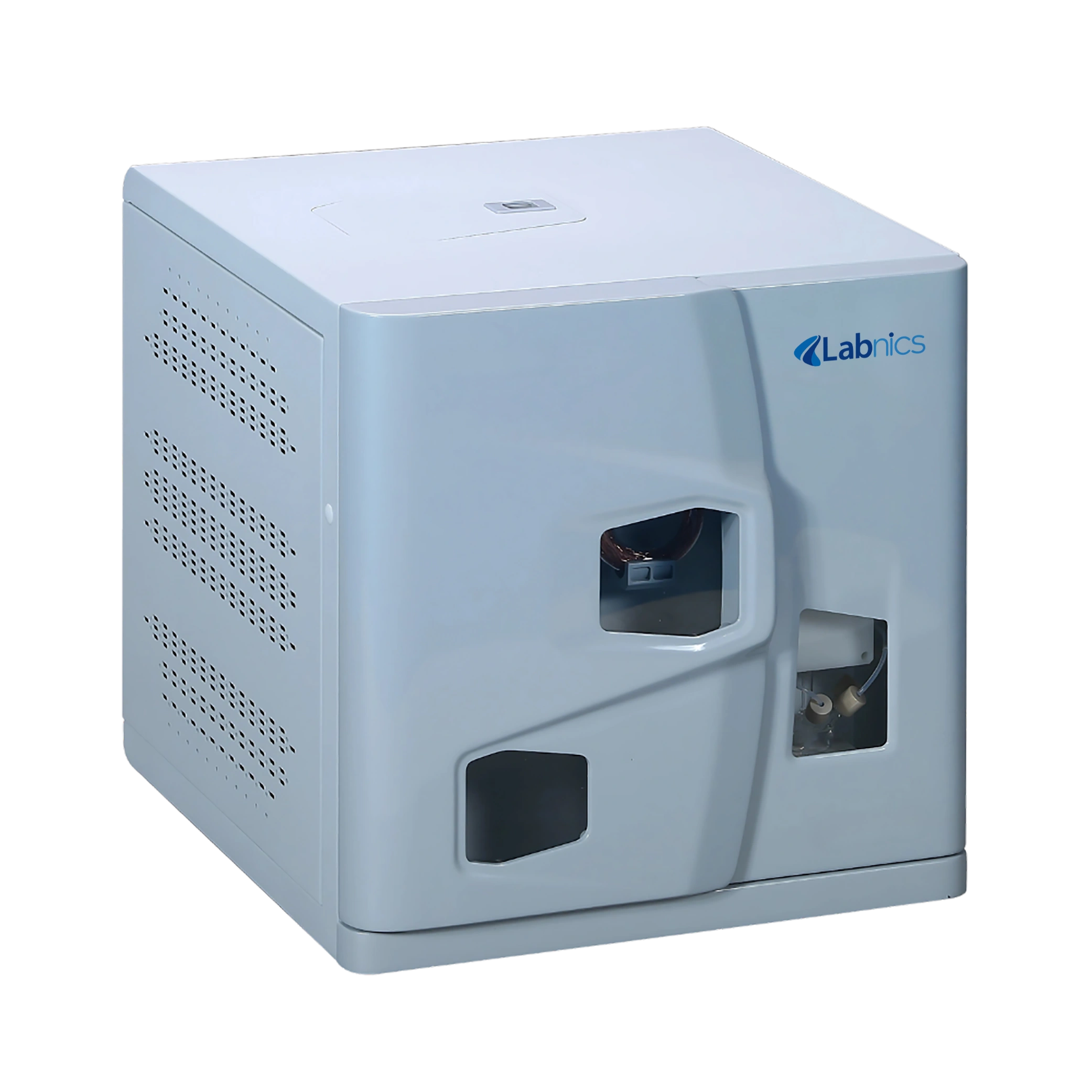

TOC Analyzer NTOC-100

TOC Analyzer NTOC-100 features a detection limit of 20 micrograms per liter with repeatability up to 3%. It provides multi-functional PC software for smooth operation and efficient data handling. This unit has precise gas flow control to enhance accuracy. It uses PID temperature control to ensure stable and reliable performance. Our analyzer is equipped with auto acid addition for consistent sample conditioning.

---

$26,250.00

Buy Now Catalog

Specifications

Measurement Method	High Temperature Catalytic Combustion
Detector	NDIR
Analysis Parameters	TC, TIC, TOC, NPOC
Gas Requirement	Oxygen, purity ≥99.995%
Sample Type	Solid sample (AS-S200 required)
Measurement Range	0 to 1000 mg/L, extendable to 0 to100,000 mg/L (Automatic dilution)
Limit of Detection	IC: 20 µg/L
Measuring Time	IC: approximately 3 minutes
Maximum Permissible Error	IC: ±4%
Repeatability	≤3%
Injection Volume	IC: 100 to 2000 µL
Power Consumption	700 W
Power Supply	AC 110/220V, 50/60Hz

Features

• High-temperature oxidation
• Three-stage dehydration
• Auto gas purging
• Modular design
• Personalized standard curves
• Automatic dilution

Applications

• TOC Analyzer NTOC-100 is used for environmental monitoring, water treatment, and laboratory analysis and can dilute high concentration samples, such as seawater, automatically according to set dilution times for streamlined sample preparation.
