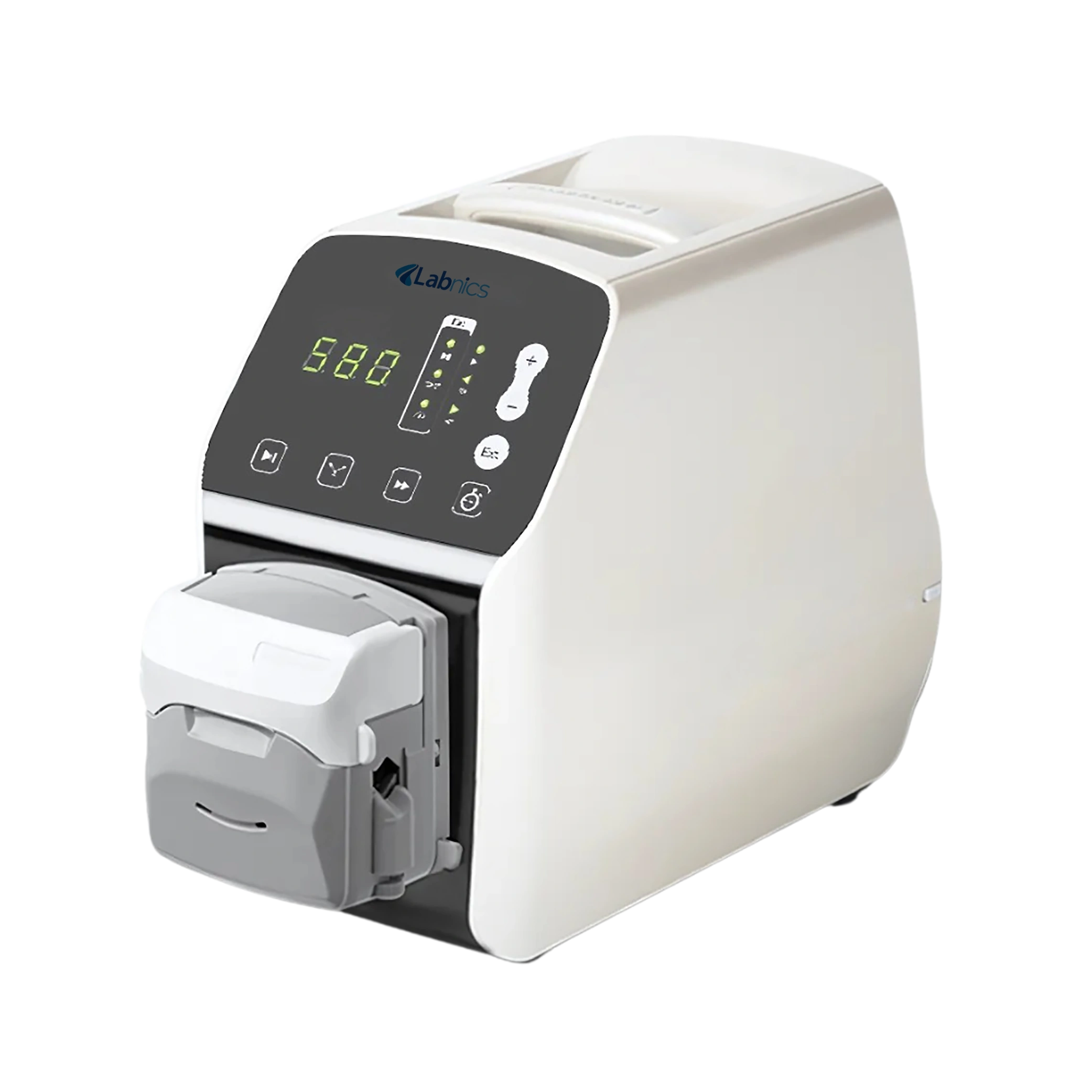

Standard Peristaltic Pump NSPP-201

Standard Peristaltic Pump NSPP-201 offers variable speed control from 0.1 to 350 RPM and a testing time range of 0.5 to 999 seconds. It has an embedded handle with a comfortable grip for easy portability. Our peristaltic pump has a full-speed button for quick filling and emptying functions. It features a 3-digit LED display for motor speed indication. This unit comes with a UV spray coating for added surface protection.

---

$2,825.00

Buy Now Catalog

Specifications

Flow Range	0.0079 to 1766.31 mL/min
Speed Range	0.1 to 350 RPM
Speed Resolution	0.1 RPM (100 RPM), 1 RPM (100 to 600 RPM)
Testing Time Range	0.5s to 999s
Motor type	Closed-loop stepper motor
Temperature Range	0 to 40°C
Relative Humidity	<80%
Control Method	Mechanical Keypad
Keypad Lifespan	300,000 times
Back Suction Angle	0 to 360°
External Control	0 to 5 V, 0 to 10 V, 4 to 20 mA
Communication Interface	RS232/RS485 support MODBUS protocol (RTU mode)
Start/Stop, Direction Signal	Passive switch input (e.g., foot pedal)
Active Switch Signal	Default 5V to 24V active input
Power Consumption	<80 W
Power Supply	AC 220V±10%, 50Hz/60Hz
Dimension	259 × 157 × 237 mm
Weight	4.40 kg

Features

• Compact structure
• Multiple external control modes
• Timing function
• ABS plastic shell
• Integrated touch pen

Applications

• Standard Peristaltic Pump NSPP-201 suits university laboratories, ion chromatography setups, and titration systems. It is also used in industrial production processes requiring accurate fluid handling.

Standard Accessories

Silicone tubing (2 meters)

Operation manual × 1 pc

Power cable × 1 pc
