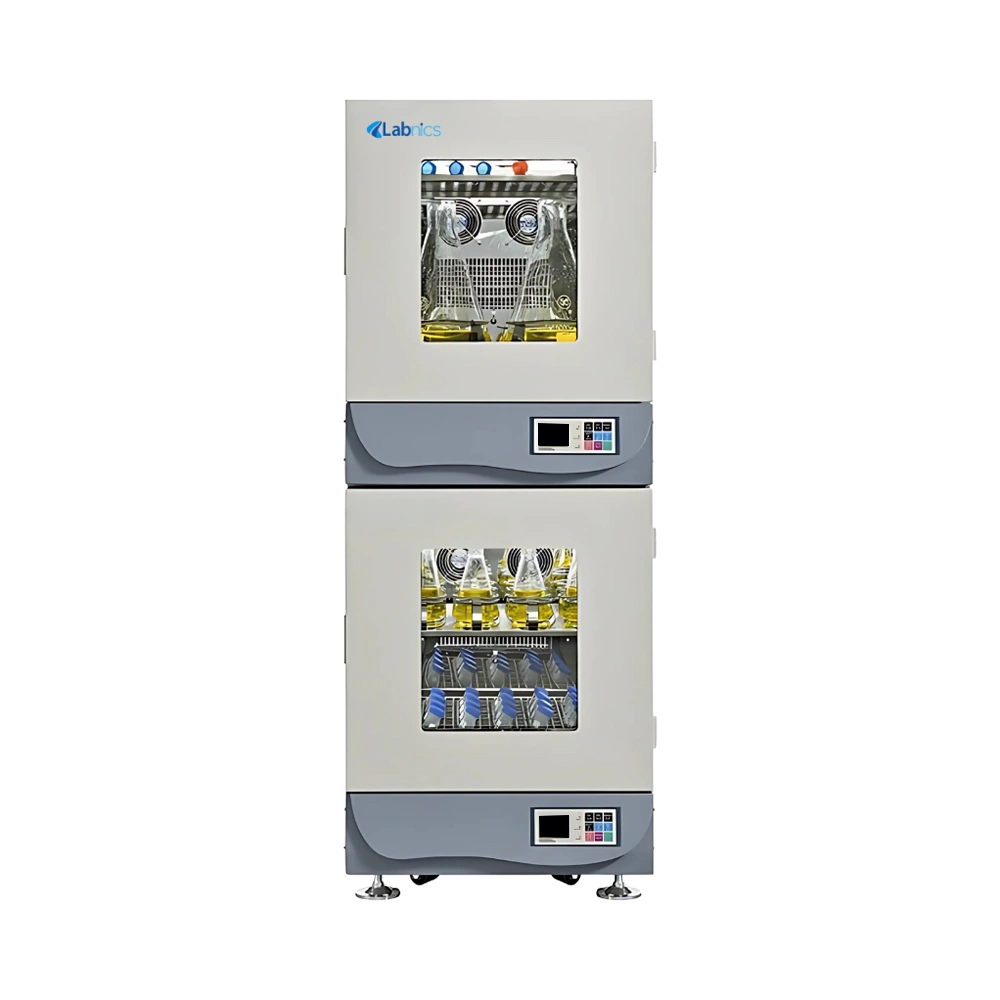

Stackable Shaker Incubator NSSI-200 offers a spacious internal capacity of 165 liters to accommodate various laboratory needs. It is designed with a single tray for secure sample placement. This unit provides an adjustable rotation speed ranging from 30 to 300 rpm. It operates with a microcomputer control system that delivers precise regulation. Our incubator includes an LCD screen that enables multi-parameter display and easy monitoring.
$5,013.00
Specifications
| Door opening method | Front-opening door |
| Capacity | 165 liters |
| Internal usable height | 533 mm |
| Maximum loading capacity | 5000ml×4 1000ml×9 500ml×16 250ml×25 100ml×39 50ml×48 |
| Tray quantity | 1 |
| Temperature range | 4 to 60°C (Ambient temperature-15°C, minimum 4°C) |
| Temperature accuracy | ±0.1°C |
| Temperature uniformity | ±1°C at 37°C |
| Ambient temperature range | 5 to 35°C |
| Temperature editing | Repeat/Pace/8-segment curve editing |
| Rotation way | Rotary/reciprocating switchable |
| Rotation speed | 30 to 300 rpm |
| Rotation accuracy | ±1 rpm |
| Throw | 25mm (50mm or 0 to 50mm adjustable) |
| Timing range | 0 to 999.59H |
| Display | LCD |
| Control | P.I.D microcomputer |
| Circulation | Forced circulation convection |
| Drive mode | Single-axis balanced drive |
| Tray/chamber material/Flask clamp | Stainless steel type 304 |
| Decontamination method | UV sterilization |
| Illumination/UV lamp | 8W/8W |
| Bearings | Original imported double row bearings |
| Compressor | Variable frequency compressor |
| Stackable quantity | 1 layer / 2 layers |
| Clamp types | Stainless steel flask clamp, plastic clamp, spring, test tube rack, sticky plate, ELISA plate |
| Heating power | 800W |
| Cooling power | 334W |
| Motor power | 80W (High-quality servo motor) |
| Power supply | 220V±10%, 50/60Hz |
| Tray size | 480×440mm |
| Incubation shelf | 550×380mm |
| Internal dimension | 560×520×565mm |
| External dimension | 650×845×810mm |
| Net weight | 205 kg |
Features
Applications
Ask Expert
FAQ for Stackable Shaker Incubator NSSI-200
1: How does the Stackable Shaker Incubator NSSI-200 help save space in the laboratory?
Our Stackable Shaker Incubator is built with a stackable design that allows placement in either a single or double layer. It makes efficient use of laboratory space without compromising performance or capacity.
2: How efficient is its airflow and circulation system?
The Stackable Shaker Incubator operates with forced circulation convection, which ensures uniform airflow throughout the chamber. It maintains a consistent temperature distribution for reliable experimental results.
3: What is the best way to maintain the stainless-steel chamber and tray?
It is best to clean the stainless-steel parts with non-abrasive cleaning agents to avoid scratches. It is also important to dry the surfaces after cleaning to prevent corrosion or water stains.
4: What precautions should be taken with the glass door?
Our Stackable Shaker Incubator should always be handled carefully since it is a double-layer tempered glass door. It should be kept clean and checked for any cracks or damage to ensure safety and insulation performance.
5: Is professional servicing required for this Stackable Shaker Incubator NSSI-200?
It is recommended to have the unit professionally serviced at regular intervals to ensure all components are functioning correctly. It helps in extending the lifespan of the compressor, drive system, and electronic controls.
Labnics Stackable Shaker Incubators feature adjustable shaking speeds for uniform mixing. They have a stackable design that maximizes lab space while increasing capacity. These incubators are user-friendly, with push-button LED displays for easy operation. Our units include UV sterilization for efficient disinfection, ensuring a clean and sterile environment. They also contain a stainless-steel incubation chamber for enhanced corrosion resistance.
