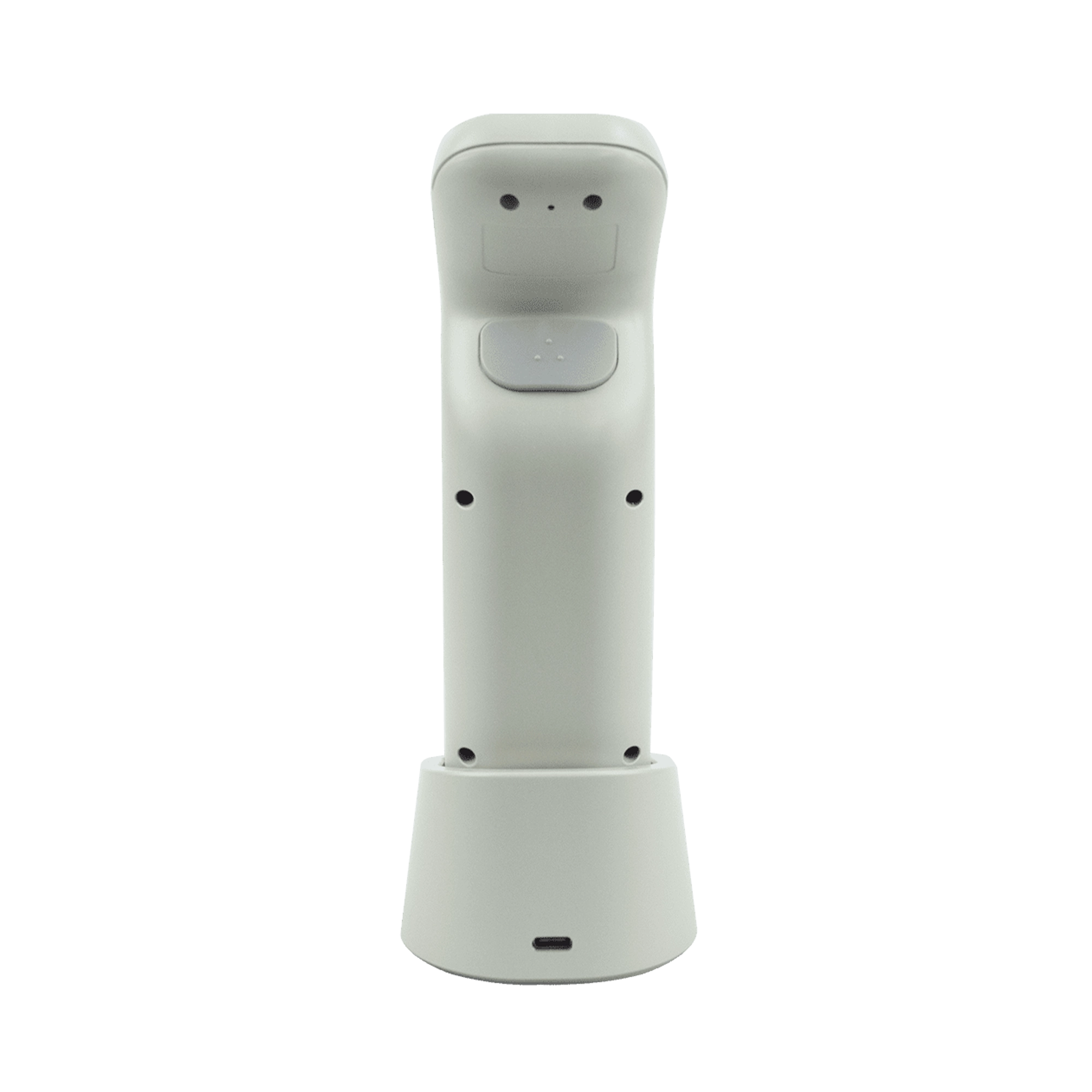

Colorimeter NCC-108

Colorimeter NCC-108 features three measuring apertures, allowing for flexible color measurements. It uses a built-in high-definition camera to provide a clear visual representation of the measured area. This colorimeter offers an advanced full-band balanced LED light source integrated with UV for precise reading. It includes intelligent automatic calibration to ensure long-term accuracy and stability. Our unit has a full-color 2.4-inch display, making it easy to read and interpret results.

---

$1,438.00

Buy Now Catalog

Specifications

Measuring aperture	Three: Φ11mm, Φ6mm, Φ3mm
Measuring geometry	D/8, SCI
Light source	Full-band balanced LED light source + UV
Sensor	Silicon photodiode array double 16 groups
Repeatability	ΔE × ab ≤ 0.03
Display resolution	0.01
Measurement time	About 1 second
Accuracy	Metrology level 1
Observer angles	2°, 10°
Spectroscopic method	Nanometer-integrated spectral device
Sphere size	40mm
Wavelength interval	10nm
Wavelength range	400 to 700nm
Reflectance range	0 to 200%
Reflectivity resolution	0.0001
Measurement index	Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy, RGB, Colour difference (ΔE×ab, ΔE×cmc, ΔE×94, ΔE ×100), WI (ASTM E313-00, ASTM E313-73, CIE, ISO2470/R457, AATCC, Hunter, TaubeBergerStensby), YI (ASTM D1925, ASTM E313-00, ASTM E313-73), Blackness (My, dM), Colour Fastness, Tint, (ASTM E313-00), Colour Density CMYK (A, T, E, M), Milm, Munsell, Opacity, Colour Strength
Illuminants	A, B, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CWF, U30, U35, DLF, NBF, TL83, TL84, ID50, ID65, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2
Measurement method	Single measurement, average measurement (2 to 99 times)
Measurement and observation mode	Camera
Calibration	Intelligent automatic calibration
Software	Android, iOS, Windows, WeChat app
Standards	CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
Interface	USB, Bluetooth
Screen	Full-color screen of 2.4 inches
Battery capacity	Rechargeable, 8000 times continuous tests, 3.7V/3000mAh
Light source lifetime	10 years, 1 million tests
Storage	Instrument: 100 standard samples and 10000 samples; APP: mass storage

Features

• Supports multiple color indices
• High-quality sensor array
• USB and Bluetooth connectivity
• Compatible with Android, iOS apps
• Meets international color standards
• Built-in storage for data
• High durability and long light source life
• User-friendly touchscreen controls

Applications

• Colorimeter NCC-108 is used to provide accurate and consistent color measurements, ensuring precise control over color-related attributes. It is used across a wide range of industries, including textiles, printing, automotive, packaging, cosmetics, paints, plastics, food, pharmaceuticals, and electronics.
