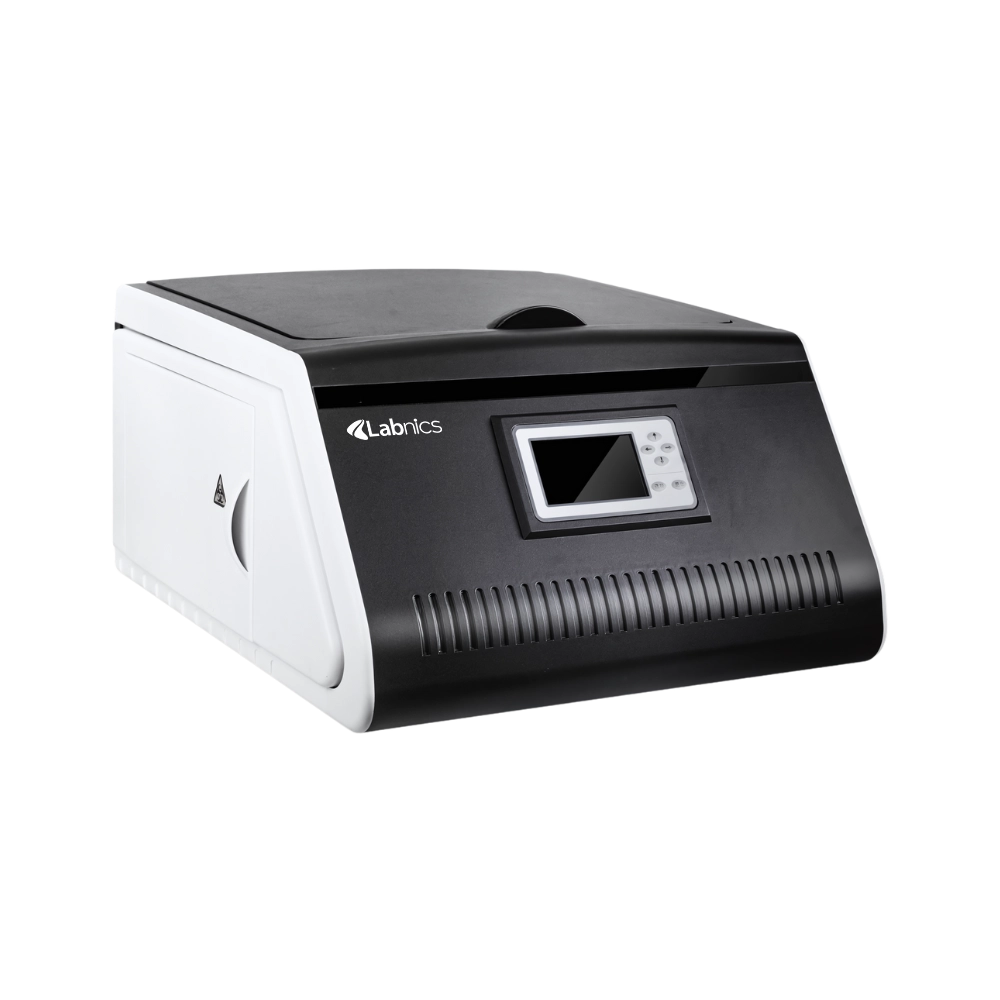

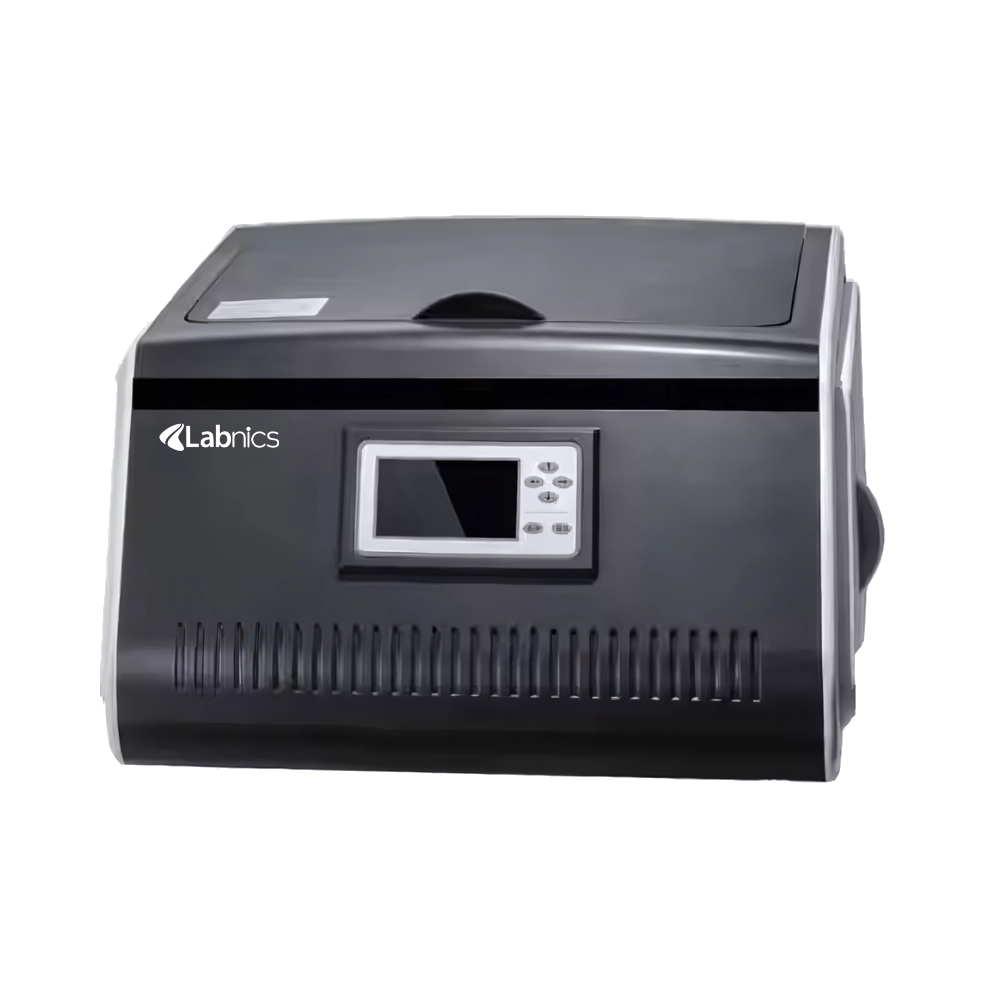

Automatic Slide Stainer NASS-501 supports 16-slide Gram staining batches in 10 minutes with preset timing and uniform chemical steps. This system maintains uniform dye distribution by controlling exposure duration and slide contact. It prevents cross-contact through slide separation and guided positioning during operation. It minimizes chemical usage with efficient reagent flow and enclosed fluid pathways. Our stainer delivers steady high-throughput performance with minimal user handling.
$15,750.00
Specifications
| Staining Type | Gram Staining |
| Staining Speed | 16 slides / 10 minutes |
| Centrifugation Speed | 350 r/minute |
| Ambient Temperature | 10℃ to 30℃ |
| Atmospheric Pressure | 76 kPa to 106 kPa |
| Altitude | ≤2000 m |
| Humidity | 20℃ to 80℃ |
| Power Supply | AC 220V±22V, 50/60 Hz |
| Dimensions (W×D×H) | 700 × 800 × 480 mm |
| Weight | 39 Kg |
Features
Applications
Ask Expert
FAQ for Automatic Slide Stainer NASS-501
1: Does the Automatic Slide Stainer NASS-501 allow adjustment of reagent exposure time?
Yes, the Automatic Slide Stainer supports pre-programmed timing control for each reagent step. Users can fine-tune exposure intervals based on slide preparation needs. This flexibility ensures precise and repeatable results. Timing presets reduce variation across multiple runs.
2: How does the Automatic Slide Stainer indicate the completion of a staining cycle?
The Automatic Slide Stainer uses both audio and visual alerts once a cycle is finished. An indicator on the display confirms process completion. This helps avoid delays in post-staining tasks. The alert system ensures users are notified immediately.
3: Is the interface designed for easy operation and setup?
Our Automatic Slide Stainer features a clearly labeled control panel with guided input steps. Users can start, stop, and monitor cycles with minimal navigation. Menu options are organized for quick access. It’s built to accommodate users of all experience levels.
4: Can the device track how many slides have been processed?
Labnics Automatic Slide Stainer includes a cycle count function to monitor slide batches over time. This tracking helps with workflow management and usage reporting. It’s useful for both inventory planning and maintenance scheduling. The data can be accessed directly from the system interface.
5: What mechanisms are in place to prevent reagent overflow?
A built-in overflow channel is positioned below the slide tray. This feature redirects excess fluid safely away from internal parts. It helps maintain a clean workspace and protects system electronics. It also minimizes cleanup between cycles.
Labnics Slide Stainers are designed to automate the entire staining workflow for standardized and reproducible results. They are capable of staining multiple slides simultaneously, improving efficiency. These units come with pre-programmed protocols for rapid and easy startup. They feature intuitive touchscreen displays for simple operation. Our slide stainers are made of durable and corrosion-resistant materials for long-lasting use.
