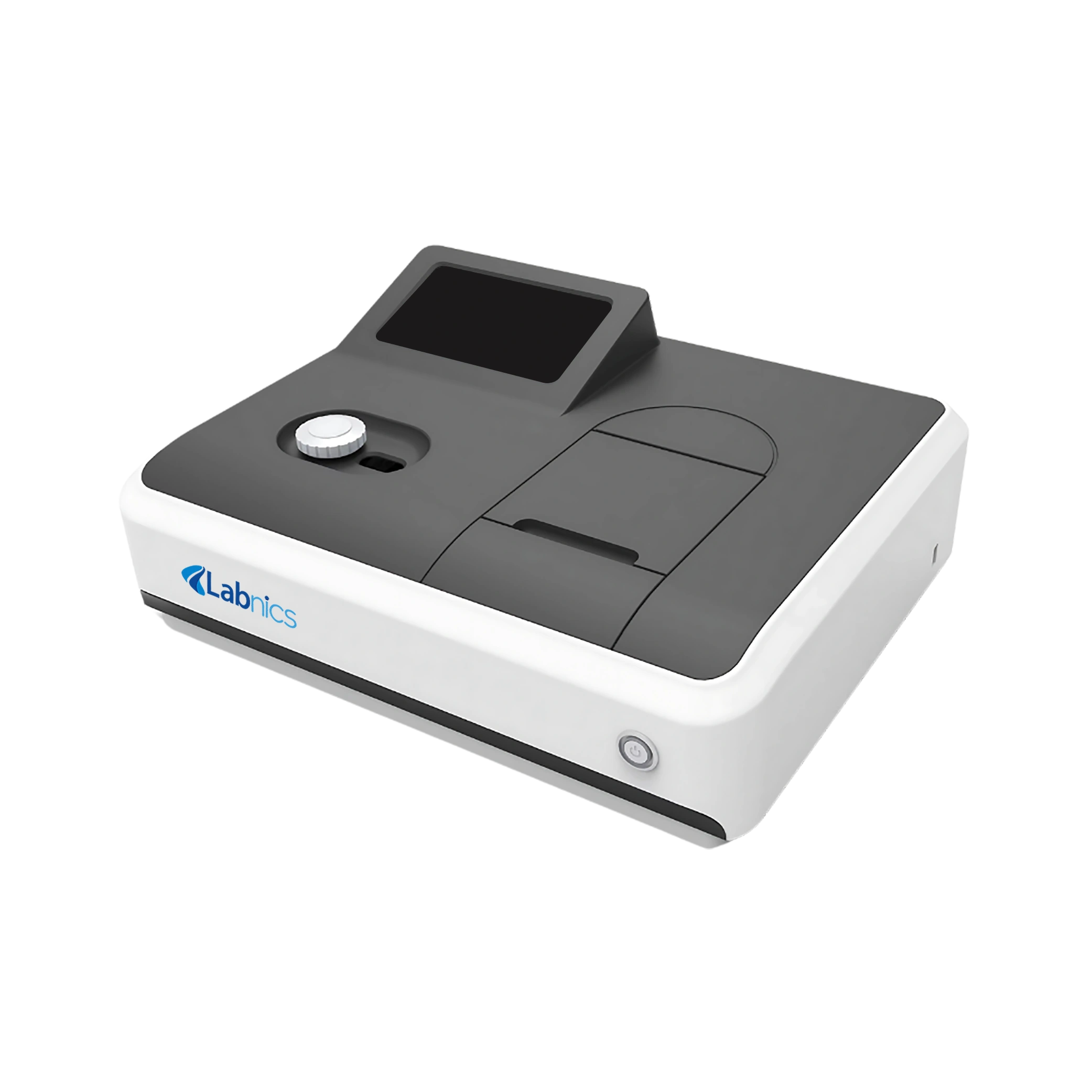

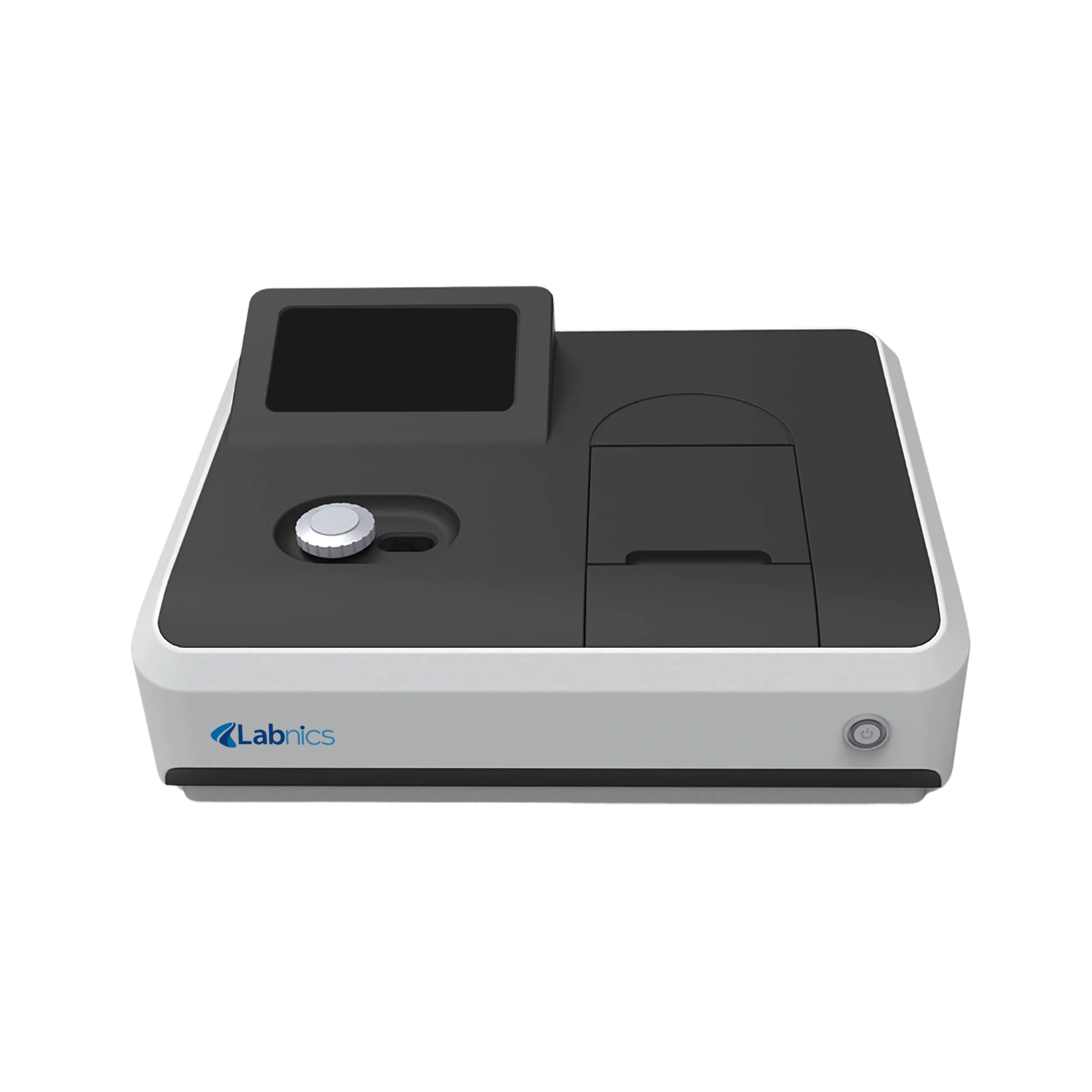

Single Beam UV-Vis Spectrophotometer NSUVS-200 covers a wavelength range from 190 to 1020 nm for comprehensive UV-Visible analysis. It maintains a wavelength accuracy of ±2 nm to ensure precise measurements. This unit allows manual wavelength setting for flexible scanning control. It employs tungsten and deuterium lamps to deliver stable, full-spectrum illumination. Our spectrophotometer includes a high-resolution 7-inch touch screen for smooth and intuitive operation.
±0.5%T, 0.004Abs (0 to 0.5A), 0.008Abs (0.5 to 1A)
Photometric repeatability
±0.5%T, 0.004Abs (0 to 0.5A), 0.008Abs (0.5 to 1A)
Stray light
≤0.15%T at 360nm
Stability
±0.002A at 500nm, 3 mins
Noise
≤0.15%T
Working mode
T, A, C, E
Wavelength setting
Manual
Light source
Tungsten lamp / Deuterium lamp
Display
7-inch touch screen
Communication
USB(A) for data transfer, USB(B) for PC software, and Bluetooth
Power supply
AC220V/50 to 60Hz, AC110V/60Hz
Packaging dimension
520×450×300 mm
Weight
9 kg
Features
User-friendly interface
Stable optical system
Low stray light
High photometric accuracy
Large data storage
USB data transfer
Holographic grating
Applications
Single Beam UV-Vis Spectrophotometer NSUVS-200 is used for measuring the absorbance and transmittance of liquids to determine the concentration of substances. It is commonly used in laboratories for applications in pharmaceuticals, environmental testing, food safety, and biochemical research.
Standard Accessories
Glass cuvettes (10mm)- 4pcs
Quartz cuvettes (10mm)- 2pcs
4 position 1 cm cell holder
Power cable
USB
Optional Accessories
Manual 4-position 5cm cell holder
Manual 4-position 10cm cell holder
Tube rack
Ask Expert
FAQ for Single Beam UV-Vis Spectrophotometer NSUVS-200
1: How often should the Single Beam UV-Vis Spectrophotometer NSUVS-200 be cleaned?
Regular cleaning of the exterior and optical components is recommended, ideally once every few weeks or after heavy use. Keeping the optical path free of dust and smudges ensures accurate and reliable measurements.
2: What kind of optical system does the Single Beam UV-Vis Spectrophotometer NSUVS-200 use?
The Single Beam UV-Vis Spectrophotometer NSUVS-200 uses a single-beam optical system, which is simple, reliable, and cost-effective. This setup is ideal for routine laboratory analyses and ensures ease of maintenance.
3: How can data be transferred from the Single Beam UV-Vis Spectrophotometer NSUVS-200?
The Single Beam UV-Vis Spectrophotometer NSUVS-200 includes a standard USB port for easy data export in Excel format. It also offers Bluetooth connectivity for printer support and optional PC software for extended analysis capabilities.
Labnics Single Beam UV-Vis Spectrophotometer provides precise wavelength control for accurate and reliable analytical results. They are equipped with digital displays for clear and accurate viewing of measurement results. These units have a compact and lightweight design for easy placement and portability. They offer USB connectivity for convenient data transfer and integration with external devices. Our spectrophotometers offer a wide absorbance range for reliable analysis of varying sample concentrations.
