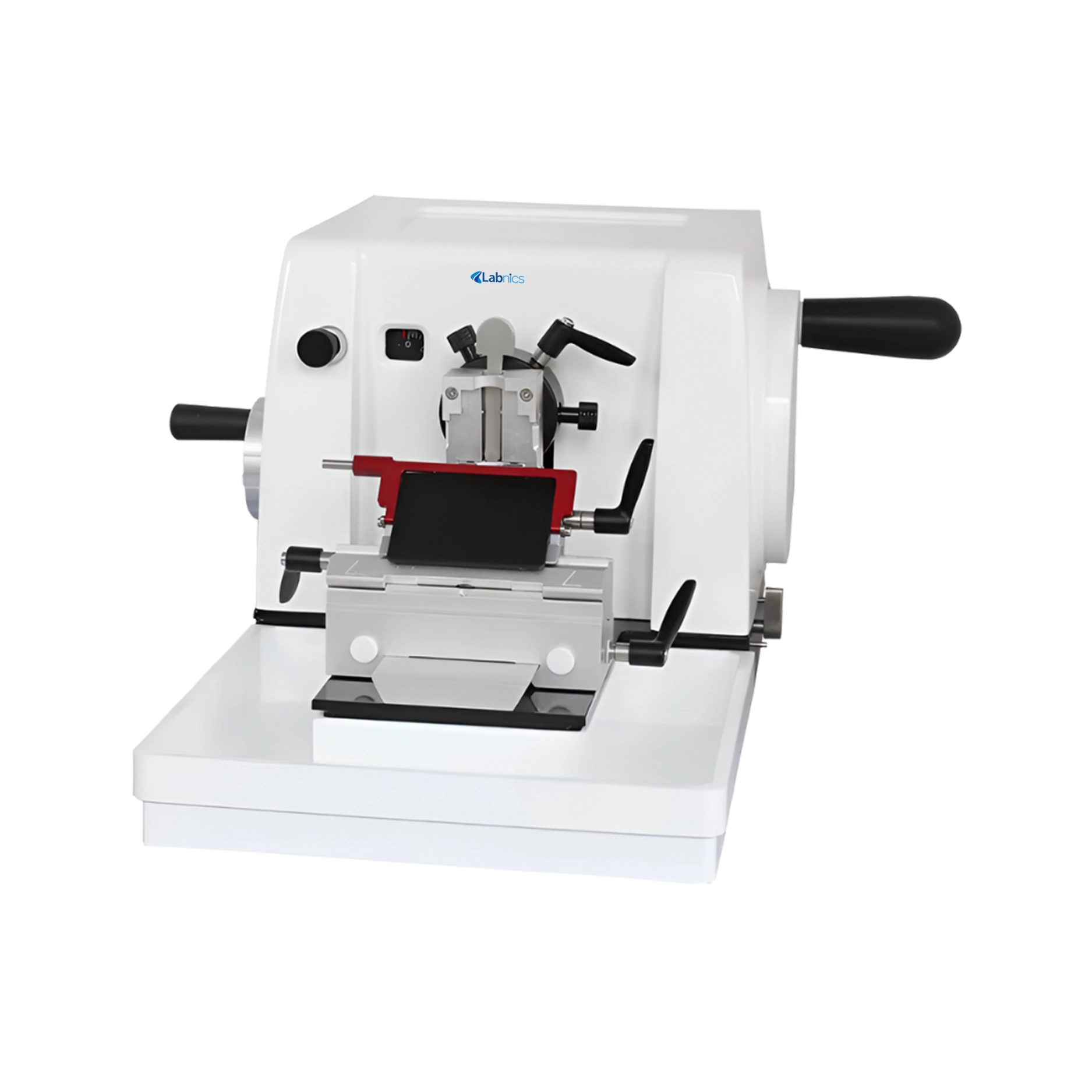

Rotary Microtome NRME-100 offers a section thickness range from 0 to 60 µm, allowing flexibility for various needs. It enables the adjustment of the blade holder angle from 0° to 10° for precise cutting. This unit features a specimen-orienting system for smooth positioning. It provides a double safety mechanism that prevents accidental movement and enhances security. Our microtome includes a right-side handwheel that locks in any position for stability and accuracy.
$4,413.00
Specifications
| Section thickness range | 0 µm to 60 µm |
| Section thickness range setting | 0 to 2 µm in 0.5 µm increments 2 to 10 µm in 1 µm increments 10 to 20 µm in 2 µm increments 20 to 60 µm in 5 µm increments |
| Specimen’s horizontal stroke | 20mm |
| Specimen’s vertical stroke | 50mm |
| Specimen’s maximum size | 50×45mm |
| Slip precision | ± 5% |
| Specimen adjustment direction | Horizontal 8°, vertical 8° |
| Specimen adjustment rotation | 360° |
| Movement range of blade holder base | Front and back ±25mm Left and right ±25mm |
| Blade holder angle | 0 to 10° |
| Dimension | 500 × 480 × 280 mm |
| Packaging dimension | 520 × 520 × 450mm |
| Net weight | 30kg |
| Gross weight | 41 kg |
Features
Applications
Ask Expert
Labnics Rotary Microtomes provide ultra-thin sectioning of tissues for detailed microscopic analysis. They are equipped with a high-precision handwheel that ensures smooth rotary movement. These units feature an adjustable cutting angle to accommodate different tissue densities. They are built from high-quality materials for longevity and corrosion resistance. Our microtomes include a removable section waste tray for easy disposal of debris.
